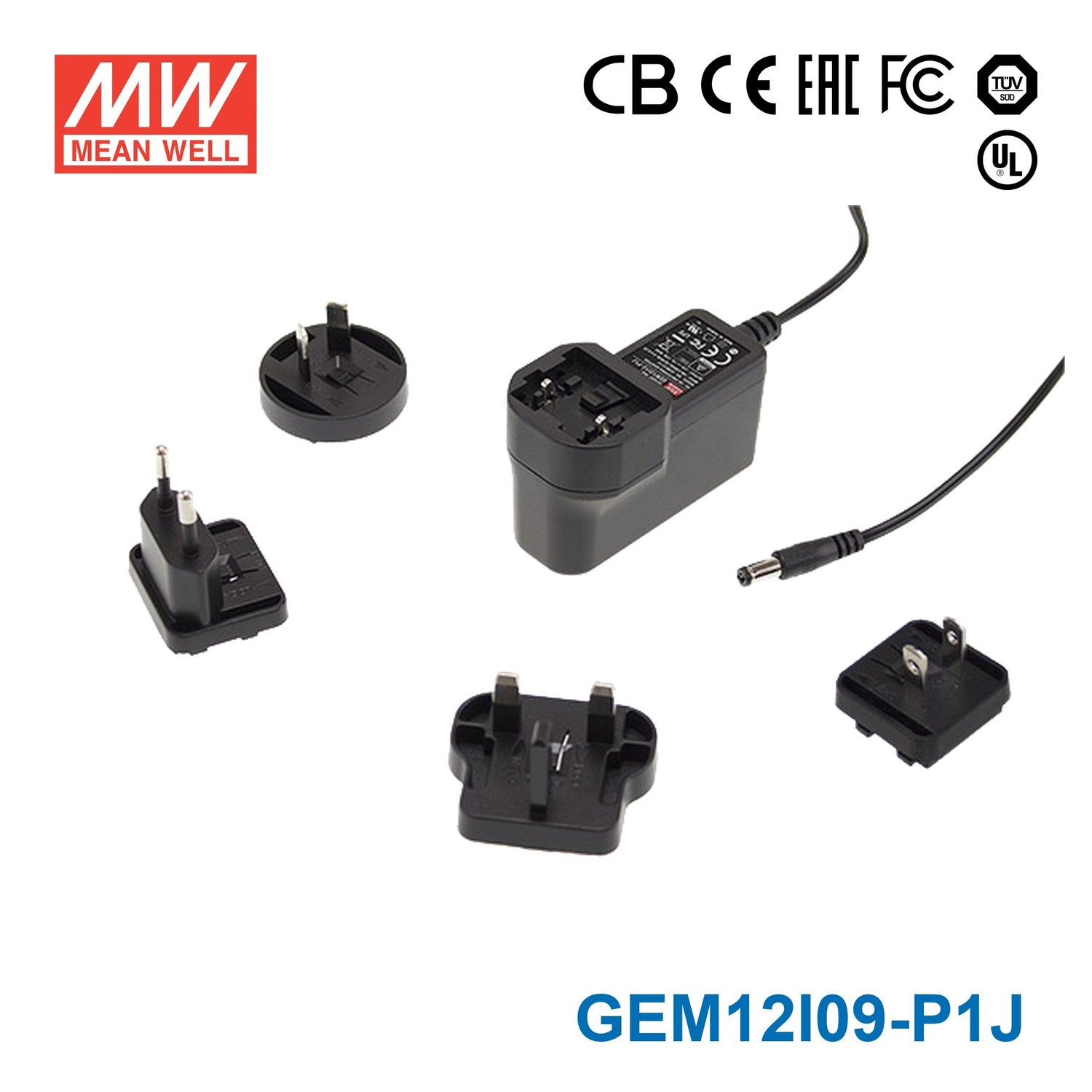

Mean Well GEM12I09-P1J Power Supply 12W 9V
Description
Description
The GEM12I09 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current1.33 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM12I09-P1J to power a 9V industrial control or measurement device?
Yes, if the equipment needs a constant 9V DC input and draws no more than 1.33A. With 12W available, it fits small 9V electronics and instruments rather than larger 9V loads.
Is this 9V adapter suitable for embedded systems that require a regulated 9V supply?
It is suitable for embedded hardware that is designed for constant 9V operation and remains within the 1.33A output limit. Buyers should confirm both voltage match and total power draw before using it.
Can this model be used for low-power automation accessories that run on 9V?
Yes, for low-power automation or monitoring accessories that require constant 9V DC and do not exceed 12W. The current ceiling is 1.33A, which sets the practical limit for the connected load.
How do I check whether my 9V device is compatible with this power supply?
Your device should require constant 9V DC and stay within 1.33A and 12W. If it needs a different voltage or more power than that, this model is not the correct match.
What is the difference between the GEM12I09-P1J and the other GEM12I09 versions?
The listed siblings are the same GEM12I09 family offered in different regional plug versions, including Euro, mixed, Australia, US, and UK variants. This unit's provided electrical specs are 9V, 1.33A, and 12W, and the sibling list does not indicate a different power class within that group.
Is the GEM12I09-P1J intended for indoor use or exposed environments?
The operating temperature range is -20°C to +70°C, which supports use across a broad temperature span. No IP rating is shown in the provided specs, so the available information does not support claiming outdoor or weather-exposed suitability.
Other GEM12 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM12I48-P1J Power Supply 12W 48V | 12W | 48V | 0.25A | Indoor | $17.68 | View |
| Mean Well GEM12I24-P1J Power Supply 12W 24V | 12W | 24V | 0.5A | Indoor | $15.82 | View |
| Mean Well GEM12I18-P1J Power Supply 12W 18V | 12W | 18V | 0.66A | Indoor | $17.68 | View |
| Mean Well GEM12I15-P1J Power Supply 12W 15V | 12W | 15V | 0.8A | Indoor | $15.37 | View |
| Mean Well GEM12I12-P1J Power Supply 12W 12V | 12W | 12V | 1A | Indoor | $17.60 | View |
| Mean Well GEM12I07-P1J Power Supply 12W 7.5V | 12W | 7.5V | 1.6A | Indoor | $17.68 | View |
| Mean Well GEM12I05-P1J Power Supply 12W 5V | 12W | 5V | 2.4A | Indoor | $17.60 | View |
