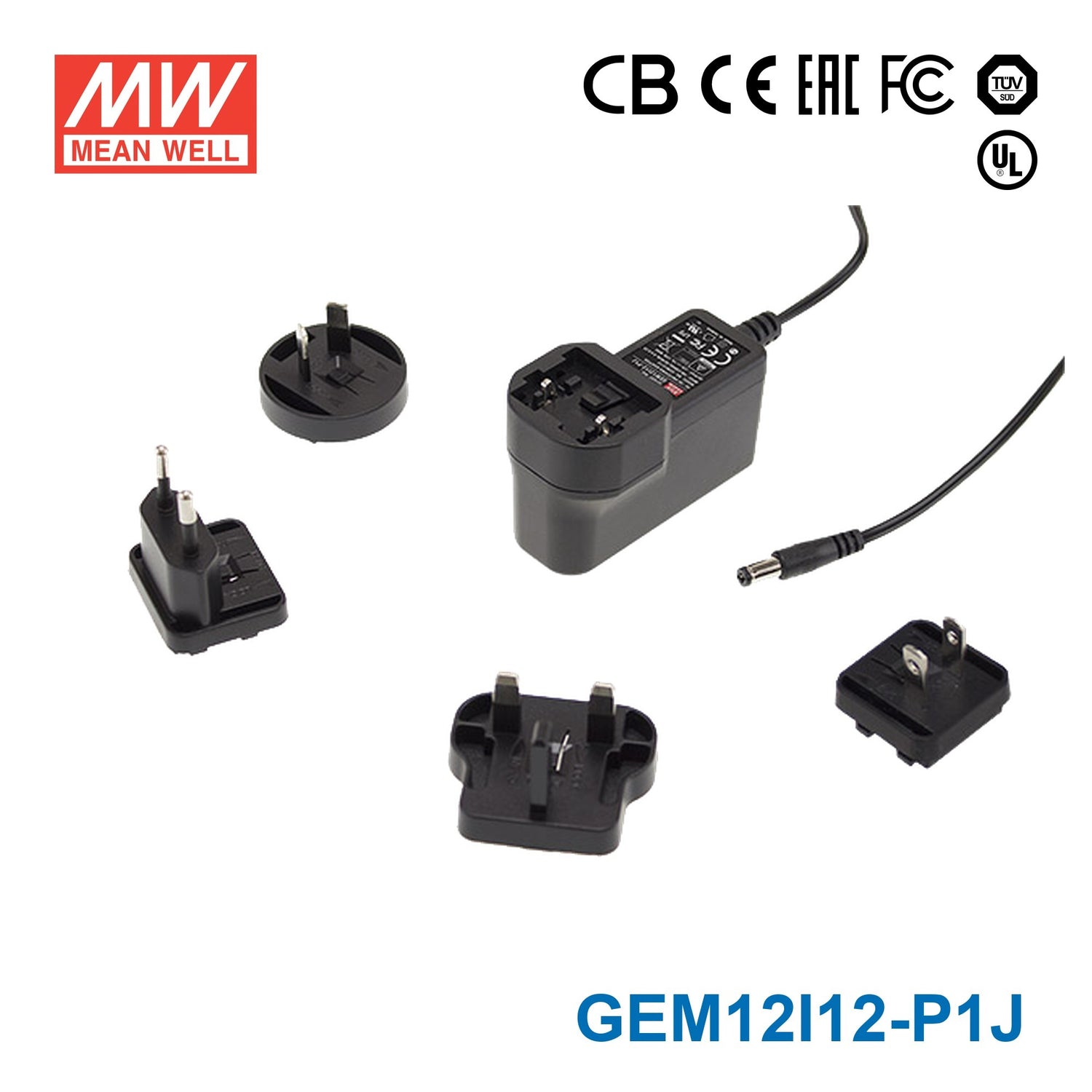

Mean Well GEM12I12-P1J Power Supply 12W 12V
Description
Description
The GEM12I12 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage12 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GEM12I12-P1J for a 12V industrial sensor hub or control module?
Yes, if the equipment needs constant 12V DC and draws no more than 1A. The 12W rating makes it appropriate for small 12V control electronics and sensor-related devices rather than higher-load 12V equipment.
Is this 12V power supply suitable for compact automation or embedded hardware?
It can be a fit for compact automation and embedded systems that are designed for constant 12V input. The load must remain within the 1A maximum output current and 12W total output rating.
Can this adapter power a 12V IT or communications accessory?
Yes, for low-power 12V accessories that require a constant-voltage supply and stay within 12W. That includes smaller IT and communications devices that do not exceed 1A current draw.
How do I know if my 12V device is the right size for the GEM12I12-P1J?
Check that the device requires 12V constant voltage and that its demand stays at or below 1A. Since the unit is rated for 12W, both the current and power limits must be respected.
How does the GEM12I12-P1J compare with the other GEM12I12 family options?
The listed siblings are regional plug variants of the GEM12I12 series, including Euro, mixed, Australia, US, and UK versions. This model is specified at 12V, 1A, and 12W, and the provided sibling list distinguishes versions by suffix rather than by a different electrical specification.
Is this model suitable for outdoor or variable-temperature locations?
It is rated for operation from -20°C to +70°C, so it can handle a wide ambient temperature range. No IP rating is included in the provided specs, so there is no stated basis here for outdoor or water-exposed use.
Other GEM12 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM12I48-P1J Power Supply 12W 48V | 12W | 48V | 0.25A | Indoor | $17.68 | View |
| Mean Well GEM12I24-P1J Power Supply 12W 24V | 12W | 24V | 0.5A | Indoor | $15.82 | View |
| Mean Well GEM12I18-P1J Power Supply 12W 18V | 12W | 18V | 0.66A | Indoor | $17.68 | View |
| Mean Well GEM12I15-P1J Power Supply 12W 15V | 12W | 15V | 0.8A | Indoor | $15.37 | View |
| Mean Well GEM12I09-P1J Power Supply 12W 9V | 12W | 9V | 1.33A | Indoor | $17.68 | View |
| Mean Well GEM12I07-P1J Power Supply 12W 7.5V | 12W | 7.5V | 1.6A | Indoor | $17.68 | View |
| Mean Well GEM12I05-P1J Power Supply 12W 5V | 12W | 5V | 2.4A | Indoor | $17.60 | View |
