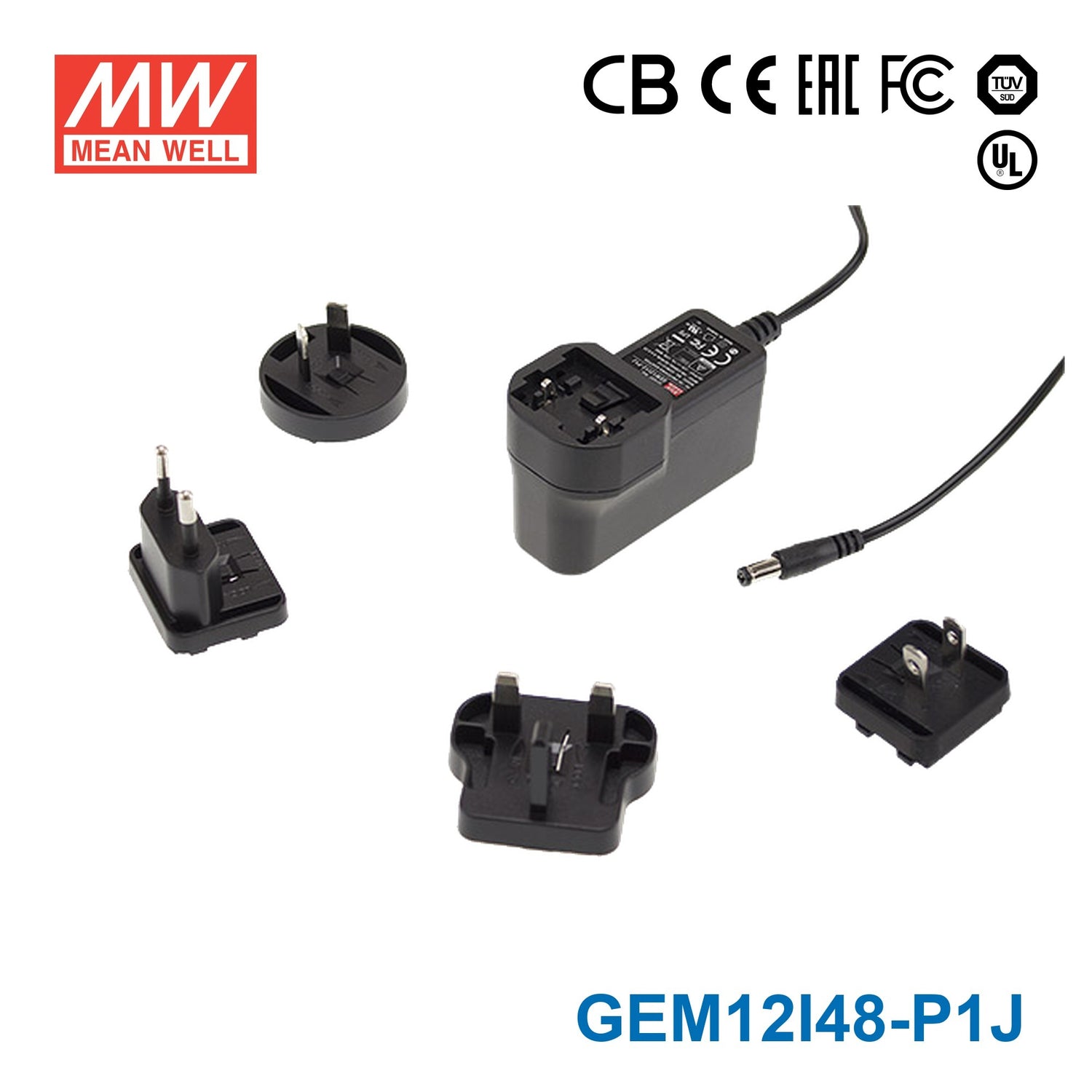

Mean Well GEM12I48-P1J Power Supply 12W 48V
$17.68 USD
Unit price /
Unavailable
Description
Description
Features
| Interchangeable AC plugs (plug kit sold separately) |
| Medical safety approved(2 xMOPP) according to 60601-1 |
| Extremely low leakage current |
| No-load power consumption <0.075W |
| Energy efficiency Level VI |
| -20 ~ +70°C wide range working temperature |
| Class II power (without earth pin) |
| Protections: Short circuit/ Overload/ Over voltage |
| Fully enclosed plastic case |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 15A at 115VAC; 30A at 230VAC |
| Setup, rise, hold up time | 500ms, 30ms, 16ms at 230VAC input |
| Overload protection | 110 ~ 200% rated output power |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:5656VDC |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Safety standards | TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), EAC TP TC 004 approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Length of output cable | UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V |
| Dimension (LxWxH) | 73.9x 39x 48.5 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating12 Watt
-
Output Voltage48 Volt
-
Rated Current0.25 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.91 in
-
Width1.91 in
-
Height1.54 in
-
Weight0.25 lb
