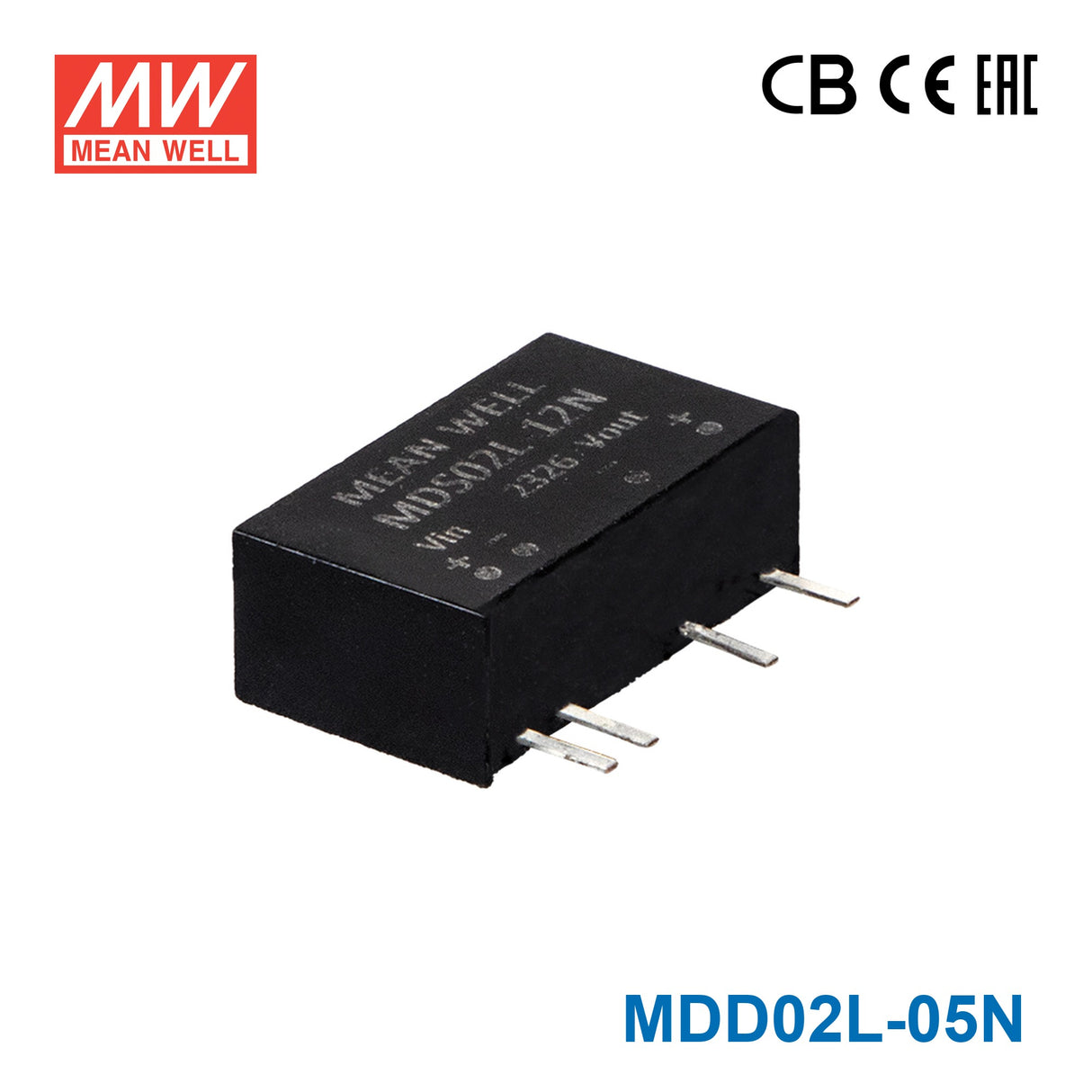

Mean Well MDD02L-05N SIP Package DC-DC Converter- 2W - ±5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD02L-05N SIP Package DC-DC Converter- 2W - ±5V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.03 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What kind of DC-DC converter is the Mean Well MDD02L-05N?
The MDD02L-05N is a 2W SIP-package DC-DC converter designed for compact board-level power conversion. This model provides a dual output of ±5V in a SIP7 form factor with reinforced 6KVDC input-to-output isolation.
What output does the MDD02L-05N provide?
This model is specified with a ±5V output and a 2W power rating. The product data also lists a rated current of 37 mA, making it suitable for low-power isolated DC-DC applications where a bipolar output is needed.
Is the MDD02L-05N suitable for medical or safety-sensitive equipment?
This converter is medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP noted in the product description. It also features low patient leakage current below 2μA and complies with IEC/UL62368-1, which makes it a strong fit for designs with strict isolation and safety requirements.
Can the MDD02L-05N be used in harsh temperature environments?
The MDD02L-05N is rated for operation from -40°C to +95°C. That wide temperature range makes it appropriate for industrial, embedded, and enclosed equipment that may face cold starts or elevated internal temperatures.
What protection and isolation features does the MDD02L-05N include?
This model includes continuous short-circuit protection and overload behavior that shuts down the output when rated power reaches 102% or more, then recovers automatically. It also provides 6KVDC input-to-output isolation with reinforced insulation for applications that need strong electrical separation.
How compact is the Mean Well MDD02L-05N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, and the product weight is 2.8 g. Its SIP7 package and small footprint make it a practical choice when PCB space is limited.
