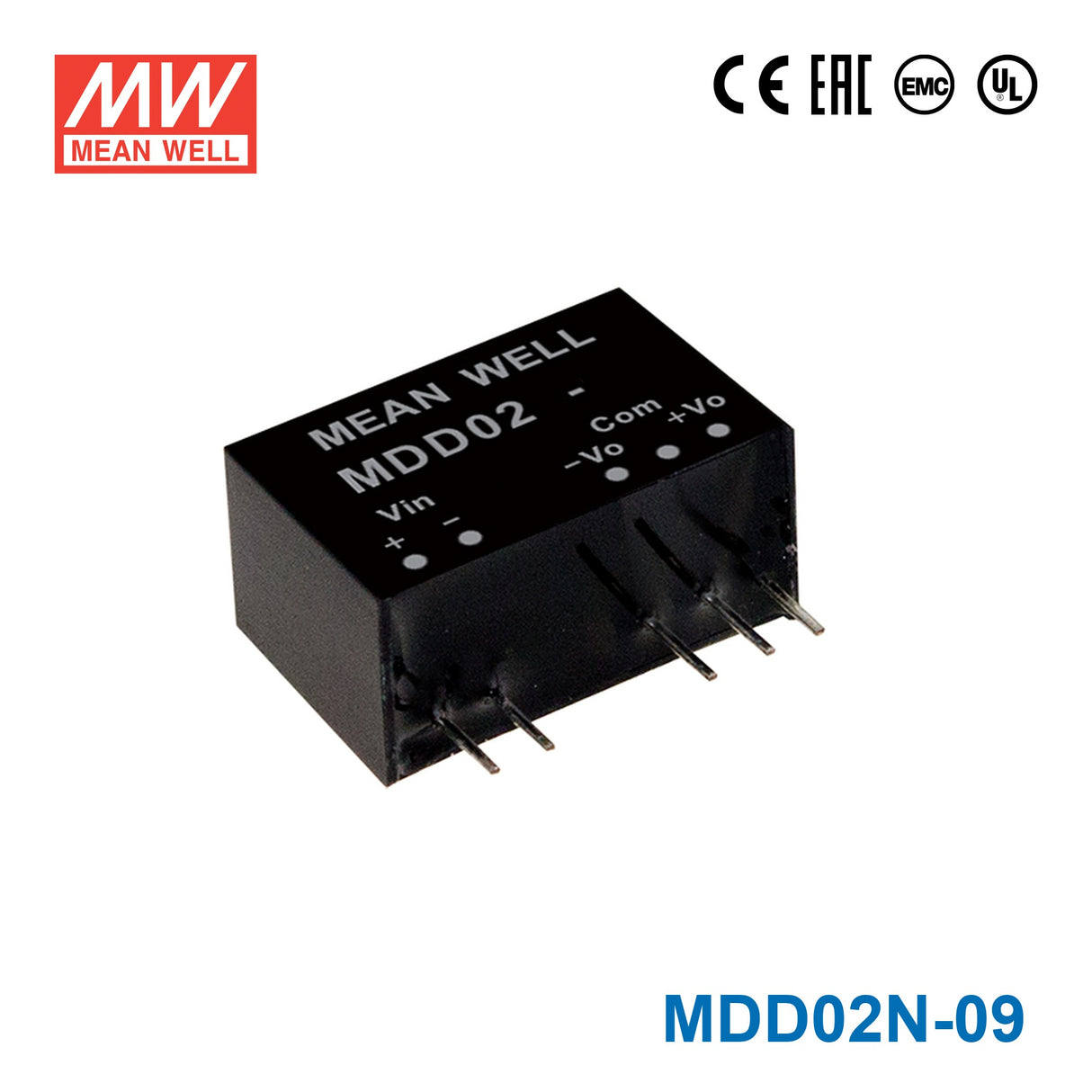

Mean Well MDD02N-09 DC-DC Converter - 2W - 21.6~26.4V in ±9V out
The MDD02N is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage9 Volt
-
Rated Current0.11 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.49 in
-
Height0.39 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the MDD02N-09 to generate a 9V rail from a 24V industrial power bus?
Yes, this converter is intended for that kind of low-power rail conversion because it accepts 21.6~26.4V input and provides a 9V constant-voltage output. With a 2W rating, it is best suited to small analog or interface circuits rather than larger downstream loads.
Is the MDD02N-09 suitable for embedded analog front ends in 24V automation systems?
It can be a fit for embedded analog front ends that need a 9V supply while operating from a 24V-class source. The 21.6~26.4V input range and compact 19.5 x 12.5 x 9.8 mm package support board-level use inside automation electronics.
Can this model be used in monitoring or data-acquisition modules that need a low-power 9V output?
Yes, it is appropriate for low-power monitoring or data-acquisition modules that run from a 21.6~26.4V source and need a regulated 9V rail. Its 2W power level is aligned with compact measurement and interface circuitry.
Can the MDD02N-09 operate in harsh indoor temperature conditions?
The specified operating range is -40°C to +85°C, which supports harsh indoor industrial temperature conditions. No IP rating is provided, so the listed specs do not establish outdoor mounting or exposure to water and dust.
