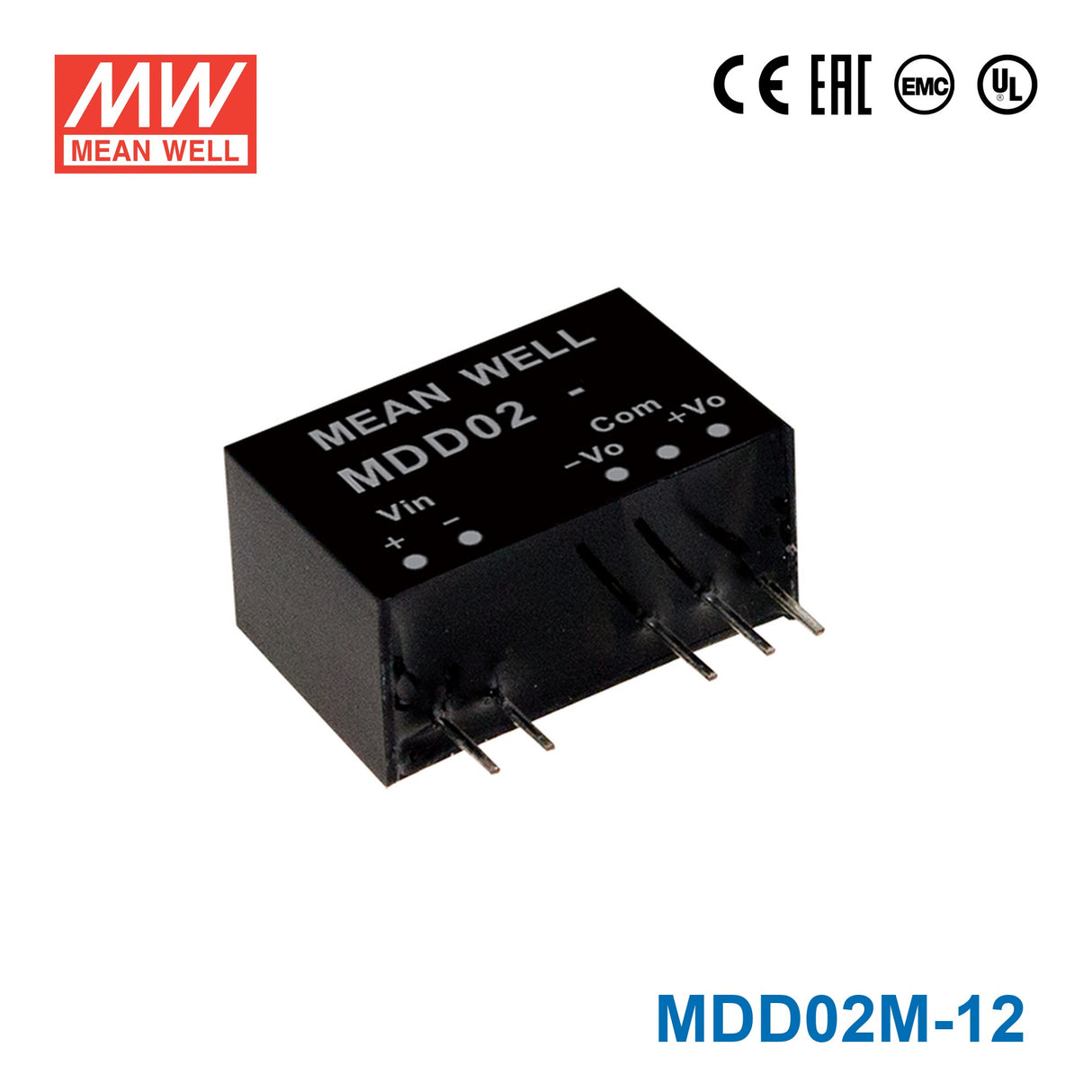

Mean Well MDD02M-12 DC-DC Converter - 2W - 10.8~13.2V in ±12V out
The MDD02M is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.49 in
-
Height0.39 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the MDD02M-12 for a low-power 12V analog rail in industrial controls?
Yes, this converter is suited to low-power 12V analog rails because it provides a 12V constant-voltage output from a 10.8~13.2V input range. With a 2W rating, it is a better match for signal-level circuitry and compact control electronics than for higher-power loads.
Is this a good fit for PLC add-on boards or instrumentation modules that need 12V from a 12V source?
It can be a fit for compact PLC accessory boards or instrumentation modules when the source stays within 10.8~13.2V and the load fits within 2W. The 19.5 x 12.5 x 9.8 mm form factor is useful where board space is tight.
Can the MDD02M-12 be used in embedded test and measurement electronics?
Yes, it is appropriate for embedded test and measurement sections that need a stable 12V output from a 10.8~13.2V input bus. Its constant-voltage operation and 2W power level point to low-power analog, sensing, or interface circuitry rather than larger actuating loads.
Can this converter be used in cold or hot industrial cabinets?
The operating temperature range is -40°C to +85°C, which supports use in a wide range of industrial cabinet temperatures. No IP rating is listed, so the specifications do not indicate direct outdoor exposure or resistance to water and dust ingress.
