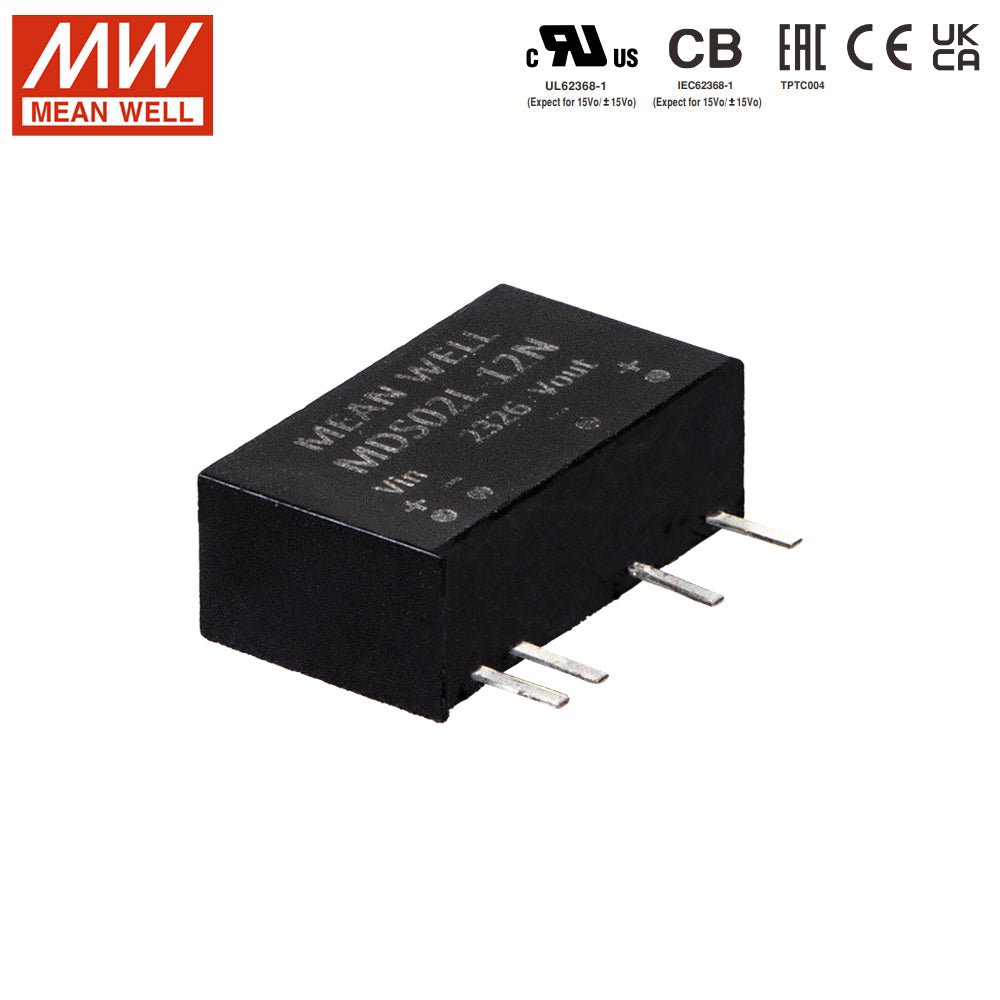

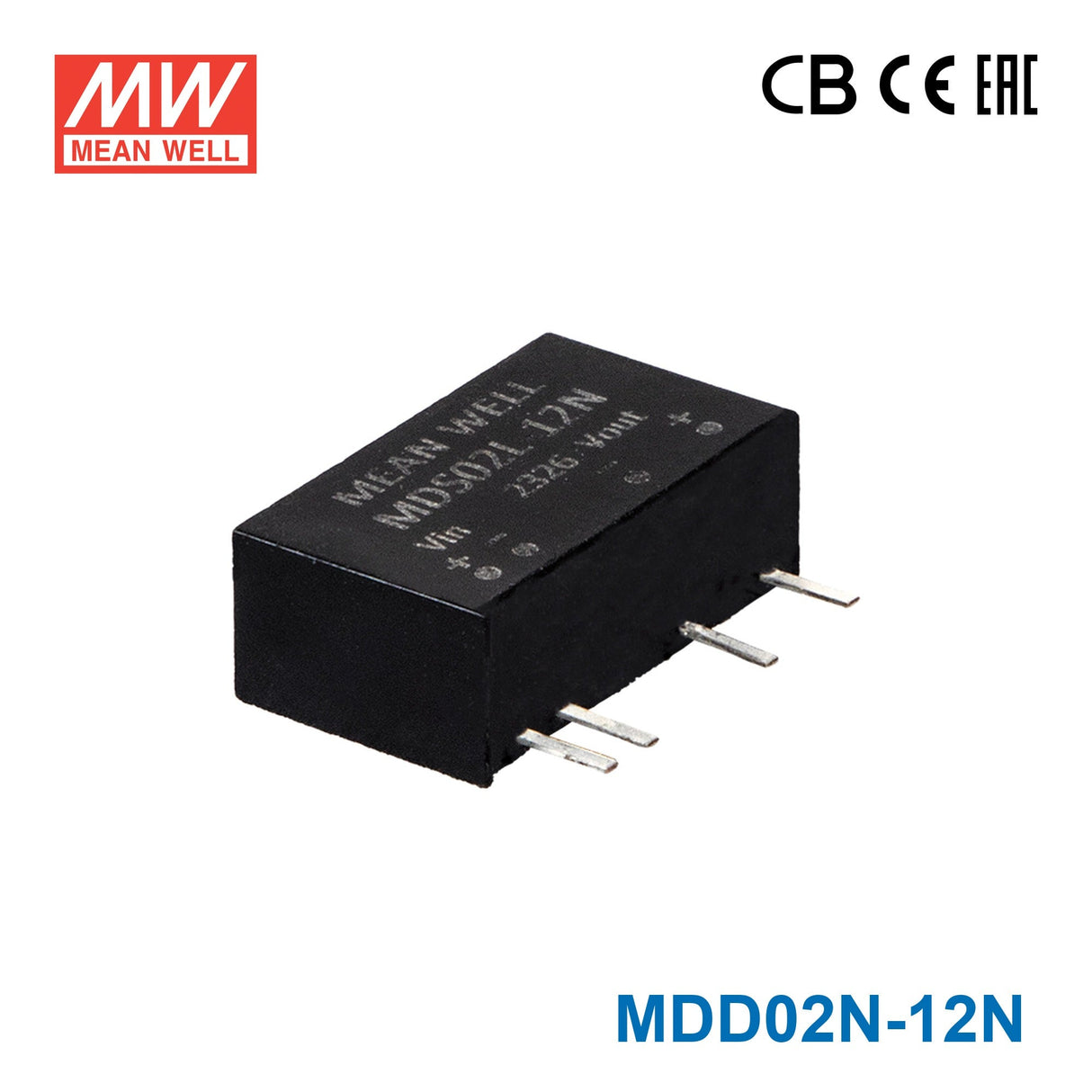

Mean Well MDD02N-12N SIP Package DC-DC Converter- 2W - ±12V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD02N-12N SIP Package DC-DC Converter- 2W - ±12V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDD02N-12N used for?
The MDD02N-12N is a 2W SIP-package DC-DC converter for compact embedded power designs that need isolated DC conversion. It is suited to space-constrained industrial and medical-related electronics where reinforced insulation, small size, and low leakage current matter.
What output does the MDD02N-12N provide?
This model is specified as a 2W DC-DC converter with ±12V output in the product name. It is part of Mean Well's MDD series in a SIP7 package, making it appropriate for designs that need dual-rail output from a compact module.
Does the MDD02N-12N support medical or safety-sensitive equipment designs?
Yes. The series is described as medically safety approved to IEC60601-1 with 1xMOPP and 2xMOOP, and it also lists IEC/UL62368-1 compliance for applicable models. It also specifies low patient leakage current under 2 microamps and 6KVDC input-to-output isolation.
Can this DC-DC converter be used in harsh temperature conditions?
Yes. The MDD02N-12N is rated for operation from -40°C to +95°C, which makes it suitable for demanding enclosed or industrial environments within that range. Buyers should still confirm that the surrounding system stays within the product's stated operating limits.
How compact is the Mean Well MDD02N-12N?
This model has a compact SIP7 form factor with dimensions of 19.7 x 7.1 x 11.5 mm and a listed weight of 2.8 g. That size is useful for dense PCB layouts where board space is limited.
What protection and reliability features does the MDD02N-12N include?
The MDD02N-12N includes continuous short-circuit protection, and the general specification states overload protection that shuts down the output when rated power reaches 102% or more, then auto-recovers. Mean Well also lists a 3-year warranty for this series.
