Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

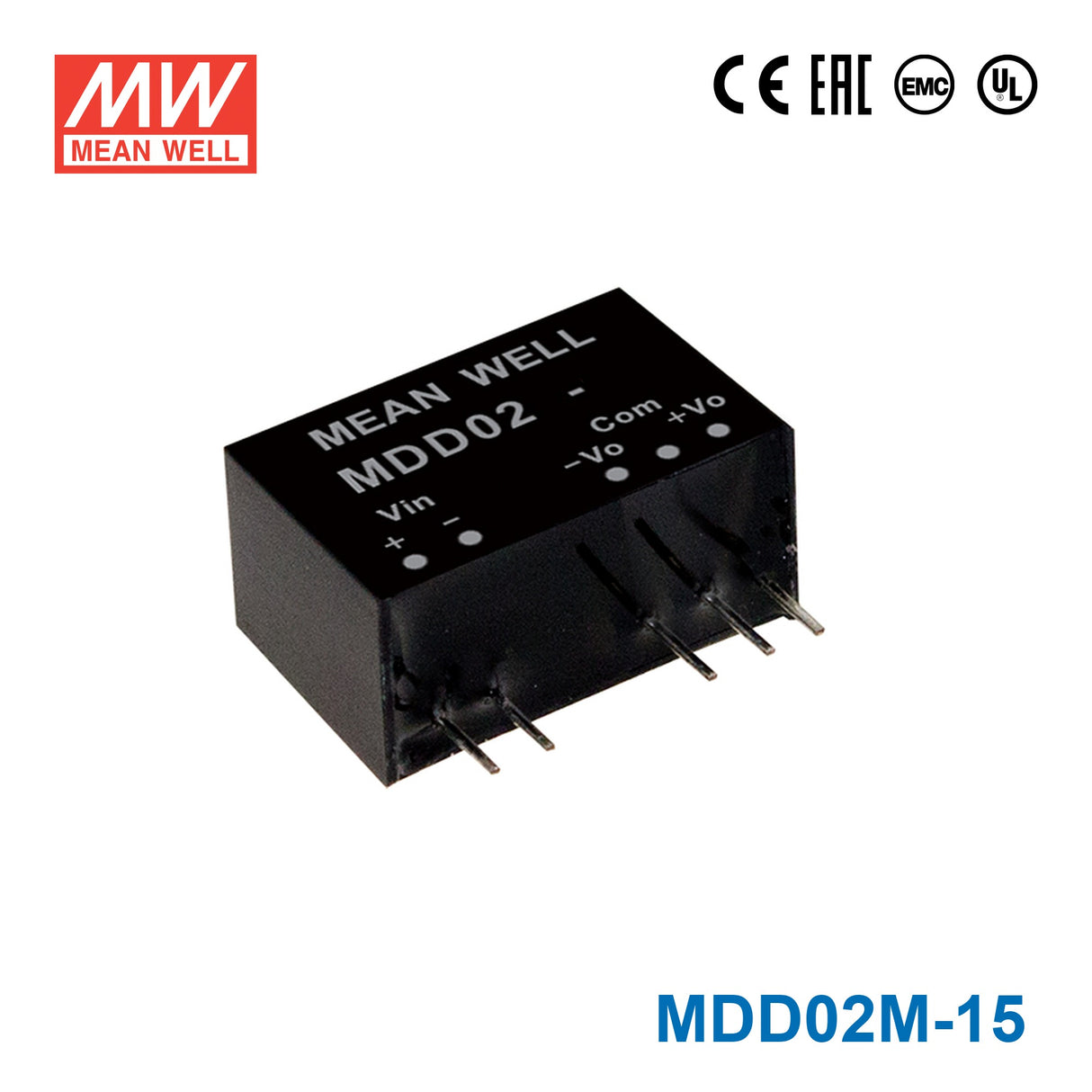

Mean Well MDD02M-15 DC-DC Converter - 2W - 10.8~13.2V in ±15V out
The MDD02M is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.49 in
-
Height0.39 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the MDD02M-15 for precision analog circuits that need a 15V rail?
Yes, this model is a reasonable fit for low-power precision analog sections because it delivers a 15V constant-voltage output from a 10.8~13.2V input range. Its 2W rating makes it more appropriate for signal-chain electronics than for heavier powered devices.
Is the MDD02M-15 suitable for industrial test fixtures or calibration electronics?
It can be suitable for low-power industrial test fixtures or calibration electronics that run from a 10.8~13.2V source and require a 15V rail. The compact 19.5 x 12.5 x 9.8 mm body also helps in portable or space-limited instrumentation designs.
Can this converter support embedded control boards with legacy 15V analog sections?
Yes, it can fit embedded boards that still use low-power 15V analog circuitry, provided the input is within 10.8~13.2V and the load stays inside the 2W output rating. Its constant-voltage operation is aligned with stable rail generation for board-level electronics.
Is the MDD02M-15 meant for indoor-only environments or can it handle wider temperature swings?
Its operating temperature range is -40°C to +85°C, so it can handle broad temperature variation in industrial equipment. No IP rating is specified, which means the listed specs support temperature performance but do not confirm outdoor or exposed-environment suitability.
