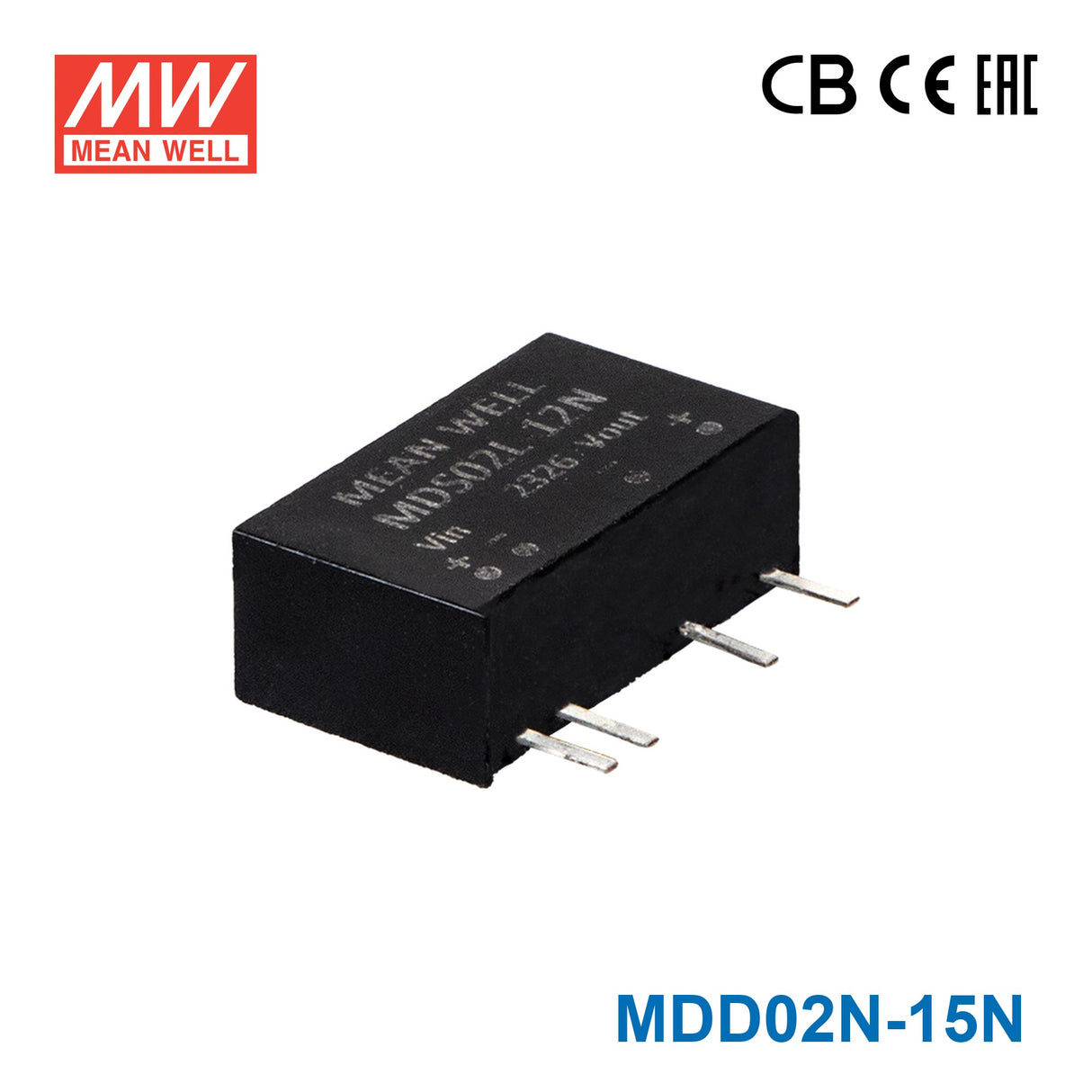

Mean Well MDD02N-15N SIP Package DC-DC Converter- 2W - ±15V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDD02N-15N SIP Package DC-DC Converter- 2W - ±15V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDD02N-15N designed for?
The MDD02N-15N is a 2W SIP-package DC-DC converter intended for compact power conversion in electronic equipment. This model is suited to applications that need an isolated DC-DC module with a ±15V output option and reinforced 6KVDC input-to-output isolation.
What are the key electrical specs of the MDD02N-15N?
This model is rated for 2W output power and provides a ±15V output configuration. The product data also lists a rated current of 10 mA, along with continuous short-circuit protection and overload shutdown with automatic recovery when rated power reaches 102% or more.
Is the MDD02N-15N suitable for medical or safety-sensitive equipment?
Yes. The MDD02N-15N is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP, and it has low patient leakage current below 2 microamps. It also carries CB, UL, EAC, CE, and UKCA safety certifications covering 62368-1 and 60601-1.
What operating temperature range can this DC-DC converter handle?
The MDD02N-15N is specified for operation from -40°C to +95°C. That wide range makes it a practical choice for equipment that may face both low-temperature starts and elevated internal enclosure temperatures.
How compact is the Mean Well MDD02N-15N?
This converter uses a SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm. Its listed weight is 2.8 g, making it a compact option where board space and overall assembly size matter.
What distinguishes the MDD02N-15N from more basic DC-DC converter modules?
Compared with basic low-cost converter modules, the MDD02N-15N stands out for its reinforced 6KVDC isolation, medical safety approvals, and very low patient leakage current. It also combines these features in a compact SIP7 form factor with a 3-year warranty.
