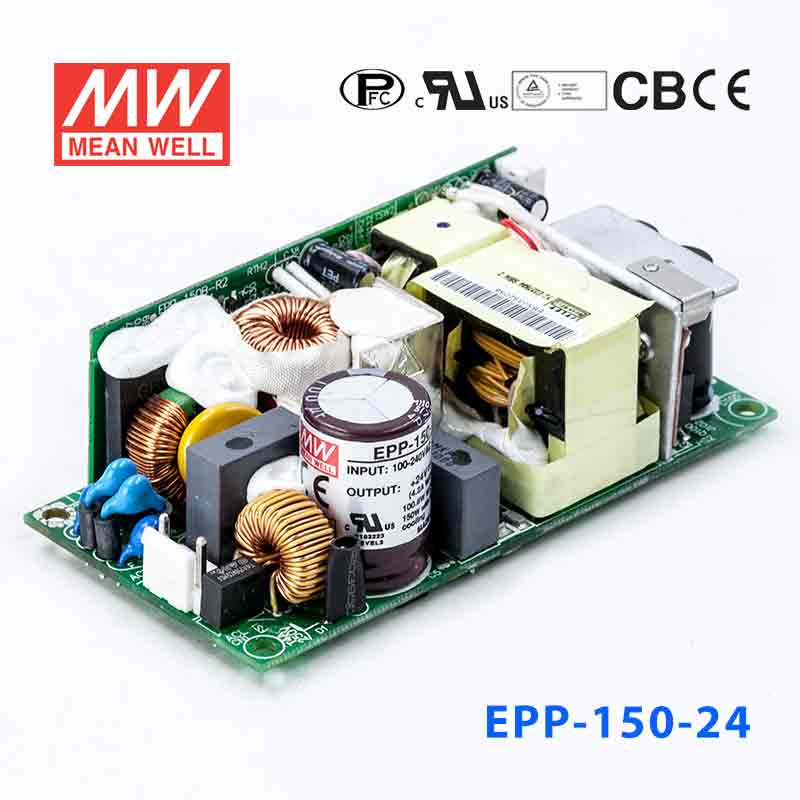

Mean Well EPP-150-24 Power Supply 100W 24V
<2mA/240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 93%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓100W free air convection, 150W with 20CFM forced air
- ✓✓LED indicator for power on
- ✓✓No-load power consumption<0.5W
- ✓✓Built-in 12V /0.3A auxiliary output
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What output does the Mean Well EPP-150-24 provide?
This model provides a 24V DC output with a rated current of 4.2A. Its listed power rating is 100.8W, which matches its standard free-air convection rating.
Is the EPP-150-24 suitable for equipment used in industrial environments?
It is designed for demanding embedded and industrial applications that need a compact open-frame AC-DC power supply. The unit supports operation from -30 to +70 degrees C and includes protection for short circuit, overload, over voltage, and over temperature.
What input range does the Mean Well EPP-150-24 accept?
The power supply accepts a universal AC input range of 90 to 264VAC. It also supports 127 to 370VDC input, which helps it fit a wide range of OEM and equipment designs.
How compact is the EPP-150-24 for space-constrained designs?
This model uses a 4 x 2 inch compact form factor. Its listed dimensions are 101.6 x 50.8 x 29 mm, making it suitable where PCB space is limited.
Does the EPP-150-24 include efficiency and power-saving features?
Yes. It includes active PFC, reaches efficiency up to 93%, and has no-load power consumption below 0.5W. Those characteristics can help reduce wasted energy in always-on equipment.
Can this power supply deliver more than 100W?
This model is rated for 100W under free-air convection conditions, and up to 150W with 20CFM forced air. Buyers should evaluate the cooling conditions in the end equipment when comparing it with fixed 150W open-frame models.
Does the EPP-150-24 offer any auxiliary output or status indication?
Yes. It includes a built-in 12V / 0.3A auxiliary output and an LED power-on indicator. Those features can be useful in control and monitoring applications that need a small secondary output and quick visual status confirmation.
