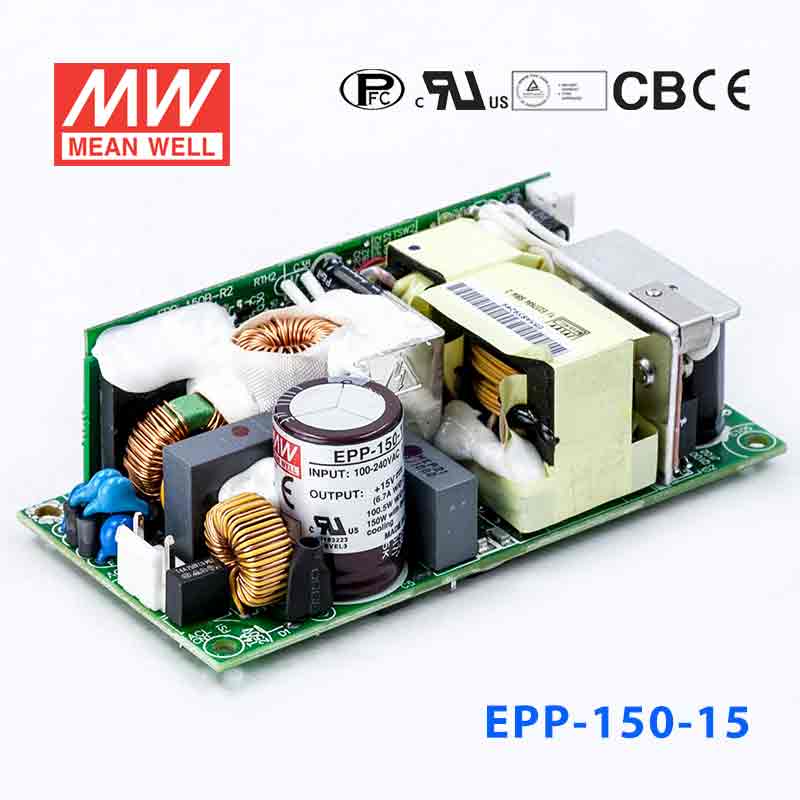

Mean Well EPP-150-15 Power Supply 100W 15V
<2mA/240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 93%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓100W free air convection, 150W with 20CFM forced air
- ✓✓LED indicator for power on
- ✓✓No-load power consumption<0.5W
- ✓✓Built-in 12V /0.3A auxiliary output
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the EPP-150-15 for 15V industrial instrumentation?
Yes, if the instrument or control electronics require constant 15V DC and the load stays within 6.7A and 100.5W. It is intended for applications that specifically need 15V, not 12V, 24V, 27V, or 48V.
Is this 15V power supply suitable for embedded control or OEM boards?
It can be a fit for embedded systems and OEM assemblies designed around a constant 15V input. The available output is 15V at up to 6.7A, with a 90-264VAC input range.
Can the EPP-150-15 power 15V test fixtures or lab support equipment?
Yes, for equipment that needs a regulated 15V constant-voltage source and remains under 100.5W. The main sizing check is keeping current draw at or below 6.7A.
How do I tell if my 15V device is within this model's capacity?
This power supply is rated for 15V output, 6.7A current, and 100.5W total power. If the connected 15V load exceeds any of those values, this model is undersized for that application.
Can I use the EPP-150-15 in harsh temperature conditions?
The specified operating range is -30°C to +70°C, which covers a wide protected-equipment temperature band. The specs do not list an IP rating, so environmental suitability should be treated as indoor and enclosure-protected rather than exposed outdoor use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-150 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-150-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $44.89 | View |
| Mean Well EPP-150-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $38.68 | View |
| Mean Well EPP-150-27 Power Supply 100W 27V | 100.17W | 27V | 3.71A | Indoor | $45.00 | View |
| Mean Well EPP-150-12 Power Supply 100W 12V | 100.8W | 12V | 8.4A | Indoor | $36.93 | View |
