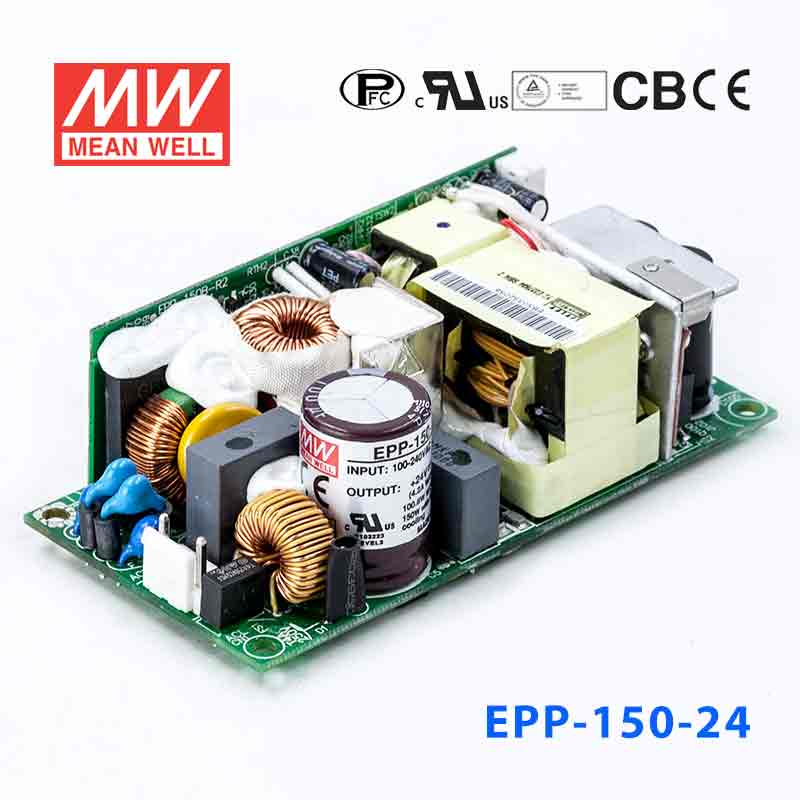

Mean Well EPP-150-24 Power Supply 100W 24V

Q: What output does the Mean Well EPP-150-24 provide?

This model provides a 24V DC output with a rated current of 4.2A. Its listed power rating is 100.8W, which matches its standard free-air convection rating.

Q: Is the EPP-150-24 suitable for equipment used in industrial environments?

It is designed for demanding embedded and industrial applications that need a compact open-frame AC-DC power supply. The unit supports operation from -30 to +70 degrees C and includes protection for short circuit, overload, over voltage, and over temperature.

Q: What input range does the Mean Well EPP-150-24 accept?

The power supply accepts a universal AC input range of 90 to 264VAC. It also supports 127 to 370VDC input, which helps it fit a wide range of OEM and equipment designs.

Q: How compact is the EPP-150-24 for space-constrained designs?

This model uses a 4 x 2 inch compact form factor. Its listed dimensions are 101.6 x 50.8 x 29 mm, making it suitable where PCB space is limited.

Q: Does the EPP-150-24 include efficiency and power-saving features?

Yes. It includes active PFC, reaches efficiency up to 93%, and has no-load power consumption below 0.5W. Those characteristics can help reduce wasted energy in always-on equipment.

Q: Can this power supply deliver more than 100W?

This model is rated for 100W under free-air convection conditions, and up to 150W with 20CFM forced air. Buyers should evaluate the cooling conditions in the end equipment when comparing it with fixed 150W open-frame models.

Q: Does the EPP-150-24 offer any auxiliary output or status indication?

Yes. It includes a built-in 12V / 0.3A auxiliary output and an LED power-on indicator. Those features can be useful in control and monitoring applications that need a small secondary output and quick visual status confirmation.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-150-24

$43.02 USD ~~$44.89~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 93%

Protections: Short circuit/Overload/Over voltage/Over temperature

100W free air convection, 150W with 20CFM forced air

LED indicator for power on

No-load power consumption<0.5W

Built-in 12V /0.3A auxiliary output

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	COLD START 70A/230VAC
Leakage current	<2mA/240VAC
Overload protection	105 ~ 145% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 16ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 15.4kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

100.8 Watt
Output Voltage

24 Volt
Rated Current

4.2 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.44 lb
