Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

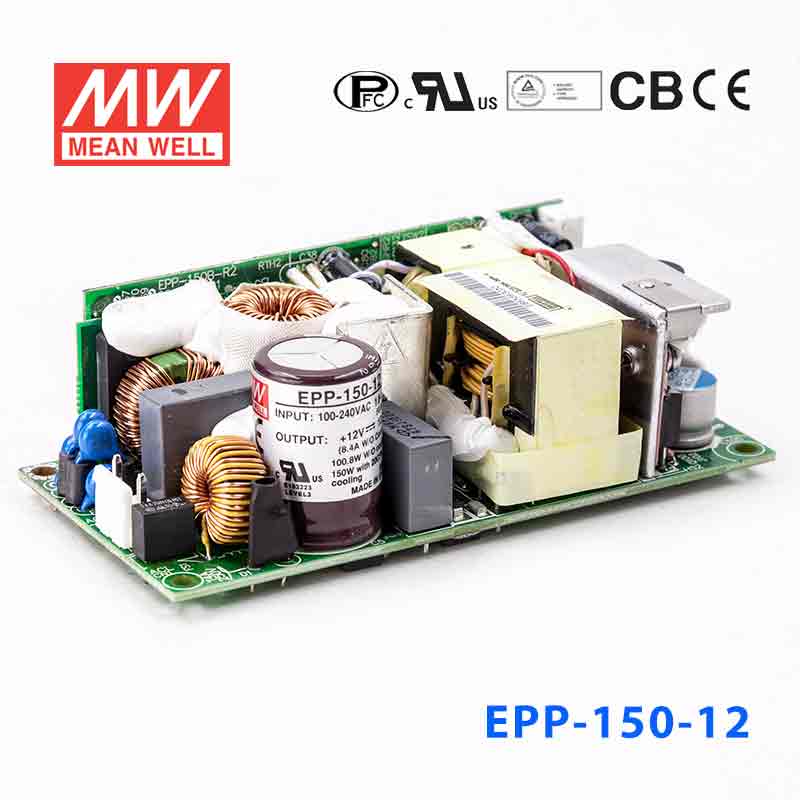

Mean Well EPP-150-12 Power Supply 100W 12V
<2mA/240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 93%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓100W free air convection, 150W with 20CFM forced air
- ✓✓LED indicator for power on
- ✓✓No-load power consumption<0.5W
- ✓✓Built-in 12V /0.3A auxiliary output
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating100.8 Watt
-
Output Voltage12 Volt
-
Rated Current8.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the EPP-150-12 for 12V PLC, relay, or control circuits?
Yes, if the automation hardware requires constant 12V DC and the total demand stays within 8.4A and 100.8W. It is a better fit for 12V control loads than equipment that expects 24V, 27V, or 48V.
Is the EPP-150-12 suitable for embedded PCs or industrial electronics that run on 12V?
It can be used for 12V embedded systems, industrial computers, or OEM electronics that accept a constant 12V input. The output capacity is 12V at up to 8.4A, and the input range is 90-264VAC.
Can this model power 12V monitoring, sensing, or test equipment?
Yes, for 12V instruments or support electronics that stay within the 100.8W limit. Buyers should confirm that the load matches the constant-voltage 12V output and does not exceed 8.4A.
How much 12V load can the EPP-150-12 support?
The rated output is 12V, 8.4A, and 100.8W. That makes it appropriate when the full connected 12V load remains at or below those figures.
Is the EPP-150-12 meant for indoor or outdoor use?
Its operating temperature range is -30°C to +70°C, but the listed specs do not show an IP rating. That means the product data supports protected indoor use rather than exposed outdoor placement.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-150 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-150-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | Indoor | $44.89 | View |
| Mean Well EPP-150-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $38.68 | View |
| Mean Well EPP-150-27 Power Supply 100W 27V | 100.17W | 27V | 3.71A | Indoor | $45.00 | View |
| Mean Well EPP-150-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $44.89 | View |
