Can I use the EPP-150-48 for a 48V industrial controller or PLC load?

Yes, if the controller requires a constant 48V DC supply and stays within 2.1A and 100.8W. This model is a constant voltage power supply rated at 48V output.

Is the EPP-150-48 suitable for embedded 48V electronics inside a compact machine?

It can be a fit for compact embedded equipment that needs 48V DC and does not exceed 100.8W. Its 101.6 x 50.8 x 29.0 mm size and 0.2 kg weight support use in space-constrained equipment.

Can this power a 48V automation module or sensor hub?

Yes, for 48V automation loads that draw no more than 2.1A total. The supply provides constant 48V output, so it is intended for equipment designed for fixed-voltage DC input.

Is the EPP-150-48 appropriate for indoor or outdoor equipment?

The operating temperature range is -30°C to +70°C, which supports use across a wide temperature span. However, no IP rating is listed in the provided specs, so outdoor or wet-location suitability is not established by these specs alone.

How does the EPP-150-48 compare with other 48V models in the EPP series?

Within the listed siblings, the 48V options are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The main differences are output power and available output current at the same 48V nominal output.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

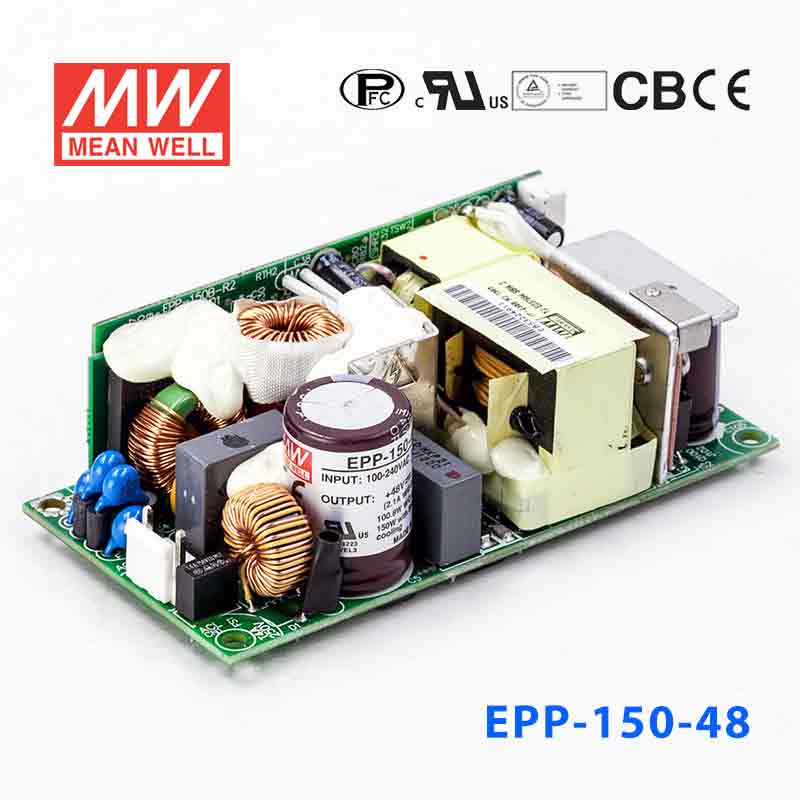

Mean Well EPP-150-48 Power Supply 100W 48V 2.1A

Name: Mean Well EPP-150-48 Power Supply 100W 48V 2.1A
Brand: Mean Well
SKU: EPP-150-48
Price: 44.89 USD
Availability: InStock

4" x 2"high efficiency up to 92%economical PFCno load power consumption

SKU EPP-150-48

$44.89 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The EPP-150 is a 100.8W Mean Well open-frame power supply (input: 90~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 48V
✓ Rated output current: 2.1A
✓ Operating temperature: -30~+70°C
✓ Active PFC — meets international energy efficiency standards
✓ Safety certifications: CB, CE, EAC, TÜV, UL
✓ 3 year warranty

Brand

Mean Well
Series

EPP Series
Power Rating

100.8 Watt
Output Voltage

48 Volt
Rated Current

2.1 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.44 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well EPP-150-24 Power Supply 100W 24V 4.2A	100.8W	24V	4.2A	Indoor	$34.85	View
Mean Well EPP-150-12 Power Supply 100W 12V 8.4A	100.8W	12V	8.4A	Indoor	$36.60	View
Mean Well EPP-150-27 Power Supply 100W 27V 3.71A	100.17W	27V	3.71A	Indoor	$45.00	View
Mean Well EPP-150-15 Power Supply 100W 15V 6.7A	100.5W	15V	6.7A	Indoor	$44.89	View
