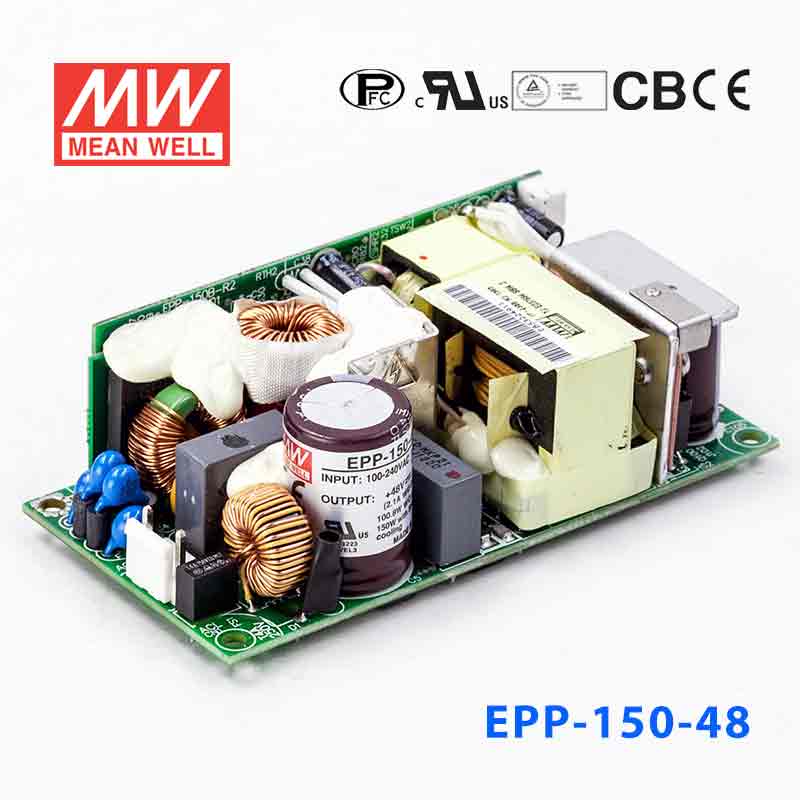

Mean Well EPP-150-48 Power Supply 100W 48V
<2mA/240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 93%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓100W free air convection, 150W with 20CFM forced air
- ✓✓LED indicator for power on
- ✓✓No-load power consumption<0.5W
- ✓✓Built-in 12V /0.3A auxiliary output
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating100.8 Watt
-
Output Voltage48 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the EPP-150-48 for a 48V industrial controller or PLC load?
Yes, if the controller requires a constant 48V DC supply and stays within 2.1A and 100.8W. This model is a constant voltage power supply rated at 48V output.
Is the EPP-150-48 suitable for embedded 48V electronics inside a compact machine?
It can be a fit for compact embedded equipment that needs 48V DC and does not exceed 100.8W. Its 101.6 x 50.8 x 29.0 mm size and 0.2 kg weight support use in space-constrained equipment.
Can this power a 48V automation module or sensor hub?
Yes, for 48V automation loads that draw no more than 2.1A total. The supply provides constant 48V output, so it is intended for equipment designed for fixed-voltage DC input.
Is the EPP-150-48 appropriate for indoor or outdoor equipment?
The operating temperature range is -30°C to +70°C, which supports use across a wide temperature span. However, no IP rating is listed in the provided specs, so outdoor or wet-location suitability is not established by these specs alone.
How does the EPP-150-48 compare with other 48V models in the EPP series?
Within the listed siblings, the 48V options are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The main differences are output power and available output current at the same 48V nominal output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-150 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-150-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | Indoor | $38.68 | View |
| Mean Well EPP-150-27 Power Supply 100W 27V | 100.17W | 27V | 3.71A | Indoor | $45.00 | View |
| Mean Well EPP-150-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | Indoor | $44.89 | View |
| Mean Well EPP-150-12 Power Supply 100W 12V | 100.8W | 12V | 8.4A | Indoor | $36.93 | View |
