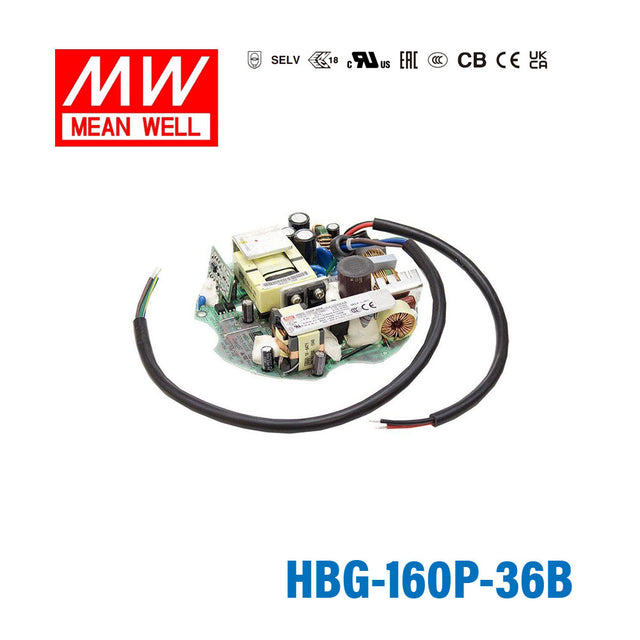

Mean Well HBG-160P-36B Power Supply 160W 36V PCB Type - Dimmable
The HBG-160P is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well HBG-160P-36B?
The HBG-160P-36B is a 160W class LED power supply with a 36V output and a rated current of 4.4A. Its listed power rating is 158.4W. This model operates in constant voltage plus constant current mode.
What dimming methods does the HBG-160P-36B support?
This model supports multiple dimming control types, including 10V PWM, 1-10V, and resistance dimming. The product description also notes 3-in-1 dimming as a function option. That makes it suitable for projects that need adjustable light output without changing the power supply model.
Is the Mean Well HBG-160P-36B suitable for outdoor or harsh environments?
Yes, this model is rated IP67 / IP65, so it is designed for indoor or outdoor installations. It also has a wide operating temperature range of -40°C to +85°C. Those specifications make it appropriate for demanding commercial and industrial lighting environments.
What types of applications is this power supply commonly used for?
The HBG-160P-36B is intended for LED lighting applications that require a 36V constant voltage plus constant current power supply with dimming capability. Its waterproof housing, active PFC, and broad input range make it a fit for commercial, architectural, and outdoor LED systems. Buyers typically choose this model when durability and dimming flexibility are both important.
What input range does the HBG-160P-36B support?
This model accepts a wide AC input voltage range of 90-305VAC and a DC input range of 127-417VDC. That broad range helps it work across many standard power environments. It also includes built-in active PFC as part of its design.
How does the HBG-160P-36B compare to non-dimmable LED power supplies?
The HBG-160P-36B stands out by combining 36V output, 160W-class capacity, and multiple dimming control options in one unit. It is also built with a circular plastic housing and carries IP67 / IP65 protection for more demanding environments. For buyers comparing models, the dimming support and environmental protection are key differentiators.
What warranty and service life can buyers expect from this model?
Mean Well lists this model with a 5-year warranty. The product description also states a typical lifetime of more than 50,000 hours. Those details make it a strong option for buyers looking for long service life and lower maintenance frequency.
