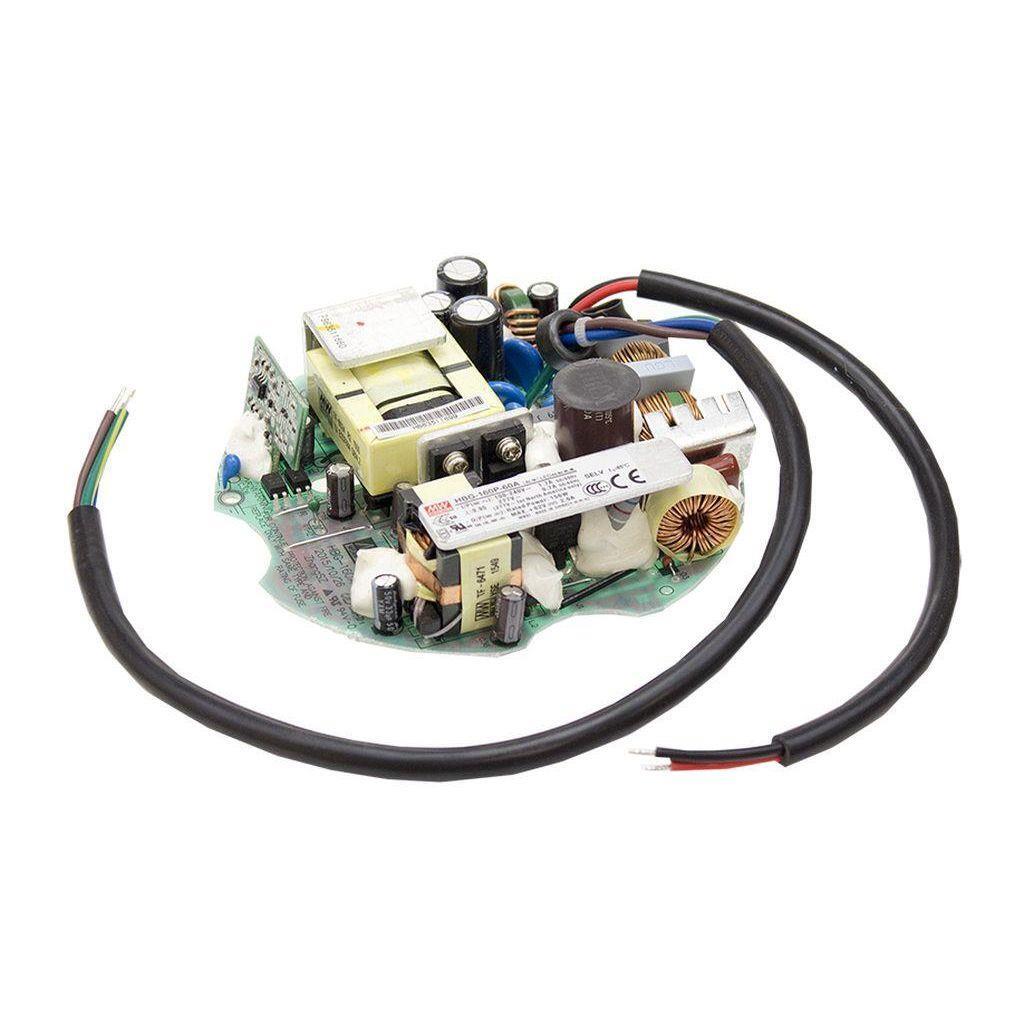

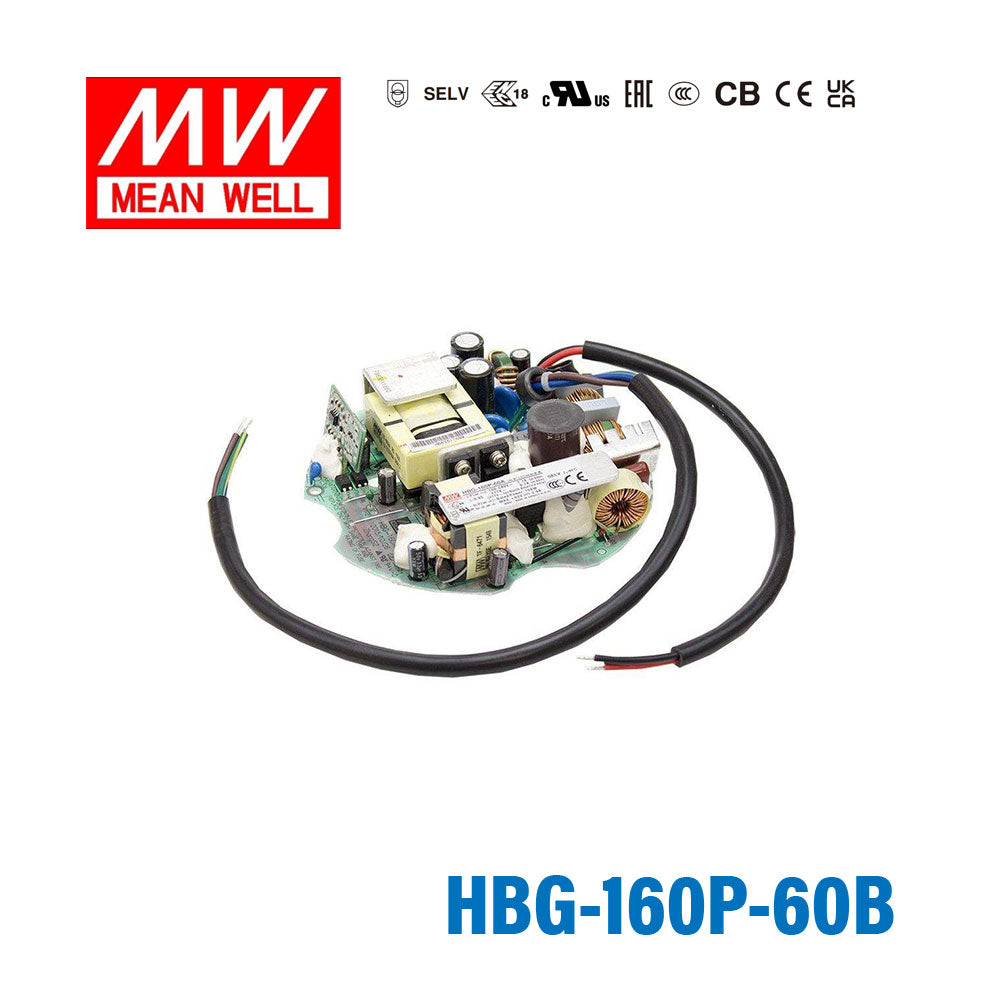

Mean Well HBG-160P-60B Power Supply 160W 60V PCB Type

Name: Mean Well HBG-160P-60B Power Supply 160W 60V PCB Type - Dimmable 2.6A
Brand: Mean Well
SKU: HBG-160P-60B
Price: 70.97 USD
Availability: InStock

Overview

HBG-160P-60B is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%.

HBG-160P series is a 160W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-160P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifet ime>50000 hours
5 years warranty

Specifications

HBG-160P-60BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 2.6A
RATED POWER^Note.5: 156W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.6 ~ 2.6A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.7: 93.5%
AC CURRENT: 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.12: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.4Kg; 36pcs/15.4Kg/1.35CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. All functional testing must be filled with potting,including OTP function .

Technical drawings

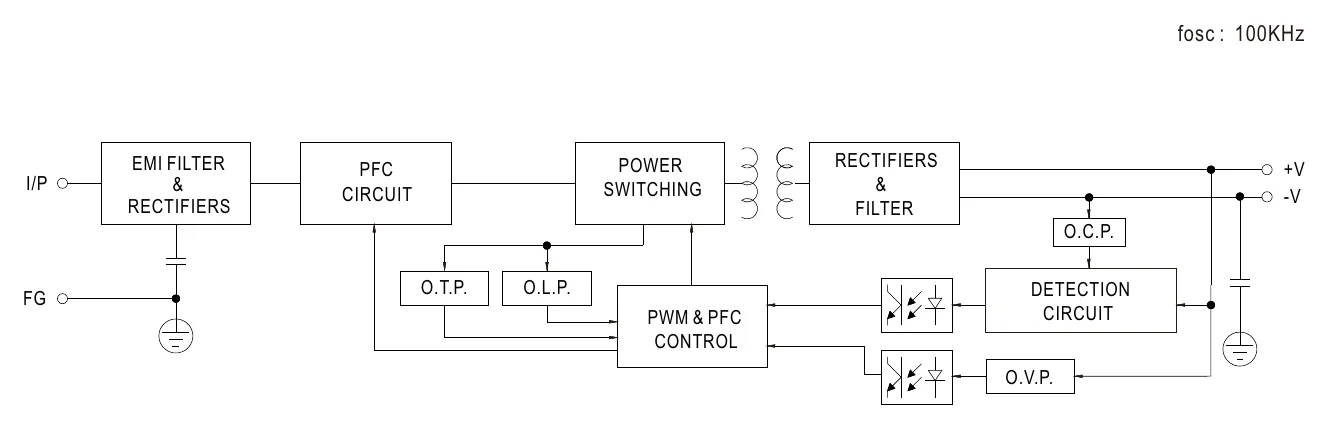

HBG-160P-60B BLOCK DIAGRAM — BLOCK DIAGRAM

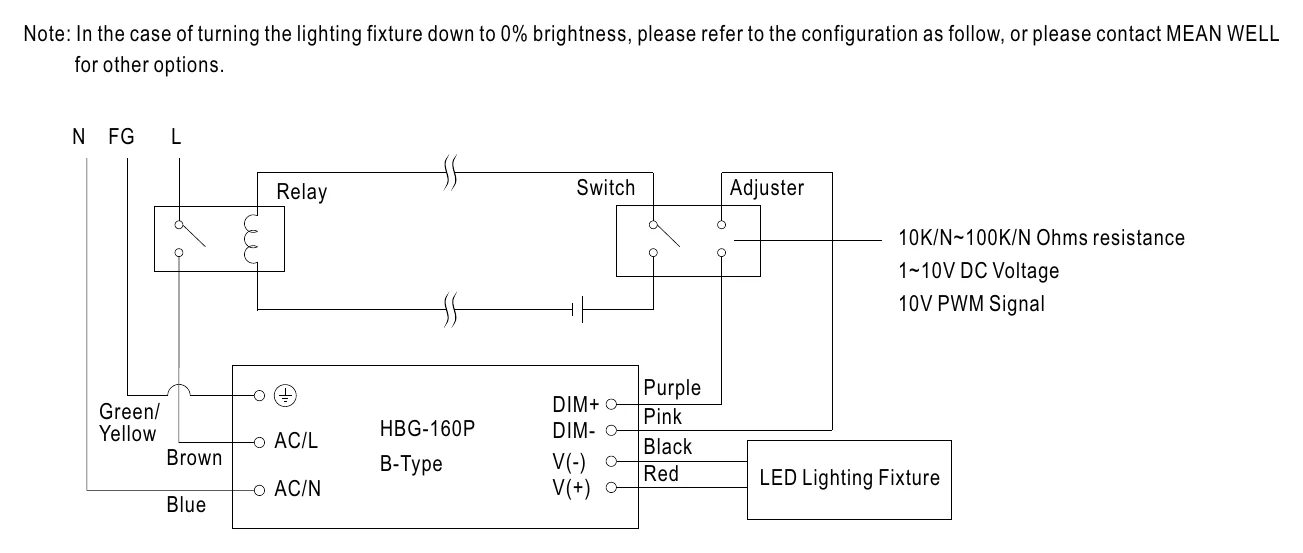

HBG-160P-60B DIMMING OPERATION — DIMMING OPERATION

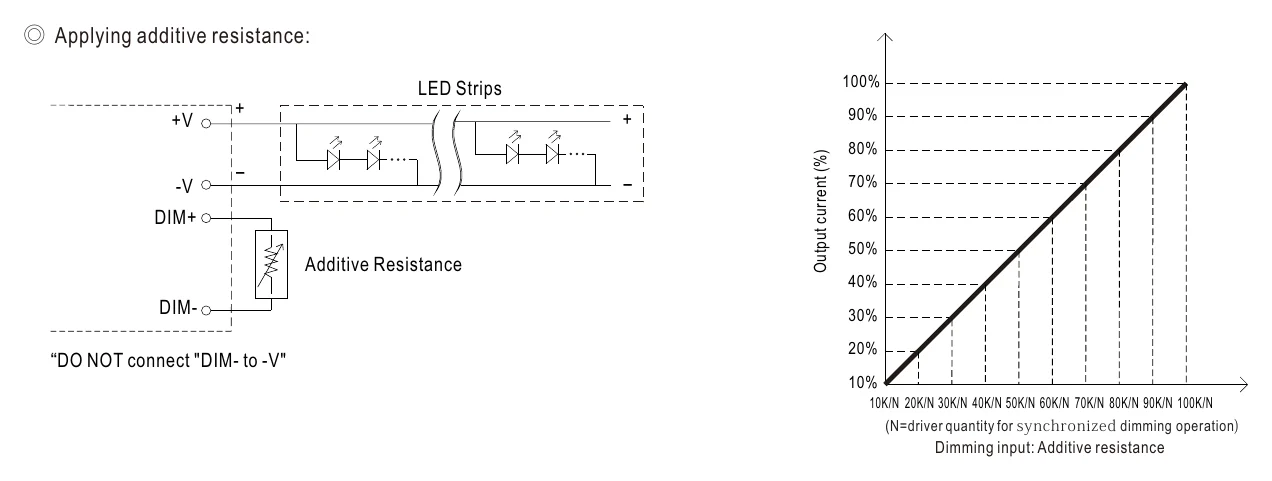

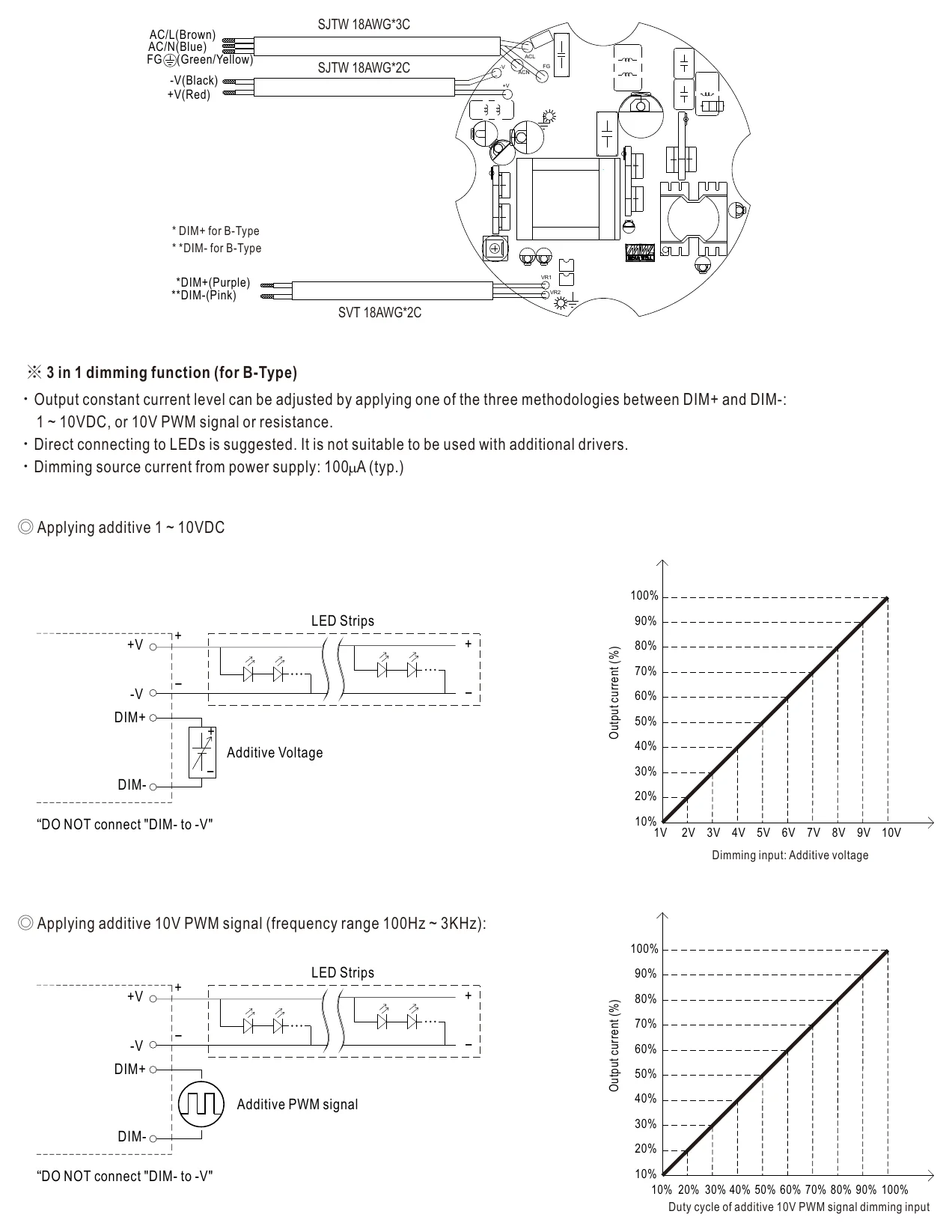

HBG-160P-60B ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-160P-60B ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

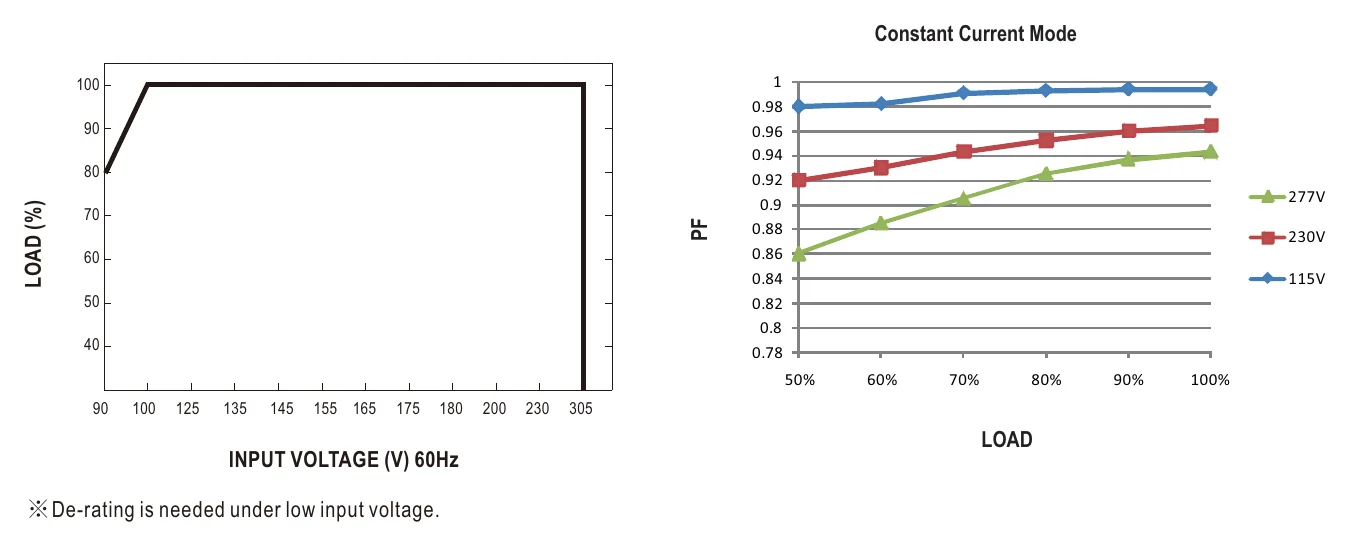

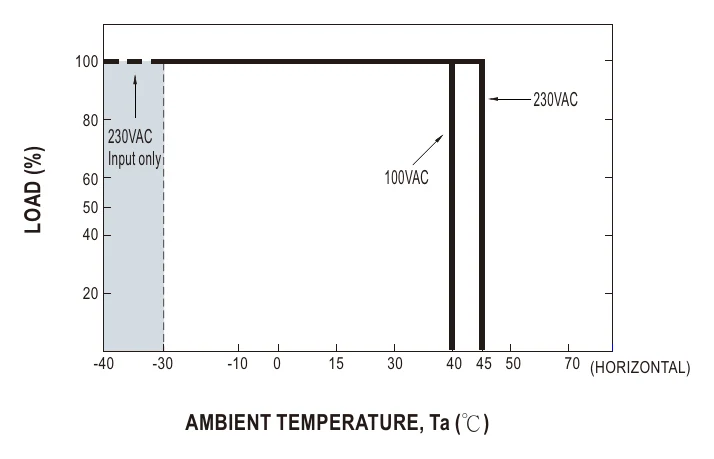

HBG-160P-60B OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-160P-60B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

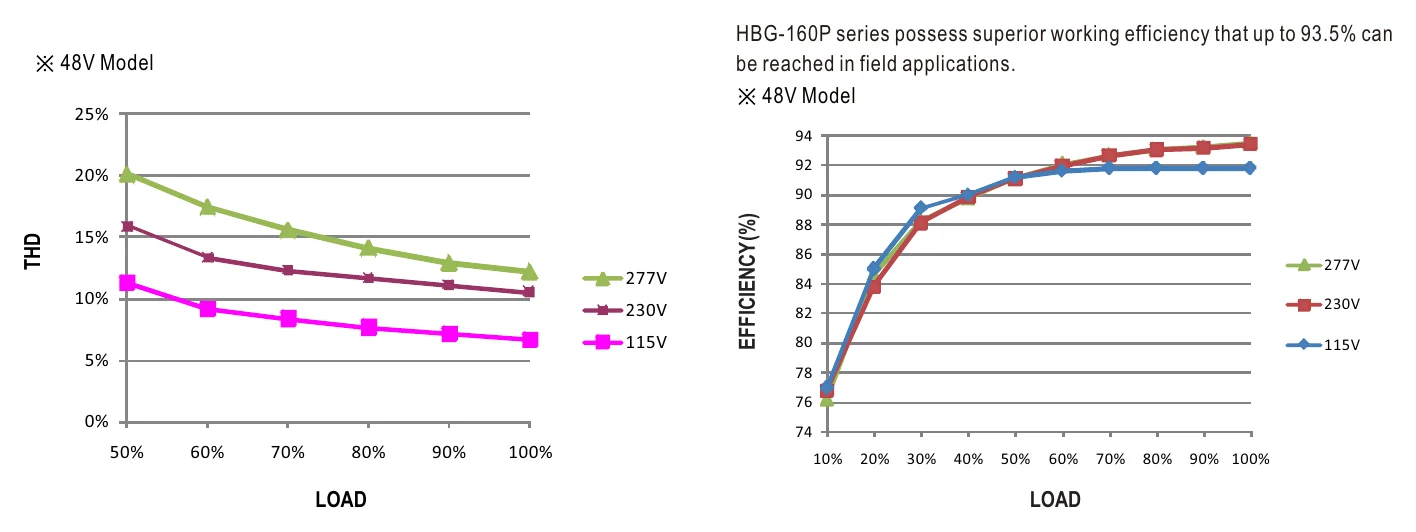

HBG-160P-60B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

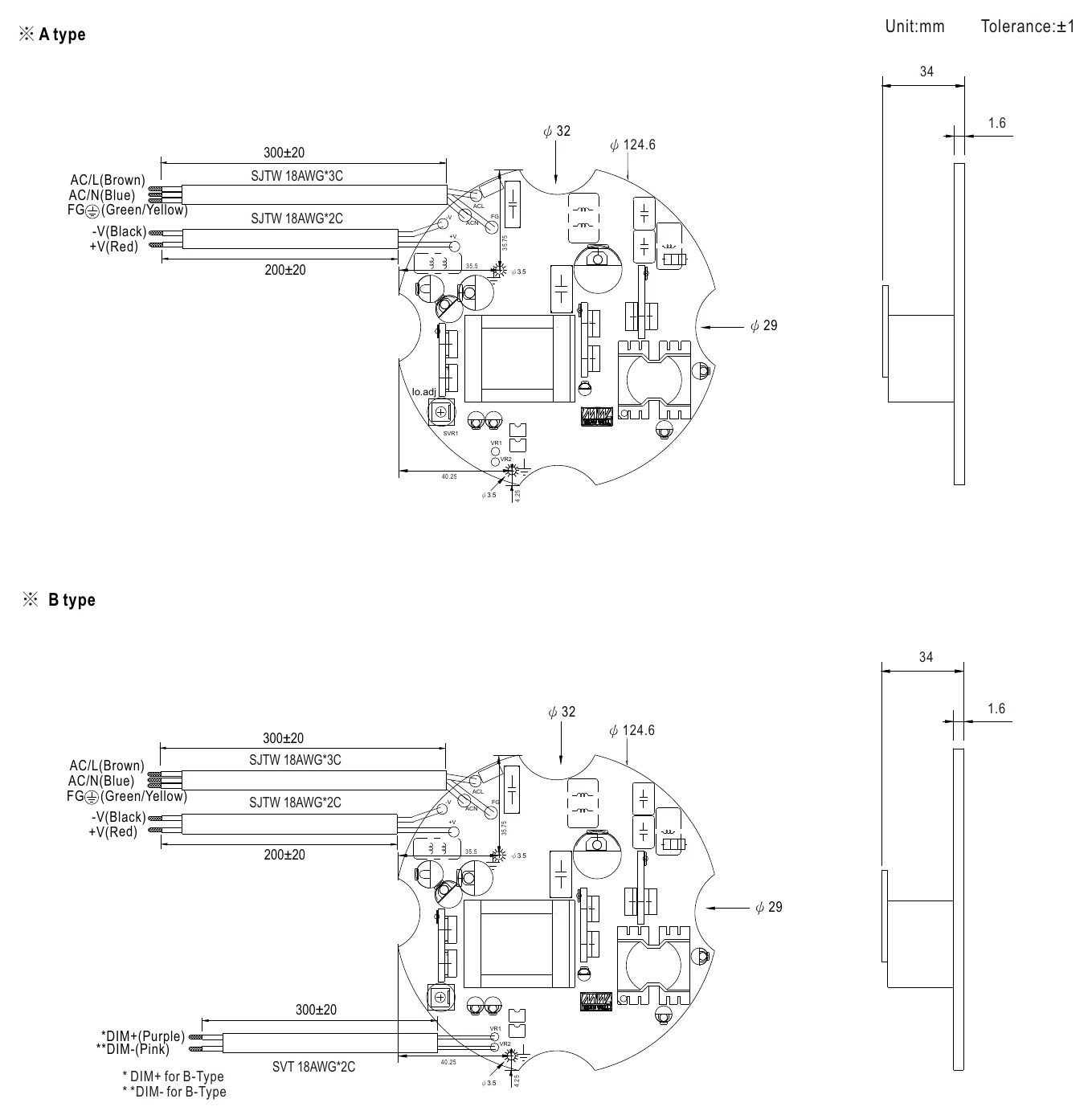

HBG-160P-60B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-60)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of LED driver is the Mean Well HBG-160P-60B?

The HBG-160P-60B is a 160W class (156W rated) Mean Well LED power supply designed for constant voltage and constant current mode output. This model provides a 60V output and a rated current of 2.6A. As the B-Type of the HBG-160P series, it has 3-in-1 dimming.

Is the HBG-160P-60B dimmable?

Yes, this model is dimmable and supports 1-10VDC, 10V PWM (100Hz-3KHz) and resistance dimming between DIM+ and DIM-. Built-in potentiometer adjustment is offered on the A-Type only. That makes this model suitable for projects that need flexible light output control.

Can the Mean Well HBG-160P-60B be used outdoors?

The spec sheet does not state an IP rating for the HBG-160P-60B, so confirm the ingress rating before outdoor use. It is specified for an ambient of -40°C to +45°C, with load derating per the output load vs temperature curve. It is rated for 20-95% RH non-condensing.

What input voltage range does the HBG-160P-60B support?

This model accepts a wide AC input range of 90 to 305VAC, and it also supports 127 to 417VDC input. That broad range helps it fit a variety of commercial and industrial power environments. It also has a built-in PFC circuit (PF≥0.95 at 230VAC).

What applications is the HBG-160P-60B best suited for?

The HBG-160P-60B is best suited for LED lighting systems that need a 60V dimmable driver with 160W-class output. Its 93.5% typical efficiency, -40°C to +45°C operating range and typical life of over 50,000 hours (at about 45°C or less) make it a practical option for demanding lighting projects. Buyers typically choose this model when efficiency and dimming flexibility both matter.

What certifications and protections does this power supply offer?

The HBG-160P-60B is listed with safety approvals including UL8750, CSA C22.2 No. 250.13-12, and ENEC EN61347 standards, along with EMC compliance such as EN55015 and EN61000-3-2 Class C. It also has over-current protection with constant current limiting, over-voltage protection (65-75V) and over-temperature protection. These characteristics make it suitable for professional lighting use where compliance and protection are important.

What are the physical size and weight of the HBG-160P-60B?

The mechanical drawing shows a circular case of about 124.6mm diameter. The packing weight is listed as 0.4kg per unit. For other dimensions, refer to the mechanical specification on the HBG-160P sheet.
