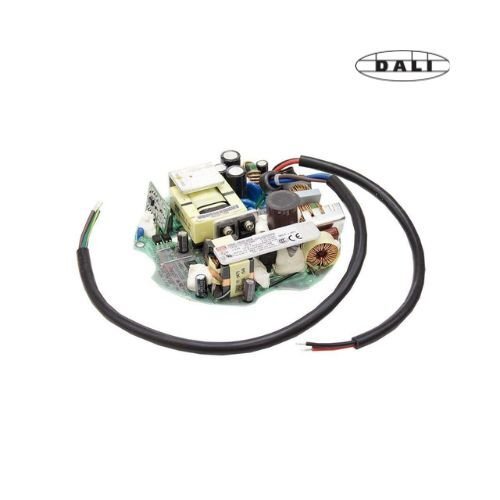

Mean Well HBG-160P-48DA Power Supply 160W 48V PCB Type - DALI
The HBG-160P is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
What type of LED applications is the Mean Well HBG-160P-48DA designed for?
The HBG-160P-48DA is a 160W 48V LED driver intended for constant voltage and constant current LED lighting applications. Its DALI dimming support and IP67/IP65-rated housing make it suitable for commercial and architectural lighting projects where dimming control and durability matter.
Does this model support DALI dimming?
Yes. The HBG-160P-48DA includes DALI dimming as one of its function options. The product description also lists output adjustment via potentiometer and 3-in-1 dimming among the available control features for this series.
What are the main electrical ratings of the HBG-160P-48DA?
This model is rated at 160W class power, with a listed power rating of 158.4W, 48V output, and 3.3A rated current. It accepts a wide 90 to 305VAC input range and includes active power factor correction.
Can this power supply be used in outdoor or harsh environments?
It is built for demanding environments with an IP67/IP65 rating, which supports use in indoor or outdoor installations. The specified operating temperature range is -40°C to +85°C, making it appropriate for challenging ambient conditions when the overall application is designed within product limits.
How does this model differ from a basic non-dimming 48V LED driver?
Compared with a basic 48V LED driver, the HBG-160P-48DA adds DALI dimming capability and supports both constant voltage and constant current operation. It also uses a circular plastic housing with Class I design and is intended for longer-life applications, with a typical lifetime over 50,000 hours and a 5-year warranty.
What certifications and compliance standards are listed for this model?
The HBG-160P-48DA lists multiple safety approvals including UL8750, CSA C22.2 No. 250.13-12, and ENEC EN61347 series compliance, along with EN62384 and other regional approvals. EMC standards listed include EN55015, EN61000-3-2 Class C, and several EN61000-4 immunity standards.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBG-160P Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-160P-60DA Power Supply 160W 60V PCB Type - DALI | 156W | 60V | 2.6A | IP67 | $82.56 | View |
| Mean Well HBG-160P-60B Power Supply 160W 60V PCB Type - Dimmable | 156W | 60V | 2.6A | IP67 | $75.05 | View |
| Mean Well HBG-160P-60A Power Supply 160W 60V PCB Type - Adjustable | 156W | 60V | 2.6A | IP65 | $78.04 | View |
| Mean Well HBG-160P-48B Power Supply 160W 48V PCB Type - Dimmable | 158.4W | 48V | 3.3A | IP67 | $70.97 | View |
| Mean Well HBG-160P-48A Power Supply 160W 48V PCB Type - Adjustable | 158.4W | 48V | 3.3A | IP65 | $71.07 | View |
| Mean Well HBG-160P-36DA Power Supply 160W 36V PCB Type - DALI | 158.4W | 36V | 4.4A | IP67 | $82.57 | View |
| Mean Well HBG-160P-36B Power Supply 160W 36V PCB Type - Dimmable | 158.4W | 36V | 4.4A | IP67 | $74.59 | View |
| Mean Well HBG-160P-36A Power Supply 160W 36V PCB Type - Adjustable | 158.4W | 36V | 4.4A | IP65 | $73.11 | View |
