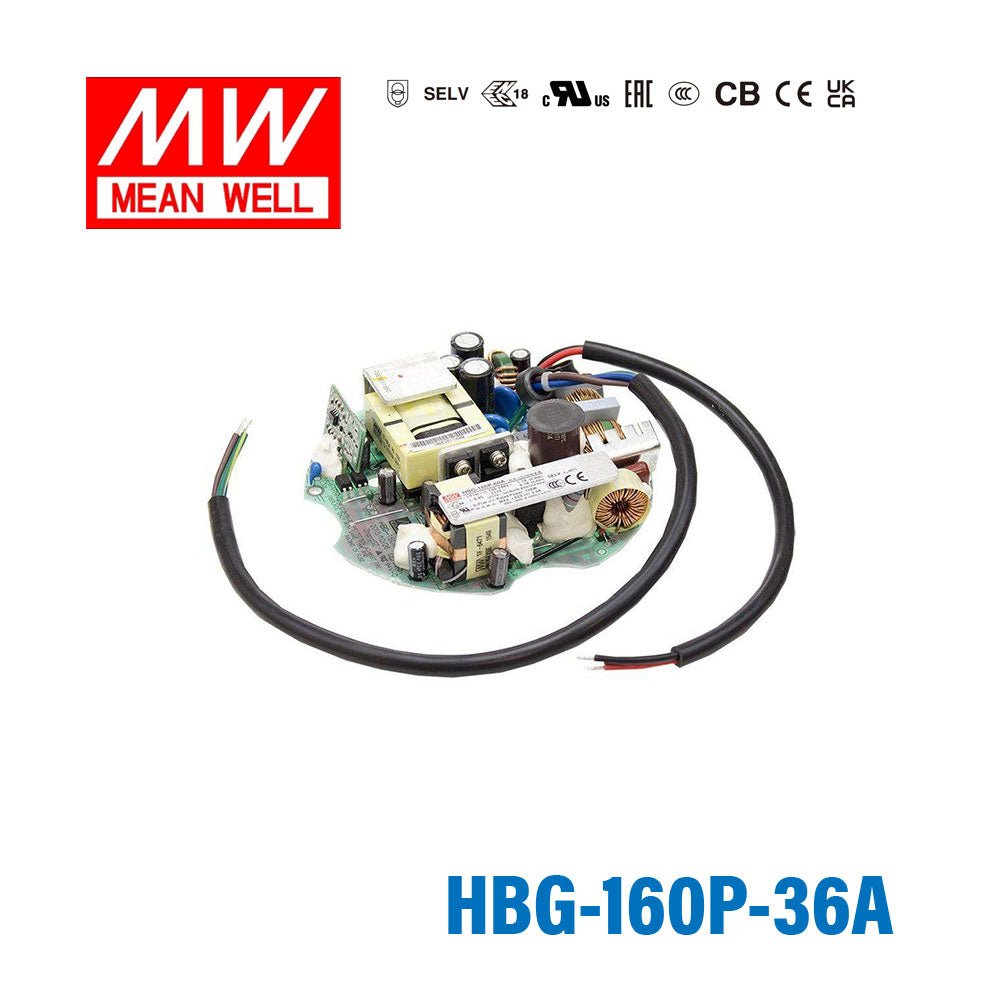

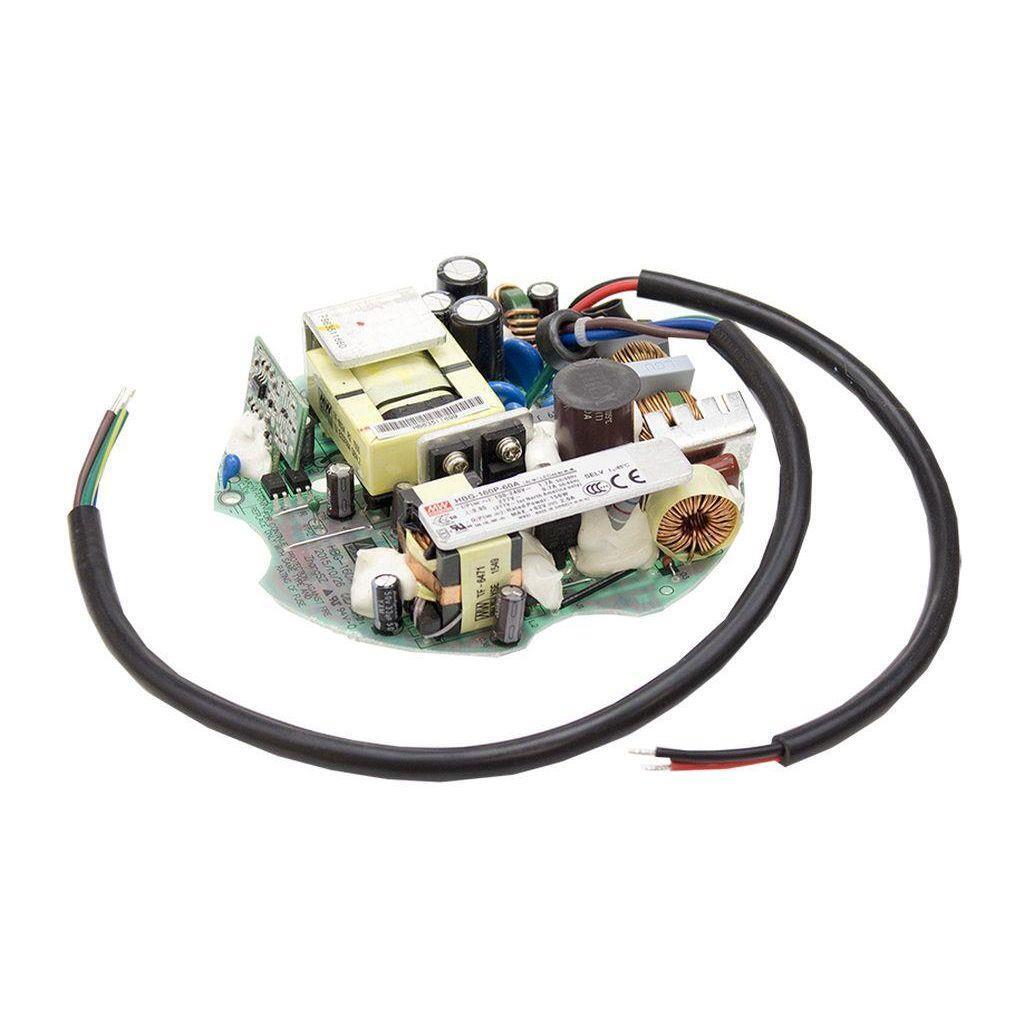

Mean Well HBG-160P-36A Power Supply 160W 36V PCB Type

Name: Mean Well HBG-160P-36A Power Supply 160W 36V PCB Type - Adjustable 4.4A
Brand: Mean Well
SKU: HBG-160P-36A
Price: 73.11 USD
Availability: InStock

Overview

HBG-160P-36A is the 36V output model of this series: rated current 4.4A, rated power 158.4W, typical efficiency 92%.

HBG-160P series is a 160W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-160P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifet ime>50000 hours
5 years warranty

Specifications

HBG-160P-36ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
RATED CURRENT: 4.4A
RATED POWER^Note.5: 158.4W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 2.6 ~ 4.4A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.7: 92%
AC CURRENT: 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 47V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.12: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.4Kg; 36pcs/15.4Kg/1.35CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-160P-36A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160P-36A DIMMING OPERATION — DIMMING OPERATION

HBG-160P-36A ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-160P-36A ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-160P-36A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-160P-36A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160P-36A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160P-36A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-36)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of output does the Mean Well HBG-160P-36A provide?

The HBG-160P-36A is a 36V model rated for 160W class output, with a listed power rating of 158.4W and rated current of 4.4A. It is designed for constant voltage plus constant current mode operation, which makes it suitable for LED power applications that require stable output behavior.

Is the HBG-160P-36A suitable for outdoor or wet-location use?

The spec sheet does not state an IP rating for this model, so confirm the ingress rating before outdoor or wet-location installation. It is specified for an ambient of -40°C to +45°C (with load derating per the output load vs temperature curve) and 20-95% RH non-condensing.

Does this power supply support output adjustment or dimming?

Output adjustment, yes. As the A-Type, it has a built-in potentiometer that adjusts output current from 2.6A to 4.4A. It has no dimming inputs: 3-in-1 dimming (1-10VDC, 10V PWM, resistance) is on the B-Type, so buyers should match the exact suffix to the control method they need.

What input voltage range does the Mean Well HBG-160P-36A accept?

The HBG-160P-36A accepts a wide 90 to 305VAC input range, and it also lists 127 to 417VDC input capability. That broad range makes it practical for commercial and industrial projects where input conditions may vary across regions or sites.

What operating temperatures can this model handle?

This model is specified for an ambient operating temperature of -40°C to +45°C, with load derating according to the output load vs temperature curve. Storage is rated -40°C to +80°C.

What certifications and compliance standards are listed for this model?

The HBG-160P-36A lists safety approvals including UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, GB/T19510.1, GB/T19510.213, and EAC TP TC 004. EMC standards listed include EN55015, EN61000-3-2 Class C, and multiple EN61000-4 immunity standards.

How durable is the Mean Well HBG-160P-36A for long-term use?

The spec sheet states a typical life expectancy of more than 50,000 hours when the ambient is about 45°C or less, and an MTBF of 2612.1K hours min. (Telcordia SR-332). For the warranty, it refers to the statement on MEAN WELL's website. That long service life suits commercial lighting projects where reduced maintenance is important.
