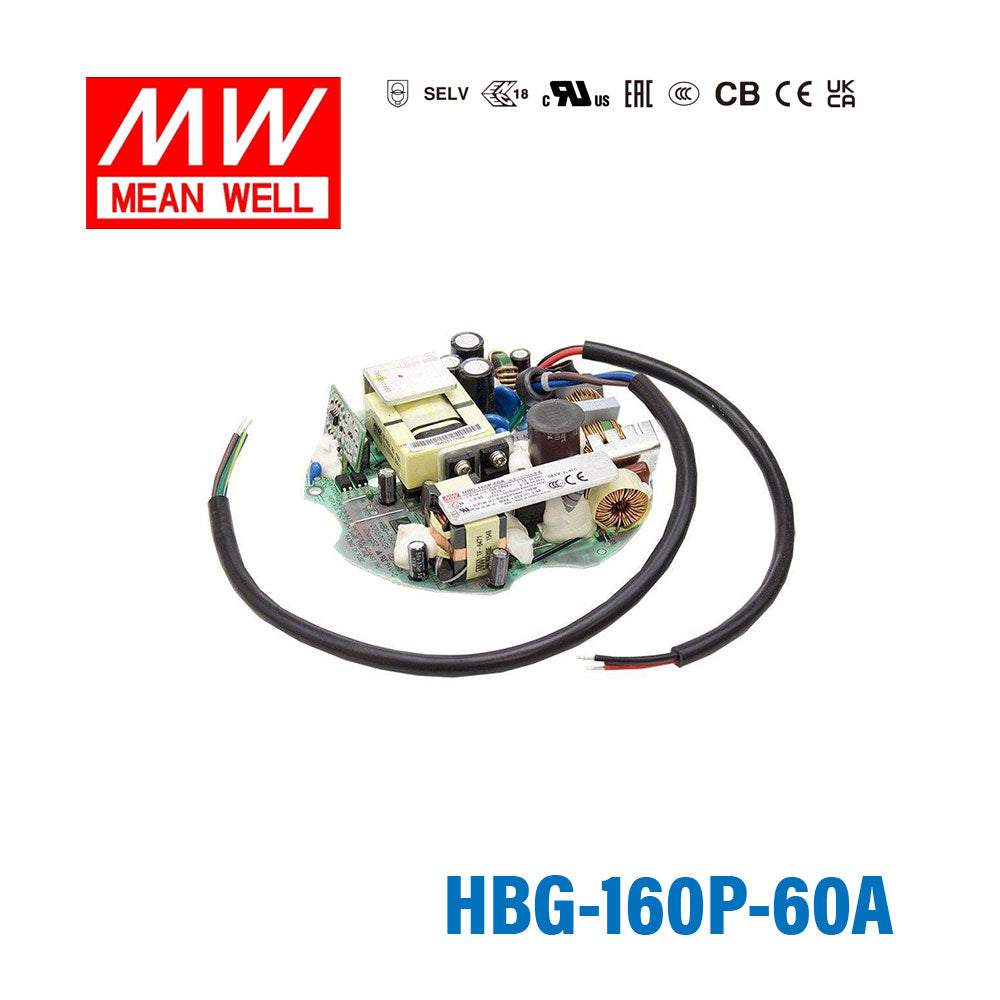

Mean Well HBG-160P-60A Power Supply 160W 60V PCB Type

Name: Mean Well HBG-160P-60A Power Supply 160W 60V PCB Type - Adjustable 2.6A
Brand: Mean Well
SKU: HBG-160P-60A
Price: 78.04 USD
Availability: InStock

Overview

HBG-160P-60A is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%.

HBG-160P series is a 160W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-160P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular shape PCB type design
Built-in active PFC function
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifet ime>50000 hours
5 years warranty

Specifications

HBG-160P-60ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 2.6A
RATED POWER^Note.5: 156W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
CURRENT ADJ. RANGE: Adjustable for A-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.6 ~ 2.6A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.7: 93.5%
AC CURRENT: 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.12: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 0.4Kg; 36pcs/15.4Kg/1.35CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. All functional testing must be filled with potting,including OTP function .

Technical drawings

HBG-160P-60A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160P-60A DIMMING OPERATION — DIMMING OPERATION

HBG-160P-60A ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-160P-60A ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-160P-60A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-160P-60A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160P-60A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160P-60A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED down lighting
LED spot lighting
LED mining lighting
LED stage lighting

Downloads

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-60)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What type of LED power application is the Mean Well HBG-160P-60A designed for?

The HBG-160P-60A is designed for LED power applications that use a 60V output and benefit from constant voltage plus constant current operation (constant current region 36-60V). Its 160W class design (156W rated) makes it suitable for higher-power commercial and industrial lighting use cases.

What are the key electrical specifications of the HBG-160P-60A?

This model is rated at 156W with a 60V output and 2.6A rated current. It accepts a wide 90 to 305VAC input range, or 127 to 417VDC, which supports use across a broad range of supply conditions.

Is the output adjustable on the Mean Well HBG-160P-60A?

Yes. As the A-Type, this version has a built-in potentiometer for output adjustment, and the listed current adjustment range is 1.6A to 2.6A. That makes it useful when a project needs some current tuning within the model's rated operating range.

Can the HBG-160P-60A be used in outdoor or harsh environments?

The spec sheet does not state an IP rating, so confirm the ingress rating before outdoor installation. It is specified for an ambient of -40°C to +45°C (with load derating) and 20-95% RH non-condensing, which helps in demanding conditions.

What makes the HBG-160P-60A different from a basic indoor LED power supply?

Compared with a basic fixed-output unit, this model adds potentiometer current adjustment, a built-in PFC circuit (PF≥0.95 at 230VAC), and constant voltage plus constant current operation. It also offers over-current, over-voltage (65-75V) and over-temperature protection, which suit more demanding lighting applications.

Does the HBG-160P-60A meet common lighting safety and EMC standards?

Yes. The spec sheet lists approvals including UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13, EN62384, and EAC TP TC 004, along with EMC standards such as EN55015 and EN61000-3-2 Class C. That makes it a strong fit for buyers who need a commercially specified LED driver with recognized compliance coverage.

What warranty and service-life expectations are listed for this model?

For the warranty, the spec sheet refers to the statement on MEAN WELL's website. It states a typical life expectancy of more than 50,000 hours when the ambient is about 45°C or less, which supports long-term LED lighting deployments.
