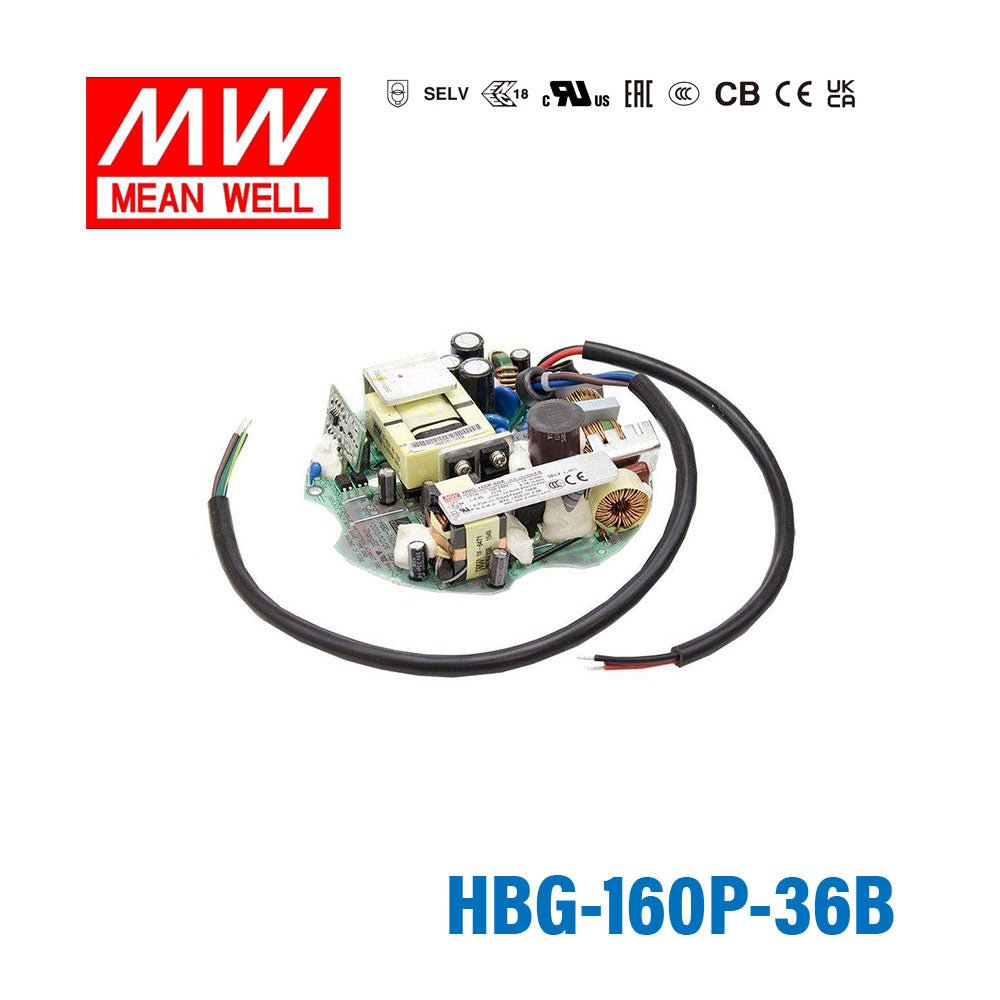

Mean Well HBG-160P-36B Power Supply 160W 36V PCB Type - Dimmable 4.4A
Overview
HBG-160P-36B is the 36V output model of this series: rated current 4.4A, rated power 158.4W, typical efficiency 92%.
HBG-160P series is a 160W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90～305VAC and offers the dual mode constant voltage and constant current output models with different rated voltage ranging between 36V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +45℃ under free air convection. HBG-160P is equipped with various function options, such as dimming methodology, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Circular shape PCB type design
- Built-in active PFC function
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifet ime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.2
- 21.6 ~ 36V
- RATED CURRENT
- 4.4A
- RATED POWERNote.5
- 158.4W
- RIPPLE & NOISE (max.)Note.3
- 300mVp-p
- CURRENT ADJ. RANGE
- Adjustable for A-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 2.6 ~ 4.4A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms/115VAC,230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.7
- 92%
- AC CURRENT
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 41 ~ 47V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.12
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Ta=-40 ~ +45℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 45℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020
OTHERS
- MTBF
- 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- Refer to mechanical specification
- PACKING
- 0.4Kg; 36pcs/15.4Kg/1.35CUFT
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Ta is about 45℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. All functional testing must be filled with potting,including OTP function .
Technical drawings
Typical applications
- LED bay lighting
- LED down lighting
- LED spot lighting
- LED mining lighting
- LED stage lighting
Downloads
Certificates5
Test reports1
FAQ
What are the main output specifications of the Mean Well HBG-160P-36B?
The HBG-160P-36B is a 160W class LED power supply with a 36V output and a rated current of 4.4A. Its listed power rating is 158.4W. This model operates in constant voltage plus constant current mode.
What dimming methods does the HBG-160P-36B support?
As the B-Type, this model has 3-in-1 dimming: output current is set between DIM+ and DIM- by 1-10VDC, a 10V PWM signal (100Hz-3KHz) or resistance. That makes it suitable for projects that need adjustable light output without changing the power supply model.
Is the Mean Well HBG-160P-36B suitable for outdoor or harsh environments?
The spec sheet does not state an IP rating, so confirm the ingress rating before outdoor installation. It is specified for an ambient of -40°C to +45°C (with load derating at higher temperatures) and 20-95% RH non-condensing. Within those limits it suits demanding commercial and industrial lighting environments.
What types of applications is this power supply commonly used for?
The HBG-160P-36B is intended for LED lighting applications that require a 36V constant voltage plus constant current power supply with dimming capability. Its built-in PFC (PF≥0.95 at 230VAC) and broad 90-305VAC input range make it a fit for commercial and architectural LED systems. Buyers typically choose this model when efficiency and dimming flexibility are both important.
What input range does the HBG-160P-36B support?
This model accepts a wide AC input voltage range of 90-305VAC and a DC input range of 127-417VDC. That broad range helps it work across many standard power environments. It also has a built-in PFC circuit, with PF≥0.98 at 115VAC and PF≥0.95 at 230VAC.
How does the HBG-160P-36B compare to non-dimmable LED power supplies?
The HBG-160P-36B stands out by combining 36V output, 160W-class capacity (158.4W) and 3-in-1 dimming (1-10V, 10V PWM, resistance) in one unit. It also includes over-current, over-voltage and over-temperature protection. For buyers comparing models, the dimming support and protection features are key differentiators.
What warranty and service life can buyers expect from this model?
For the warranty, the spec sheet refers to the statement on MEAN WELL's website. It states a typical life expectancy of more than 50,000 hours when the ambient is about 45°C or less, and an MTBF of 2612.1K hours min. (Telcordia SR-332). Those details suit buyers looking for long service life and lower maintenance frequency.
