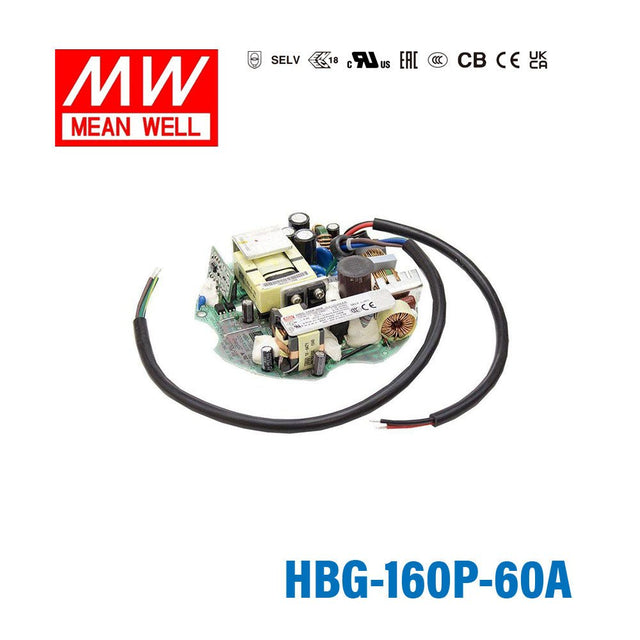

Mean Well HBG-160P-60A Power Supply 160W 60V PCB Type - Adjustable
The HBG-160P is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
What type of LED power application is the Mean Well HBG-160P-60A designed for?
The HBG-160P-60A is designed for LED power applications that use a 60V output and benefit from constant voltage plus constant current operation. Its 160W class design makes it suitable for higher-power commercial and industrial lighting use cases where a durable enclosed driver is needed.
What are the key electrical specifications of the HBG-160P-60A?
This model is rated at 156W with a 60V output and 2.6A rated current. It accepts a wide 90 to 305VAC input range, or 127 to 417VDC, which supports use across a broad range of supply conditions.
Is the output adjustable on the Mean Well HBG-160P-60A?
Yes. This version includes output adjustment via potentiometer, and the listed DC adjustment range is 65% to 100% of rated current. That makes it useful when a project needs some current tuning within the model's rated operating range.
Can the HBG-160P-60A be used in outdoor or harsh environments?
Yes, this model is rated IP67 / IP65 for indoor or outdoor installations. It also supports a wide operating temperature range of -40°C to +85°C, which helps in demanding environmental conditions.
What makes the HBG-160P-60A different from a basic indoor LED power supply?
Compared with a basic indoor-only unit, this model adds a sealed circular plastic housing, active PFC, and constant voltage plus constant current operation. It also offers environmental protection ratings and a wider temperature range that make it better suited for more demanding lighting applications.
Does the HBG-160P-60A meet common lighting safety and EMC standards?
Yes. The product description lists approvals including UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13, EN62384, and EAC TP TC 004, along with EMC standards such as EN55015 and EN61000-3-2 Class C. That makes it a strong fit for buyers who need a commercially specified LED driver with recognized compliance coverage.
What warranty and service-life expectations are listed for this model?
Mean Well lists a 5-year warranty for the HBG-160P-60A. The product features also state a typical lifetime of more than 50,000 hours, which supports long-term LED lighting deployments.
