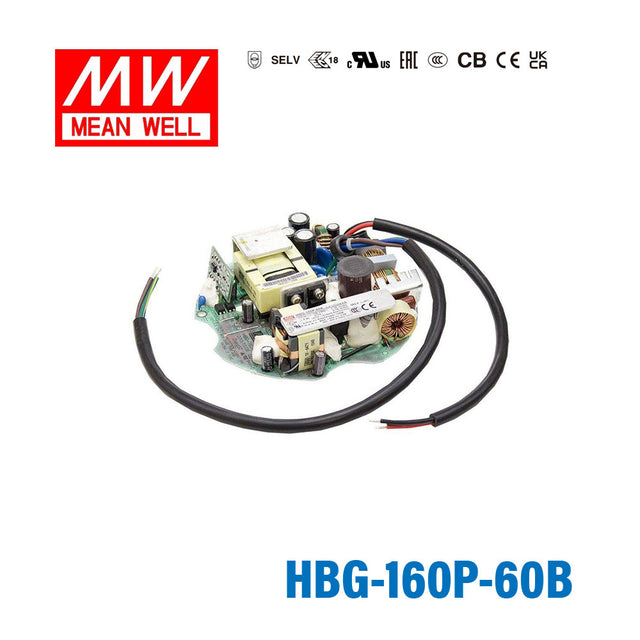

Mean Well HBG-160P-60B Power Supply 160W 60V PCB Type - Dimmable
The HBG-160P is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGP Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Mean Well HBG-160P-60B?
The HBG-160P-60B is a 160W Mean Well LED power supply designed for constant voltage and constant current mode output. This model provides a 60V output and a rated current of 2.6A. It is part of Mean Well's HBG series for demanding lighting applications.
Is the HBG-160P-60B dimmable?
Yes, this model is dimmable and supports 1-10V, 10V PWM, and resistance-based dimming control. The product description also lists output adjustment via potentiometer as a function option. That makes it suitable for projects that need flexible light output control.
Can the Mean Well HBG-160P-60B be used outdoors?
Yes, the HBG-160P-60B is rated IP67 / IP65, which supports use in indoor or outdoor environments. Its circular plastic housing and Class I design are intended for more demanding installation conditions. It is also specified for operation from -40°C to +85°C.
What input voltage range does the HBG-160P-60B support?
This model accepts a wide AC input range of 90 to 305VAC, and it also supports 127 to 417VDC input. That broad range helps it fit a variety of commercial and industrial power environments. It also includes built-in active PFC functionality.
What applications is the HBG-160P-60B best suited for?
The HBG-160P-60B is best suited for LED lighting systems that need a 60V dimmable driver with 160W-class output. Its sealed housing, wide operating temperature range, and long listed lifetime make it a practical option for demanding indoor or outdoor lighting projects. Buyers typically choose this model when durability and dimming flexibility both matter.
What certifications and protections does this power supply offer?
The HBG-160P-60B is listed with safety approvals including UL8750, CSA C22.2 No. 250.13-12, and ENEC EN61347 standards, along with additional EMC compliance details in the specification. It also includes over-current protection with constant current limiting. These characteristics make it suitable for professional lighting use where compliance and protection are important.
What are the physical size and weight of the HBG-160P-60B?
This model measures 151.68mm in diameter by 66.5mm high. Its listed weight is 1.53kg. Those dimensions reflect the circular housing format used in the HBG series.
