Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

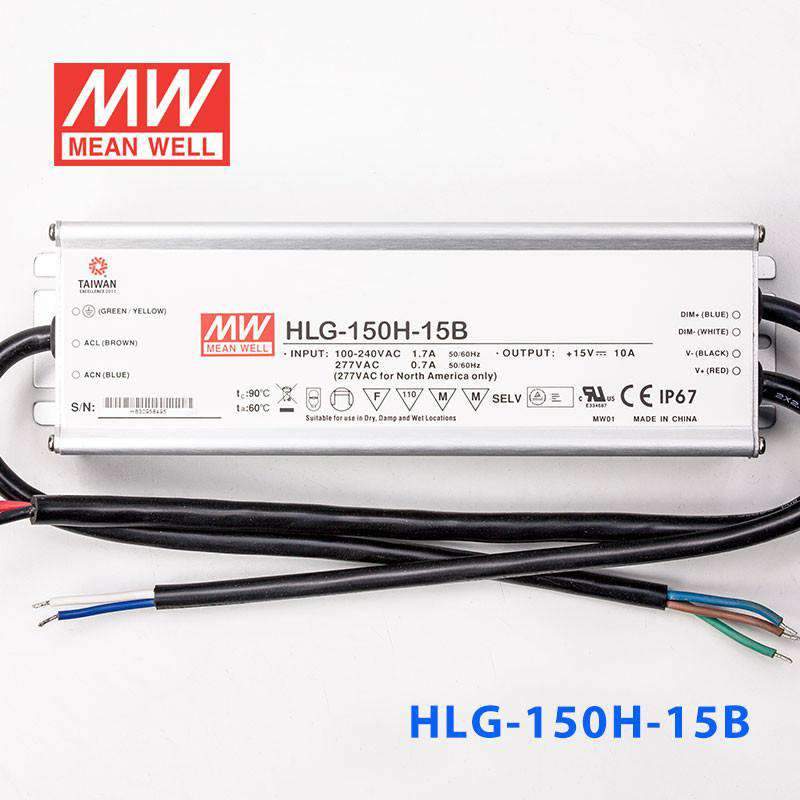

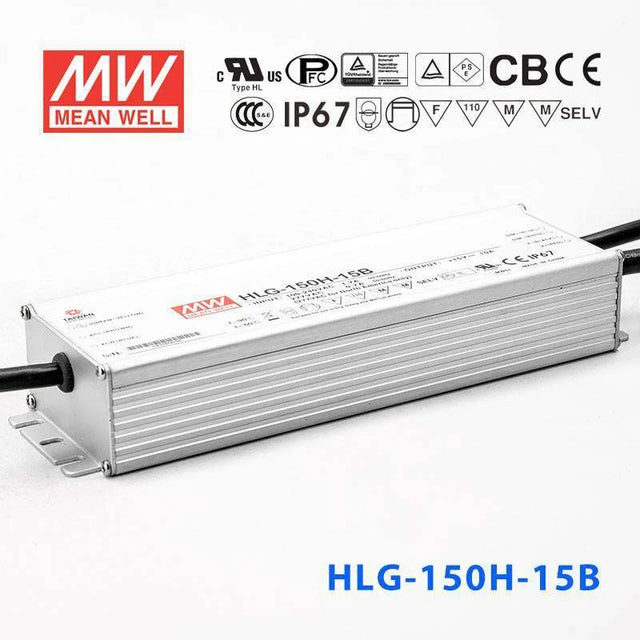

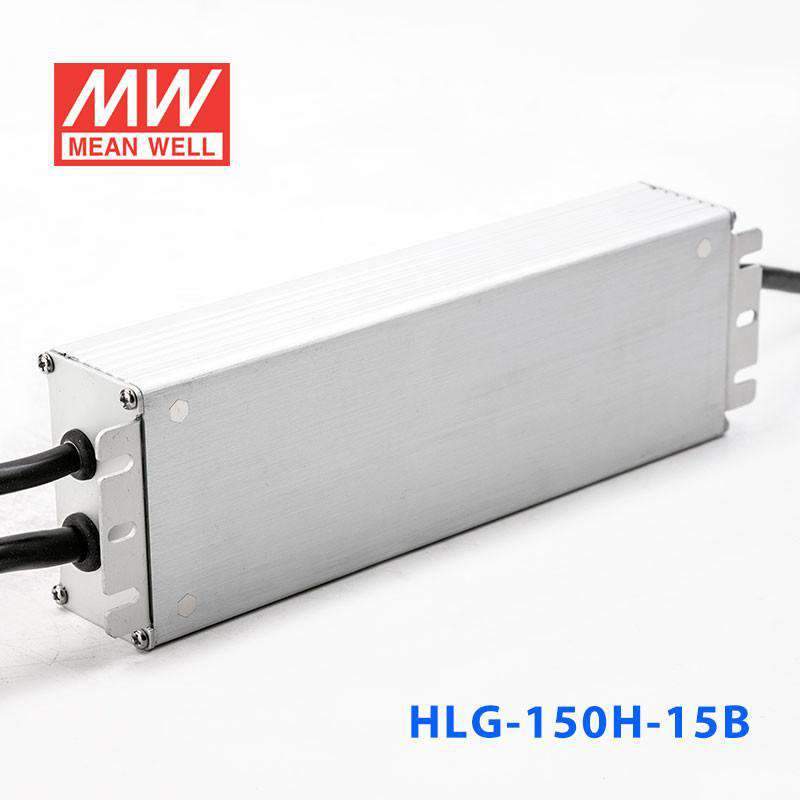

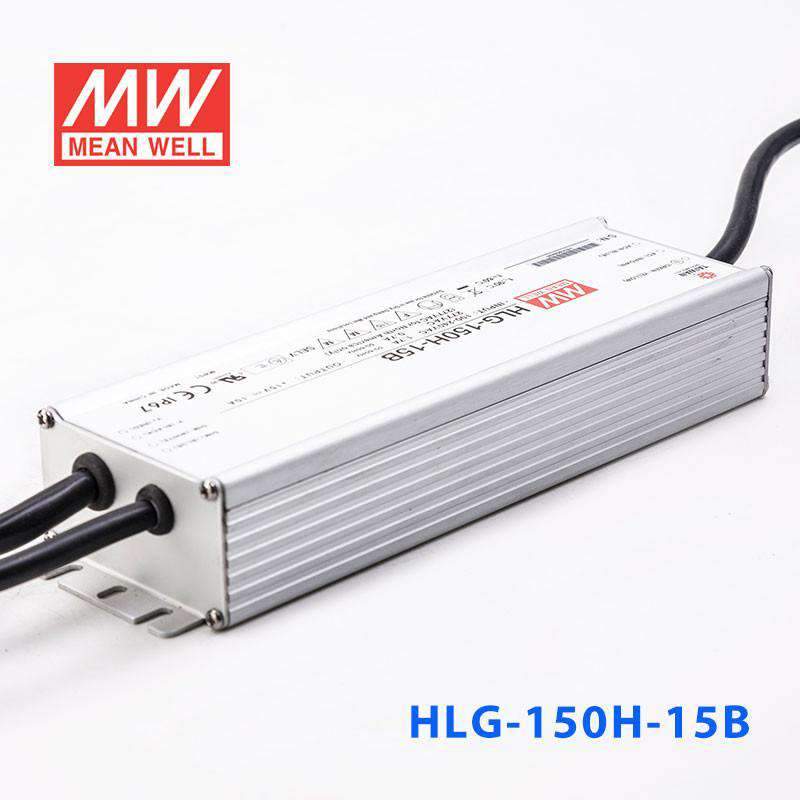

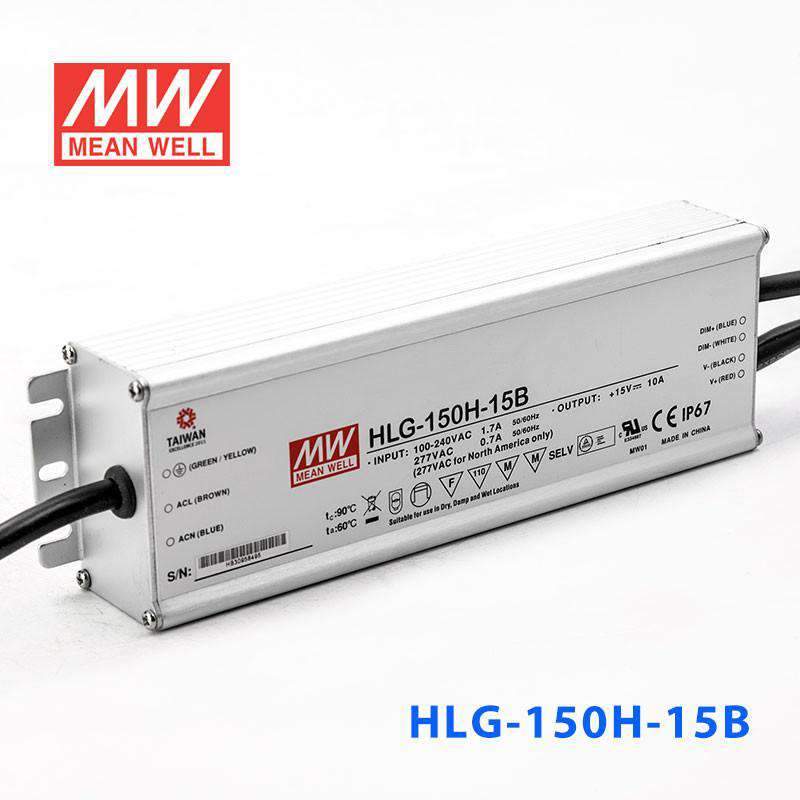

Mean Well HLG-150H-15B Power Supply 150W 15V - Dimmable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-15B for outdoor 15V dimmable LED strip lighting?
Yes. The HLG-150H-15B delivers 15V at up to 10A (150W) with dimming capability and an IP67 waterproof rating. It is ideal for outdoor 15V LED strip installations requiring brightness control in locations exposed to rain, dust, or temporary submersion.
Is the HLG-150H-15B suitable for dimmable 15V LED parking structure lighting?
It is a strong fit for parking structures where weatherproof dimmable drivers are needed. The IP67 rating handles moisture, dust, and vehicle exhaust environments, while the dimming input allows you to reduce brightness during low-traffic hours for energy savings. The 150W output handles typical parking bay LED arrays.
Can I power a dimmable 15V LED canopy light with the HLG-150H-15B?
Yes, provided the canopy light load stays within 150W at 15V. The dimming input allows automated brightness control, for example via a photocell or timer, to reduce output during daylight hours. The IP67 waterproof rating means the driver can be mounted in exposed canopy housings without additional weather shielding.
How many meters of 15V LED strip can the HLG-150H-15B power?
The HLG-150H-15B delivers up to 150W at 15V. Divide 150W by your strip's rated power per meter. For example, a strip rated at 7.5W/m could run up to 20 meters (150W / 7.5W per meter = 20m). Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-15B be installed in a coastal environment with salt air exposure?
The IP67 waterproof rating and sealed aluminium casing provide strong protection against salt air, spray, and moisture. The -40°C to +90°C operating range also handles coastal temperature conditions. For maximum longevity in harsh salt environments, placing the driver in a ventilated IP-rated enclosure adds an extra layer of protection.
How does the HLG-150H-15B compare to the HLG-150H-15AB?
Both offer dimming on the same 150W, 15V, 10A platform. The HLG-150H-15B has fixed output and IP67 waterproof protection, while the HLG-150H-15AB adds an adjustable output potentiometer but carries an IP65 water-resistant rating. Choose the -15B for fully exposed outdoor installations and the -15AB when you need output fine-tuning in a sheltered location.
