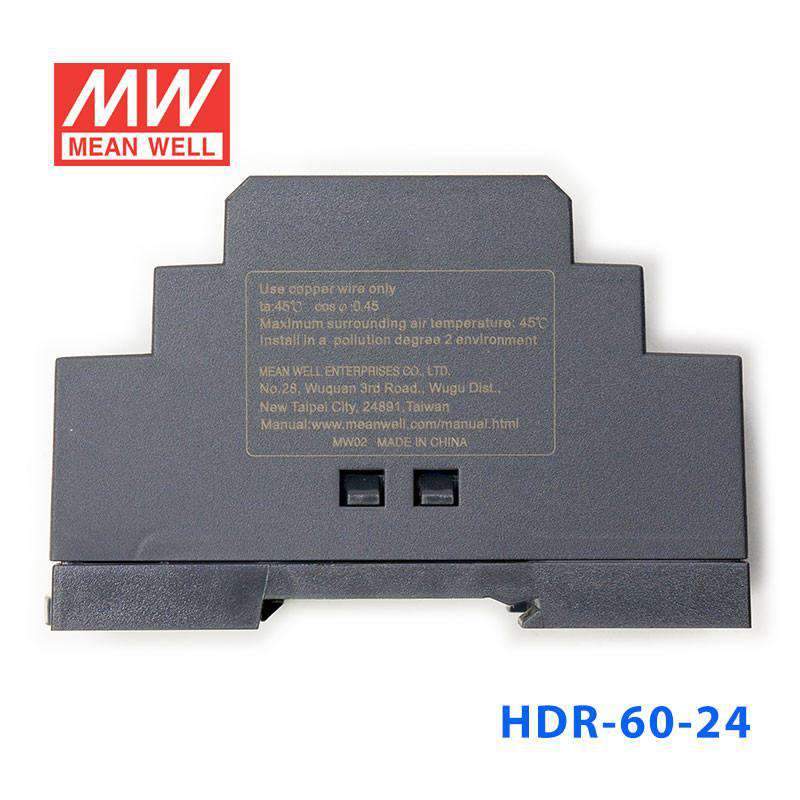

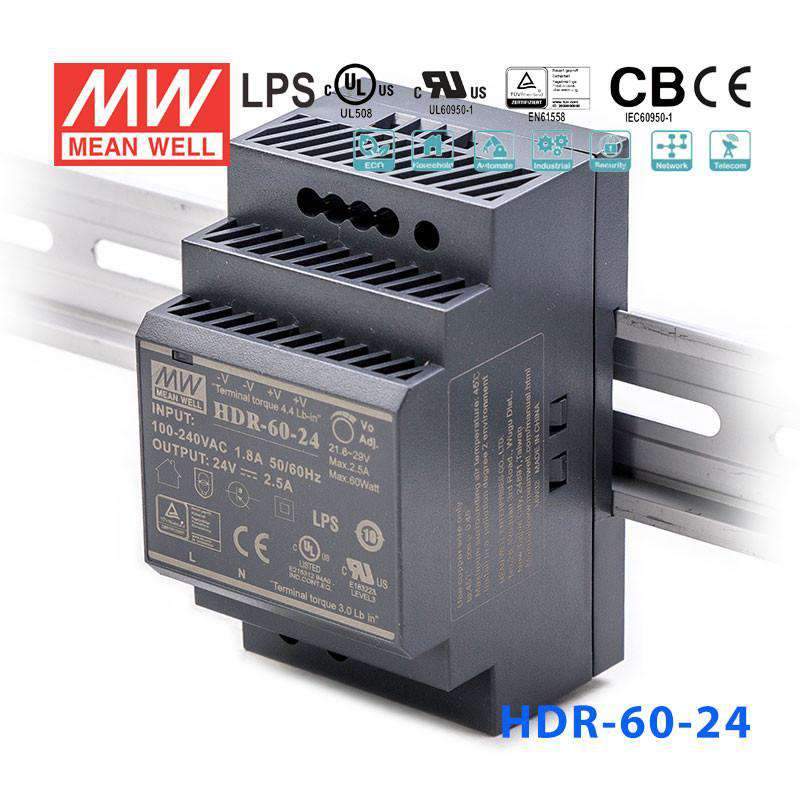

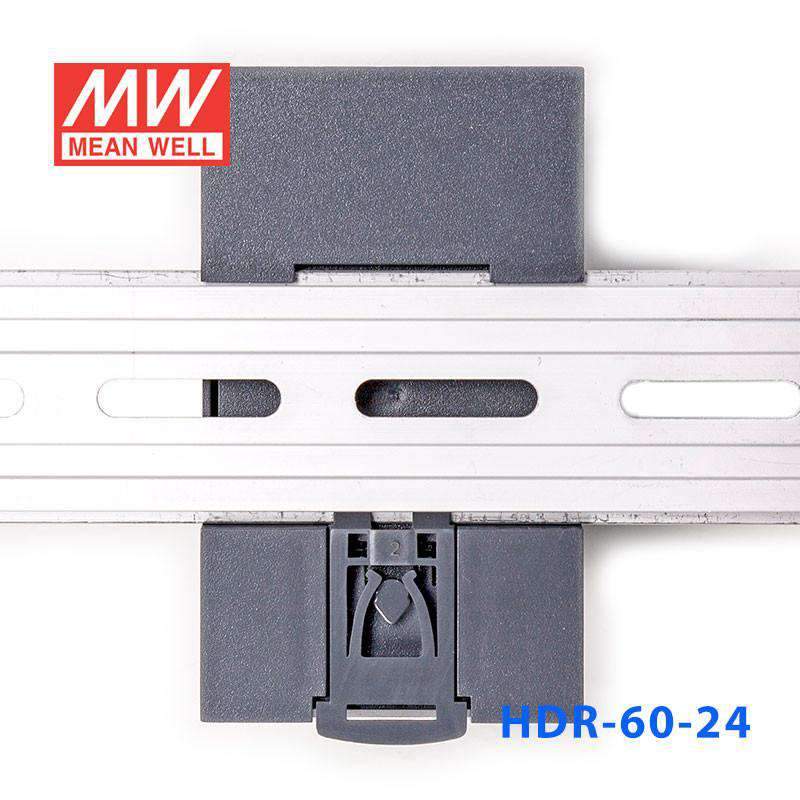

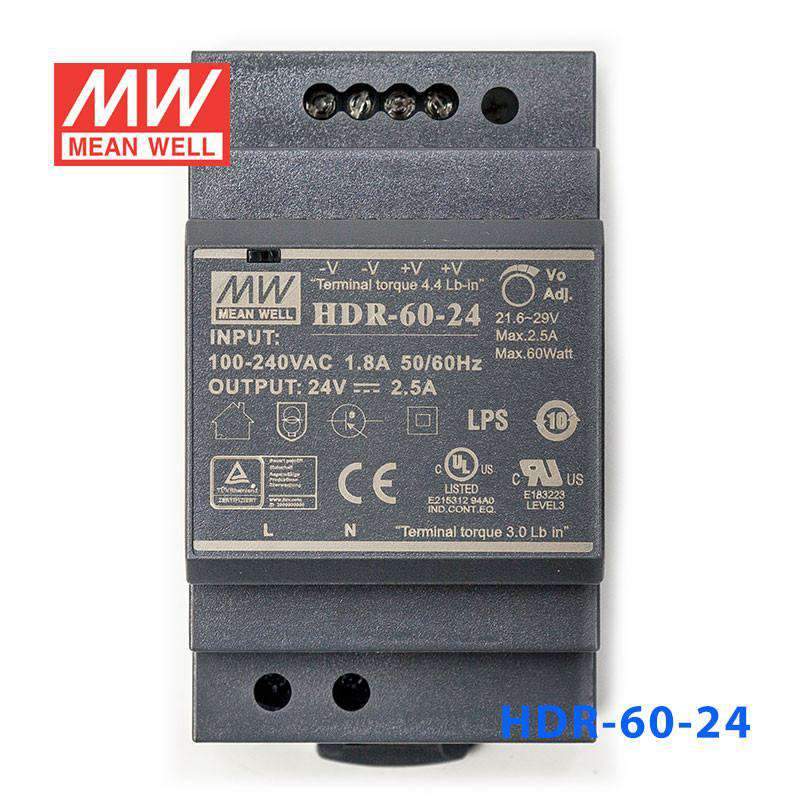

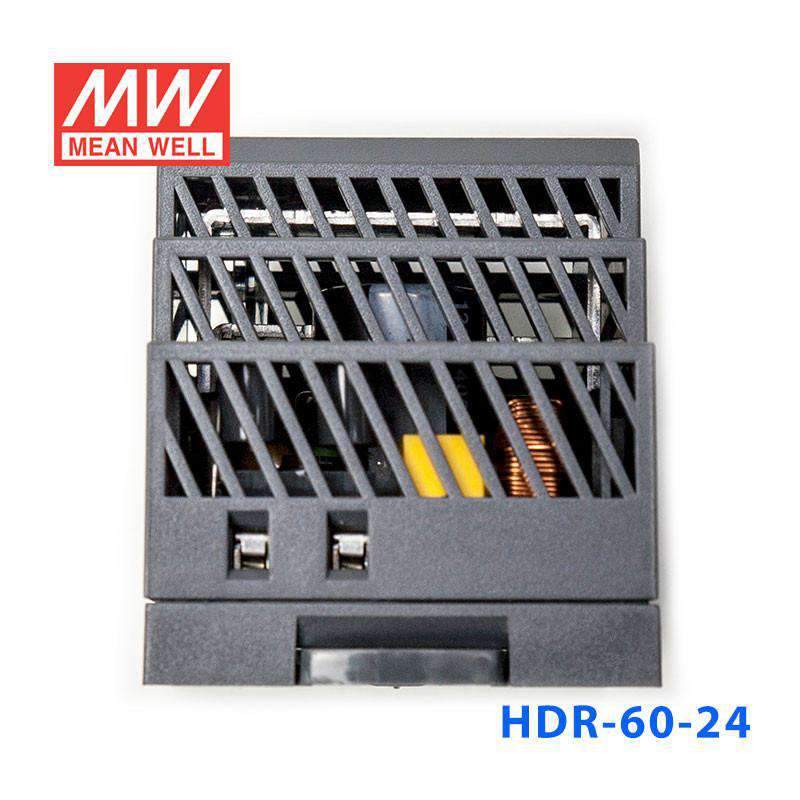

Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DI...
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
What 24V automation equipment can the HDR-60-24 power in a control panel?
At 60W and 2.5A on a 24VDC bus, the HDR-60-24 suits mid-sized 24V loads such as PLC CPU modules with moderate I/O, building management field controllers, and 24V industrial Ethernet switches in DIN rail enclosures. The slim step-shape profile conserves panel space.
How does the HDR-60-24 compare to the HDR-30-24 and HDR-100-24 for 24V selection?
HDR-30-24: 36W / 1.5A. HDR-60-24: 60W / 2.5A. HDR-100-24: 92W / 3.83A. HDR-100-24N: 100.8W / 4.2A. HDR-150-24: 127.4W / 5.31A. The HDR-60-24 is the mid-range option, delivering 67% more current than the HDR-30-24 in the same DIN rail format.
What certifications does the HDR-60-24 hold?
The HDR-60-24 carries BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. It supports isolation class II and features an adjustable DC output voltage.
Can the HDR-60-24 handle cold-start conditions in an outdoor enclosure?
The HDR-60-24 operates from -30°C to +70°C, supporting cold-start in unheated outdoor cabinets. Installation inside a sealed enclosure is required since the unit does not have its own IP rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-60 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail | 54W | 12V | 4.5A | Indoor | $25.14 | View |
| Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail | 32.5W | 5V | 6.5A | Indoor | $21.80 | View |
| Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail | 60W | 15V | 4A | Indoor | $25.14 | View |
| Mean Well HDR-60-48 Ultra Slim Step Shape Power Supply 60W 48V - DIN Rail | 60W | 48V | 1.25A | Indoor | $24.41 | View |
