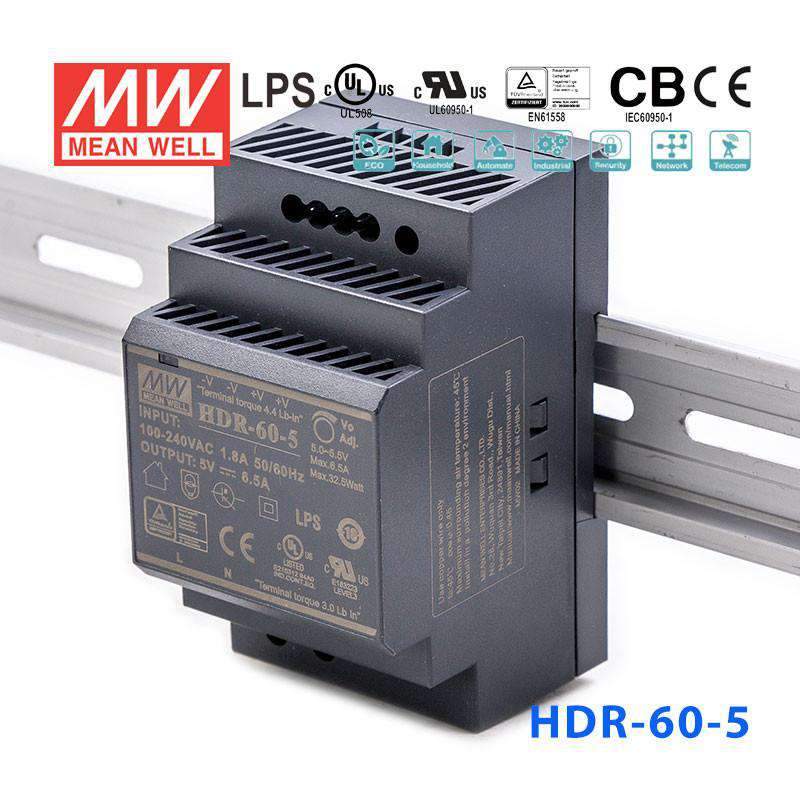

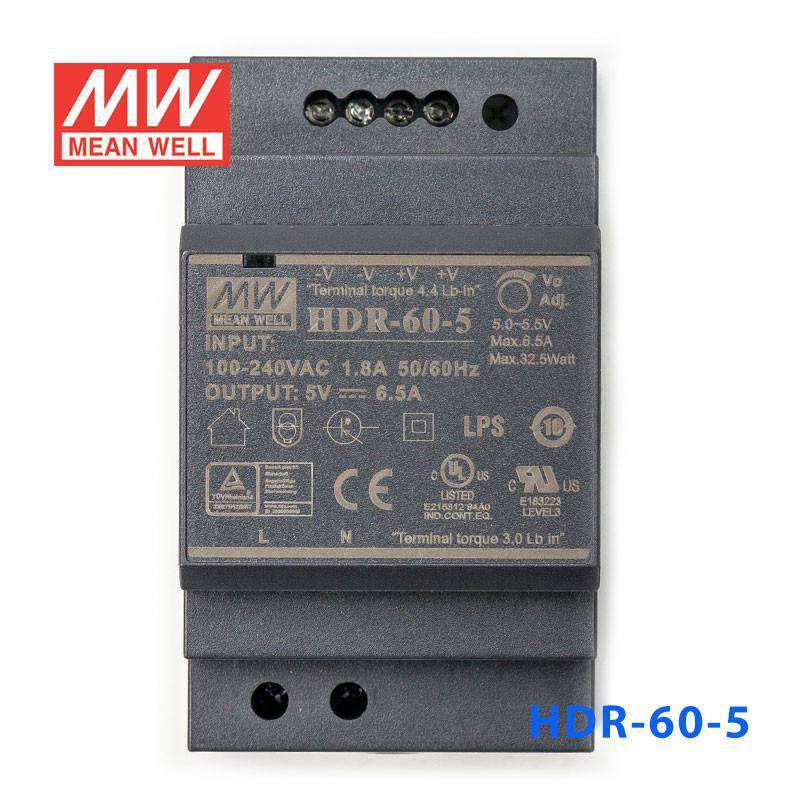

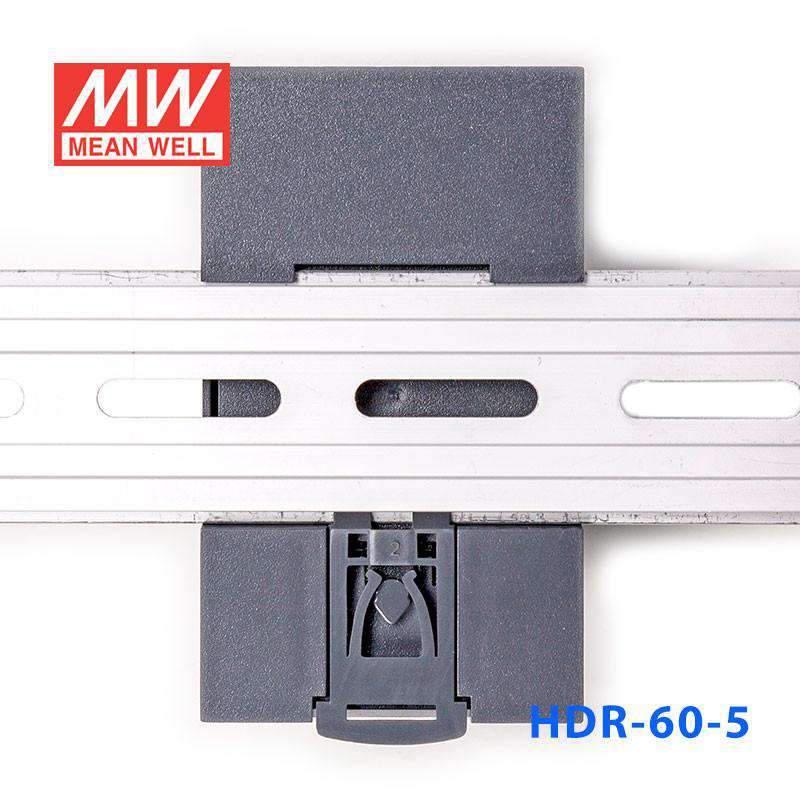

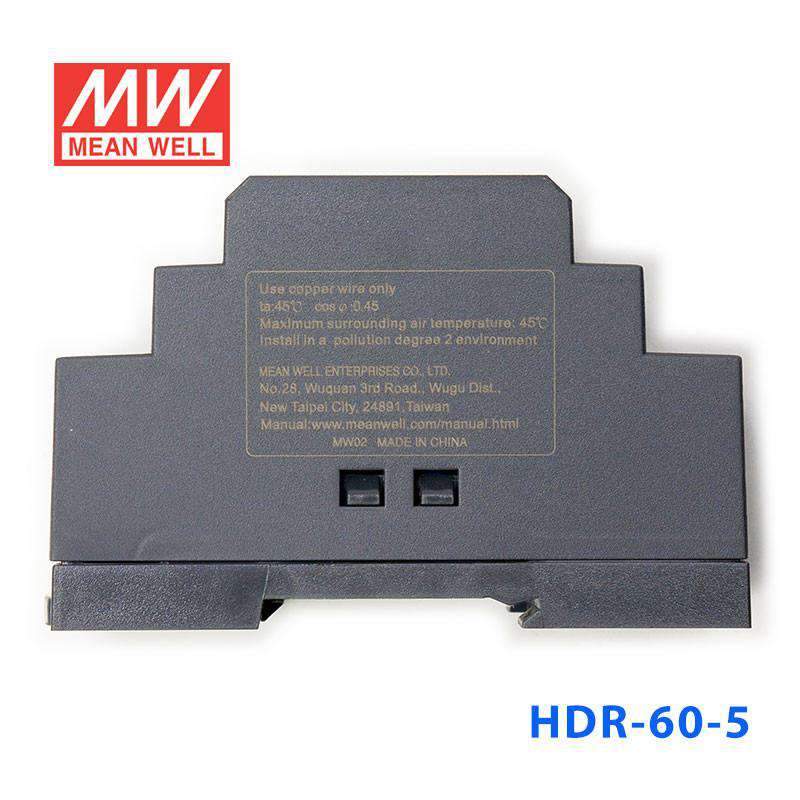

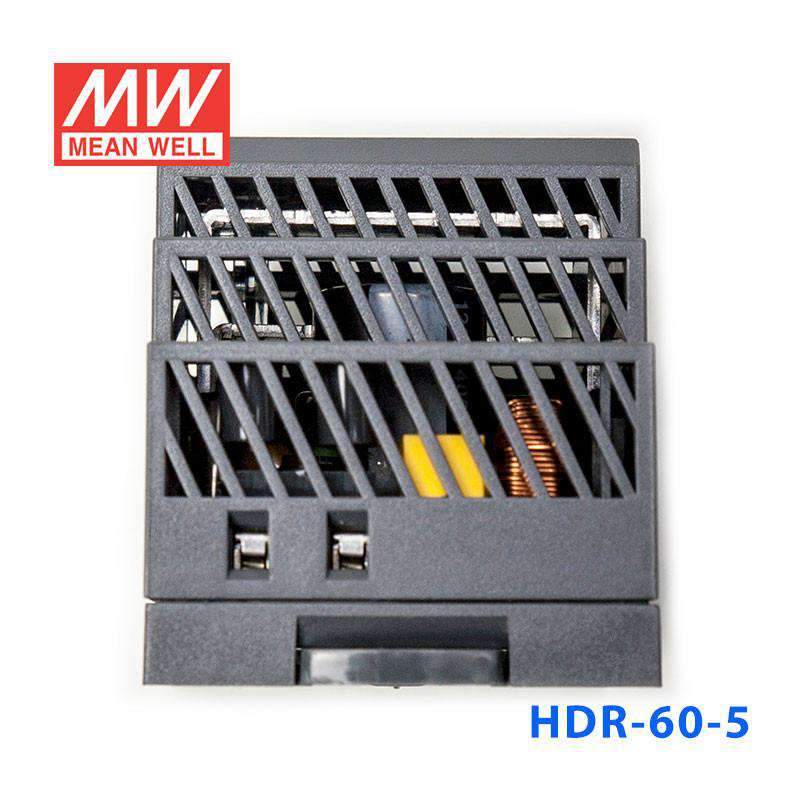

Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN ...
Description
Description
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating32.5 Watt
-
Output Voltage5 Volt
-
Rated Current6.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 5V applications is the HDR-60-5 suited for in a DIN rail control panel?
At 32.5W and 6.5A on a 5VDC bus, the HDR-60-5 is the highest-power 5V model in the HDR series. It suits 5V loads such as multi-board microcontroller systems, industrial SBC racks, and legacy TTL-level I/O systems in DIN rail panels.
How does the HDR-60-5 compare to the HDR-15-5 and HDR-30-5?
HDR-15-5: 12W / 2.4A at 5V. HDR-30-5: 15W / 3A at 5V. HDR-60-5: 32.5W / 6.5A at 5V. The HDR-60-5 provides more than twice the current of the HDR-30-5 and is the top-tier 5V option in the series — no HDR-100 or HDR-150 5V model exists.
What input voltage range and certifications does the HDR-60-5 support?
The HDR-60-5 accepts 85–264VAC universal input and holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. This broad certification set supports international deployment.
What are the thermal operating limits of the HDR-60-5 for enclosure planning?
The HDR-60-5 is rated -30°C to +70°C. Its no-load power draw is less than 0.3W, which helps reduce heat load inside compact 5V panel sections. Enclosure installation is required since the unit carries no standalone IP rating.
