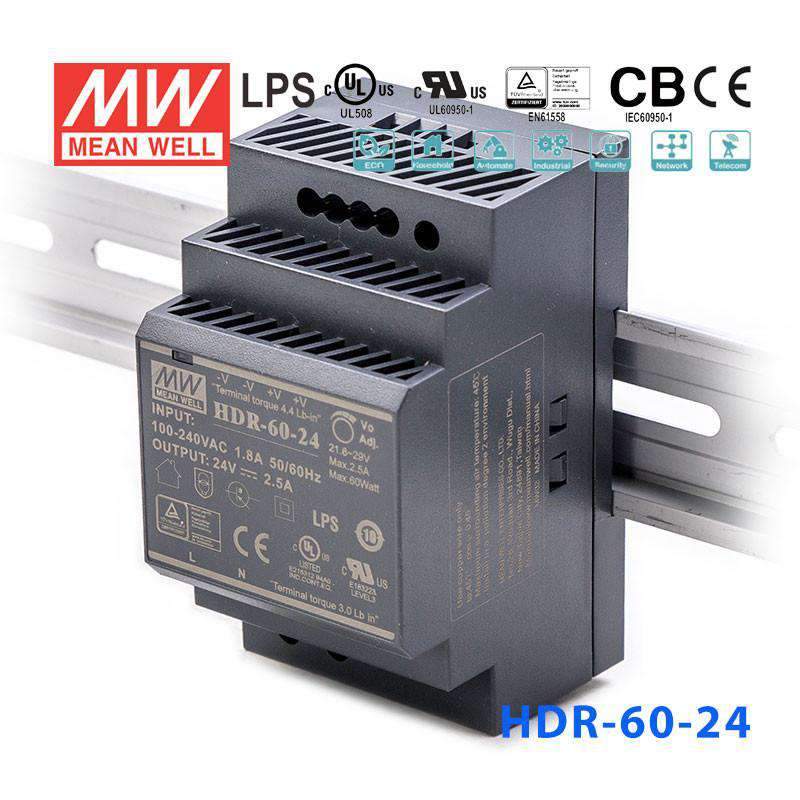

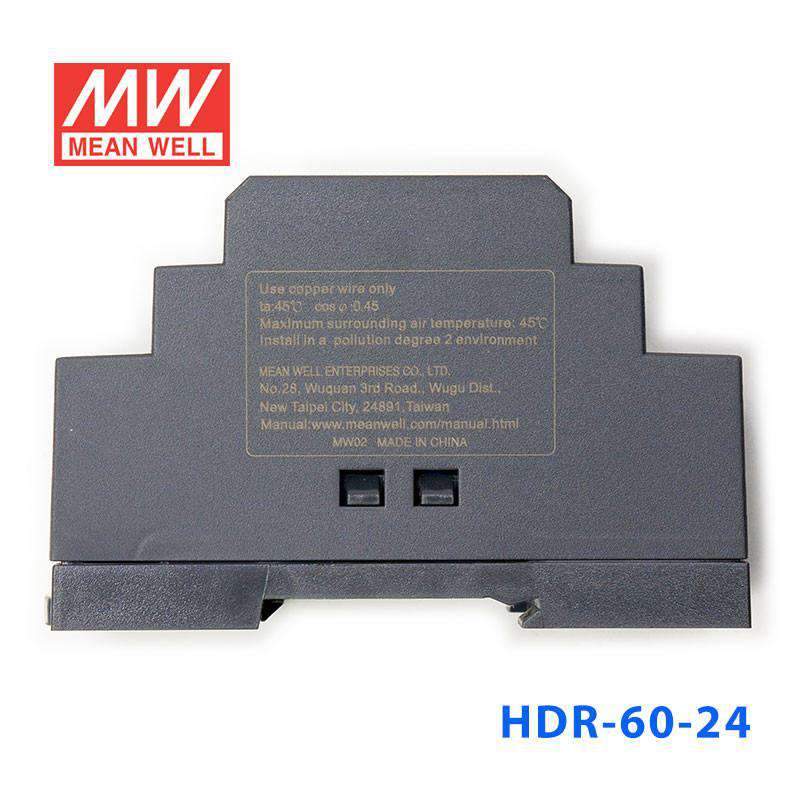

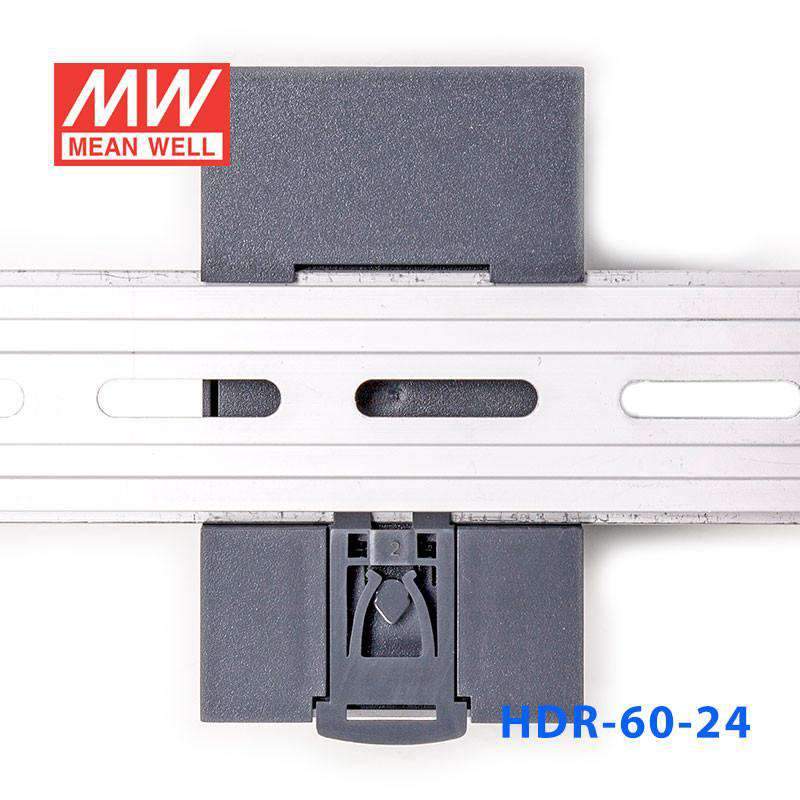

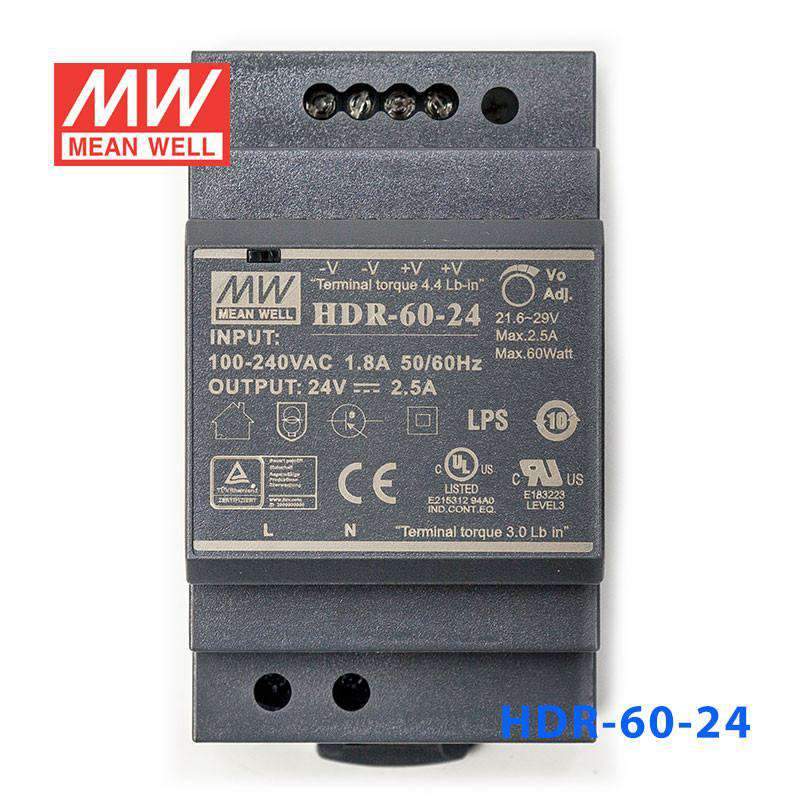

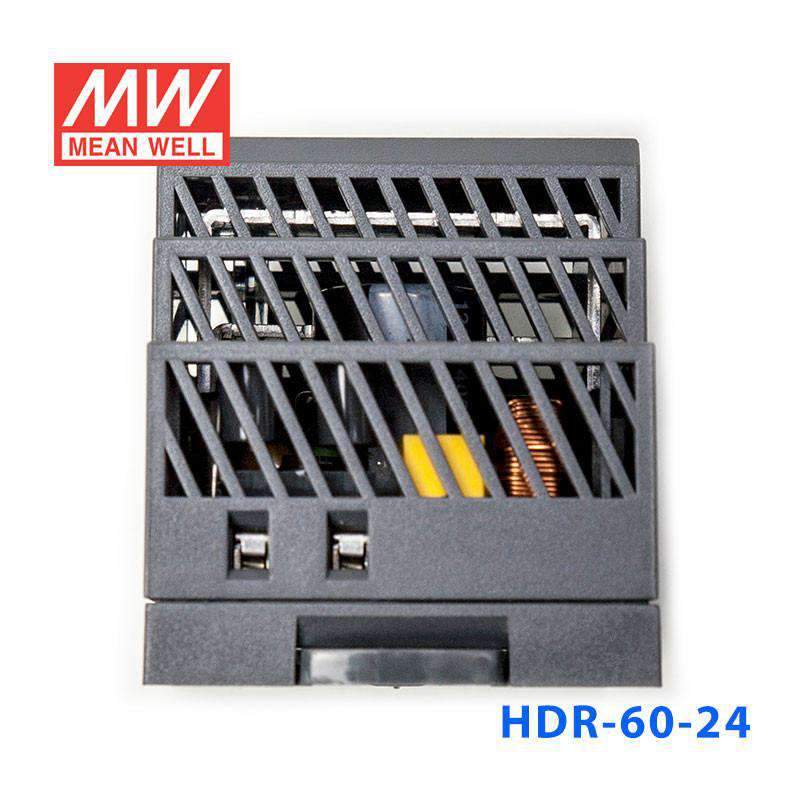

Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DI...
Description
Description
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 24V automation equipment can the HDR-60-24 power in a control panel?
At 60W and 2.5A on a 24VDC bus, the HDR-60-24 suits mid-sized 24V loads such as PLC CPU modules with moderate I/O, building management field controllers, and 24V industrial Ethernet switches in DIN rail enclosures. The slim step-shape profile conserves panel space.
How does the HDR-60-24 compare to the HDR-30-24 and HDR-100-24 for 24V selection?
HDR-30-24: 36W / 1.5A. HDR-60-24: 60W / 2.5A. HDR-100-24: 92W / 3.83A. HDR-100-24N: 100.8W / 4.2A. HDR-150-24: 127.4W / 5.31A. The HDR-60-24 is the mid-range option, delivering 67% more current than the HDR-30-24 in the same DIN rail format.
What certifications does the HDR-60-24 hold?
The HDR-60-24 carries BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. It supports isolation class II and features an adjustable DC output voltage.
Can the HDR-60-24 handle cold-start conditions in an outdoor enclosure?
The HDR-60-24 operates from -30°C to +70°C, supporting cold-start in unheated outdoor cabinets. Installation inside a sealed enclosure is required since the unit does not have its own IP rating.
Other HDR-60 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail | 54W | 12V | 4.5A | Indoor | $25.14 | View |
| Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail | 32.5W | 5V | 6.5A | Indoor | $21.80 | View |
| Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail | 60W | 15V | 4A | Indoor | $25.14 | View |
| Mean Well HDR-60-48 Ultra Slim Step Shape Power Supply 60W 48V - DIN Rail | 60W | 48V | 1.25A | Indoor | $25.17 | View |
