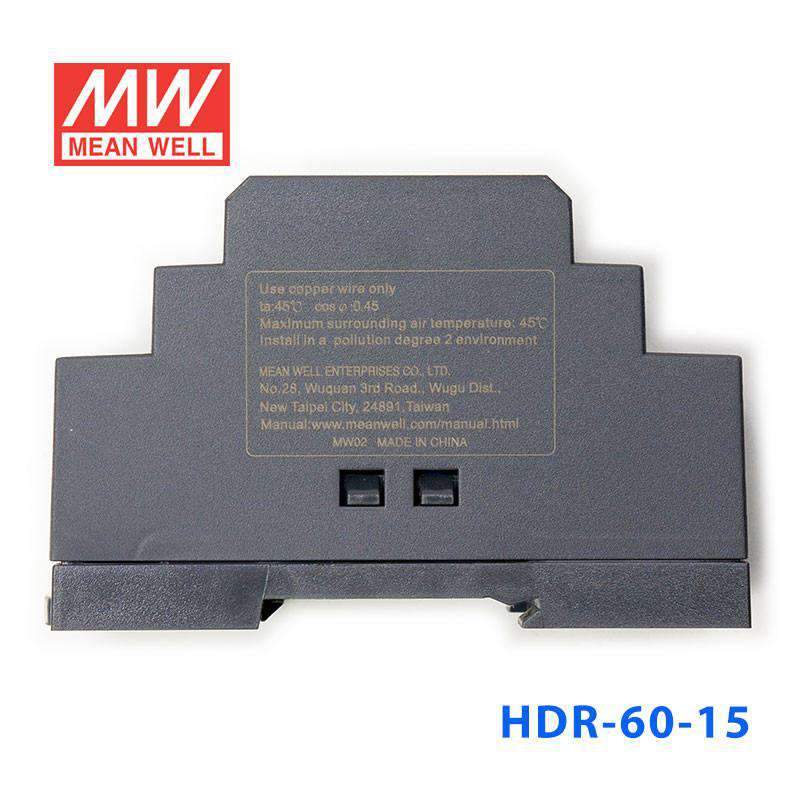

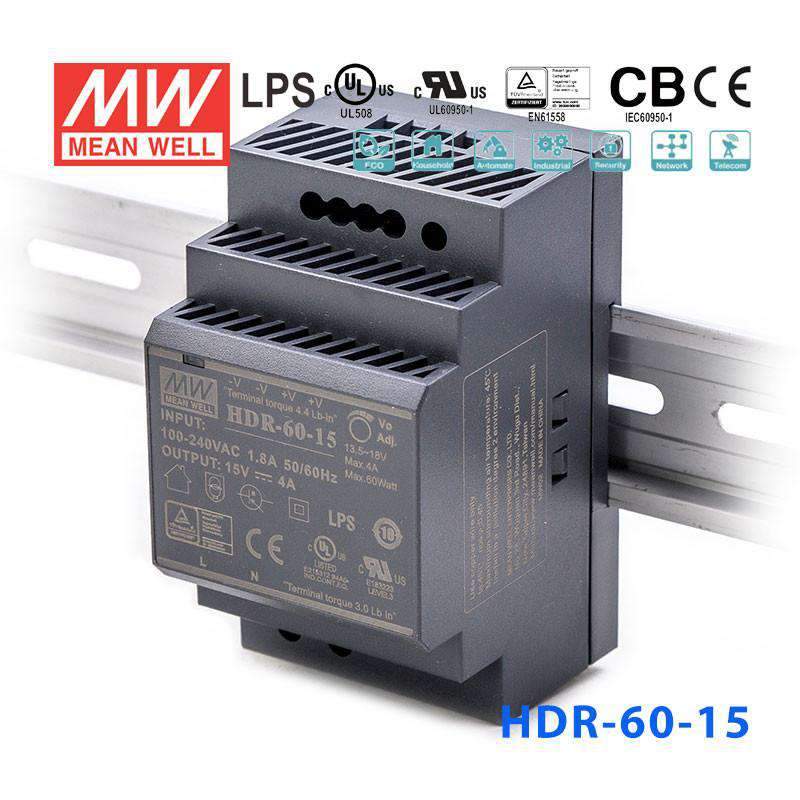

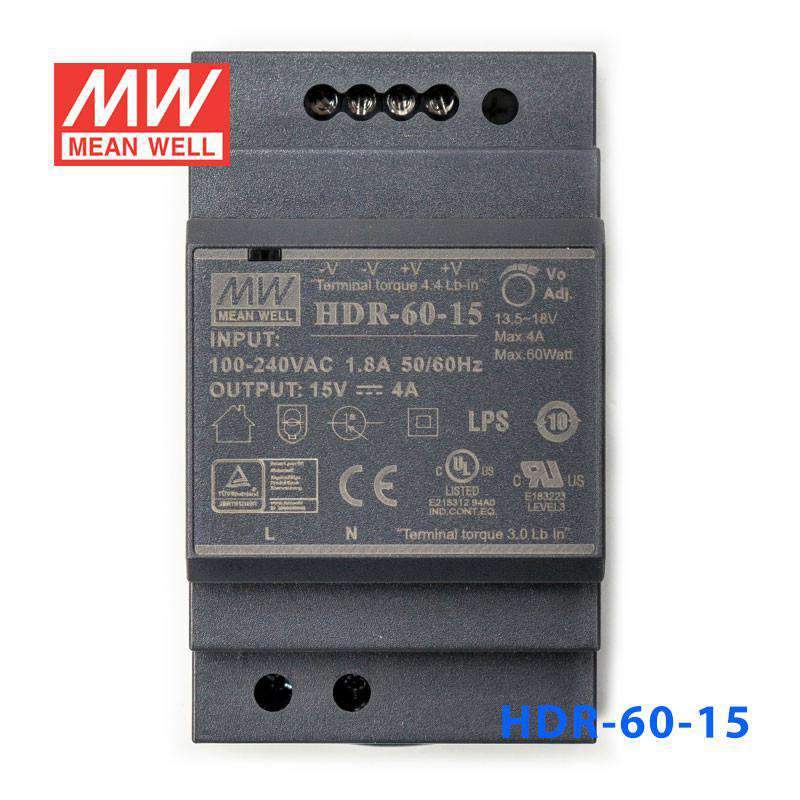

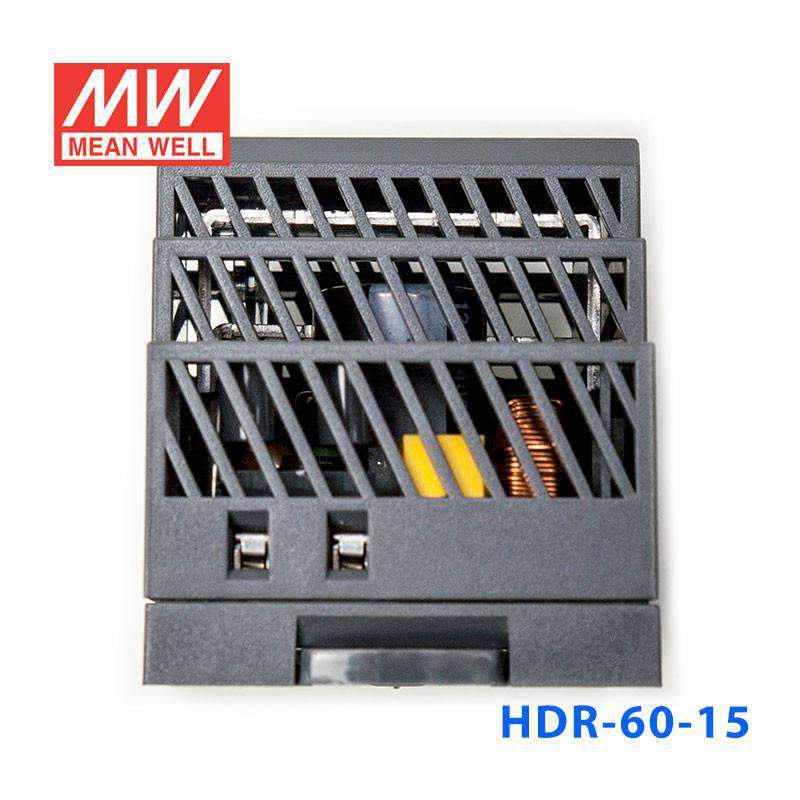

Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DI...
Description
Description
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 15V applications can the HDR-60-15 power in a DIN rail panel?

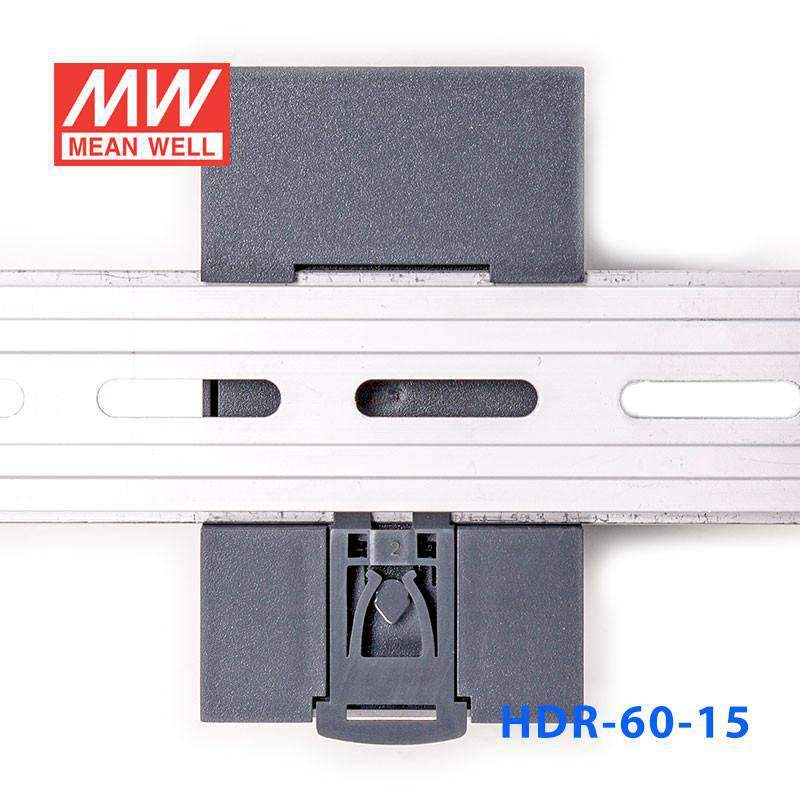

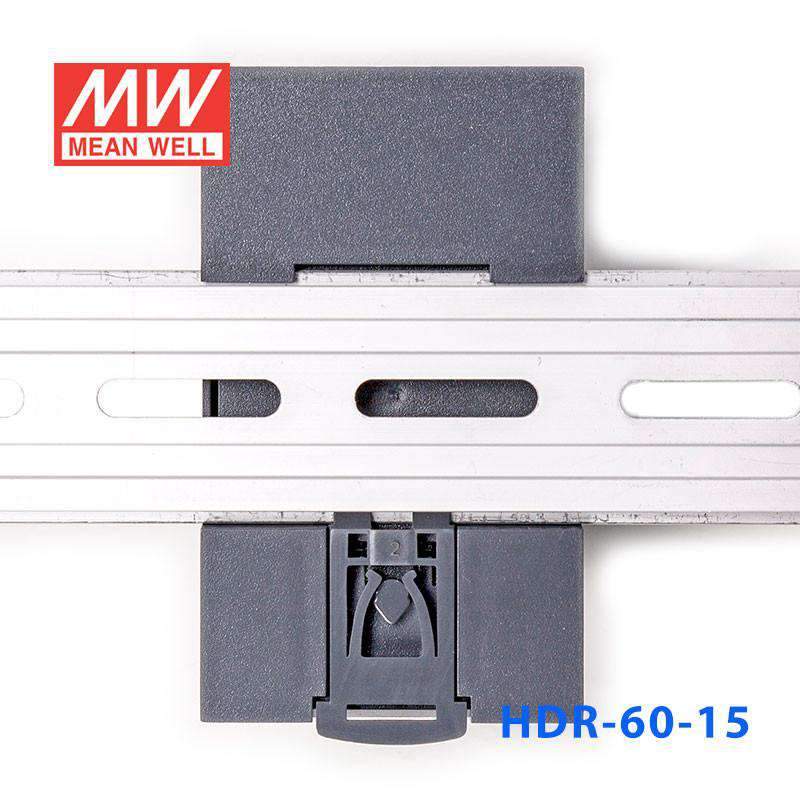

The HDR-60-15 delivers 60W at 4A on a 15V bus, appropriate for mid-power 15V loads such as analog signal conditioning racks, legacy servo amplifier auxiliaries, and 15V industrial communication power supplies in DIN rail panels. It mounts on standard 35mm rail.
How does the HDR-60-15 compare to the HDR-30-15 and HDR-100-15 in the 15V group?
HDR-30-15: 30W / 2A. HDR-60-15: 60W / 4A. HDR-100-15: 92W / 6.13A. HDR-100-15N: 97.5W / 6.5A. HDR-150-15: 128.3W / 8.55A. The HDR-60-15 doubles the output of the HDR-30-15 in the same voltage class.
Does the HDR-60-15 have an adjustable output voltage?
Yes, the DC output is adjustable and the unit is isolation class II. No-load power consumption is less than 0.3W, which limits standby losses in continuously energized control systems.
Is the HDR-60-15 suitable for use in enclosed control cabinets with high ambient temperatures?
The HDR-60-15 is rated up to +70°C operating temperature, accommodating warm industrial enclosures. The -30°C lower limit covers cold-environment panels. The unit must be installed inside an enclosure as it carries no IP rating.
Other HDR-60 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DIN Rail | 60W | 24V | 2.5A | Indoor | $19.70 | View |
| Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail | 54W | 12V | 4.5A | Indoor | $25.14 | View |
| Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail | 32.5W | 5V | 6.5A | Indoor | $21.80 | View |
| Mean Well HDR-60-48 Ultra Slim Step Shape Power Supply 60W 48V - DIN Rail | 60W | 48V | 1.25A | Indoor | $25.17 | View |
