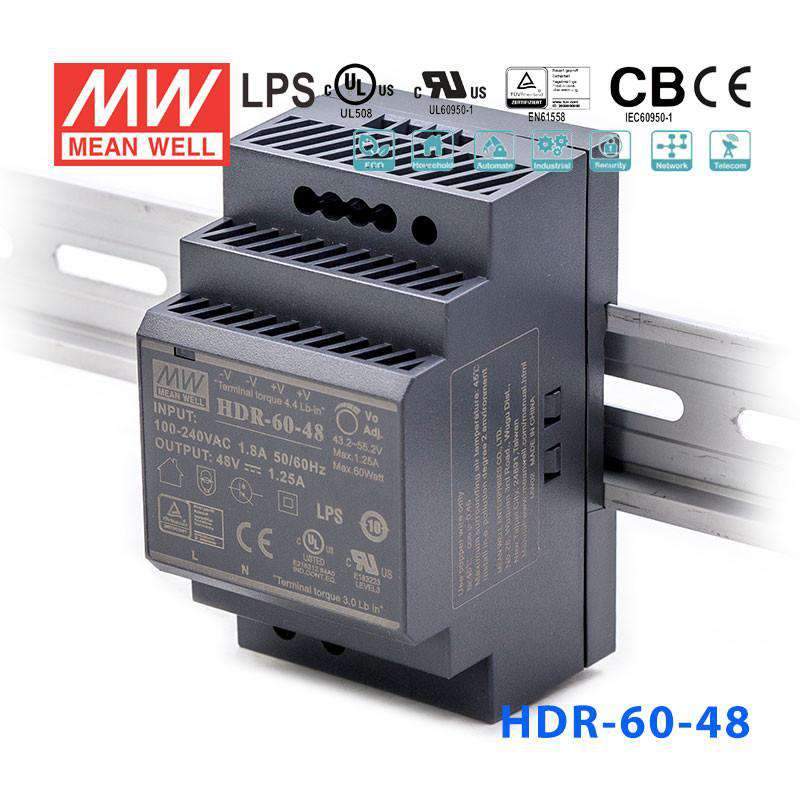

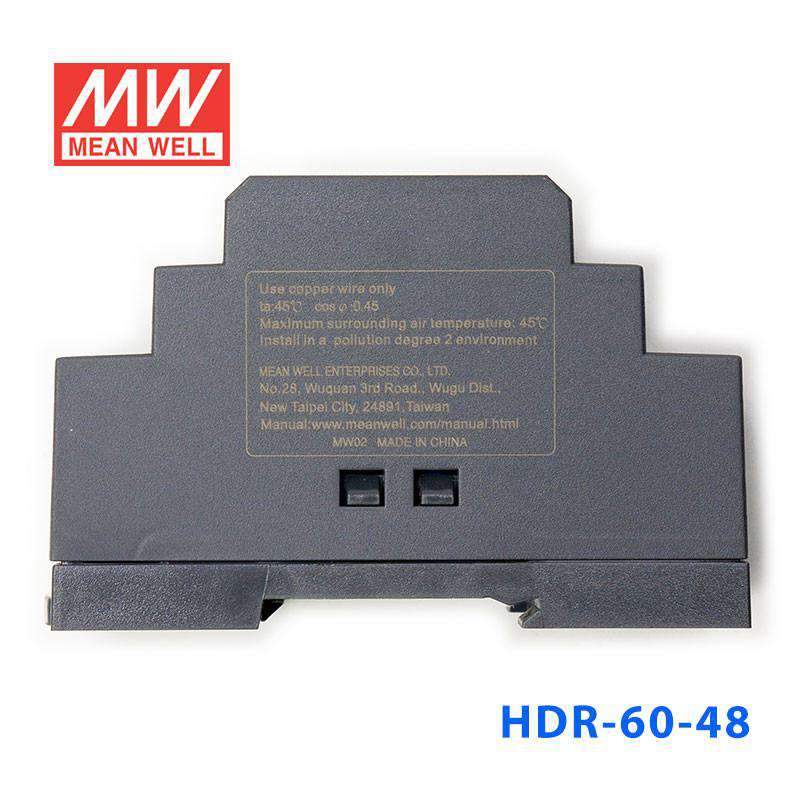

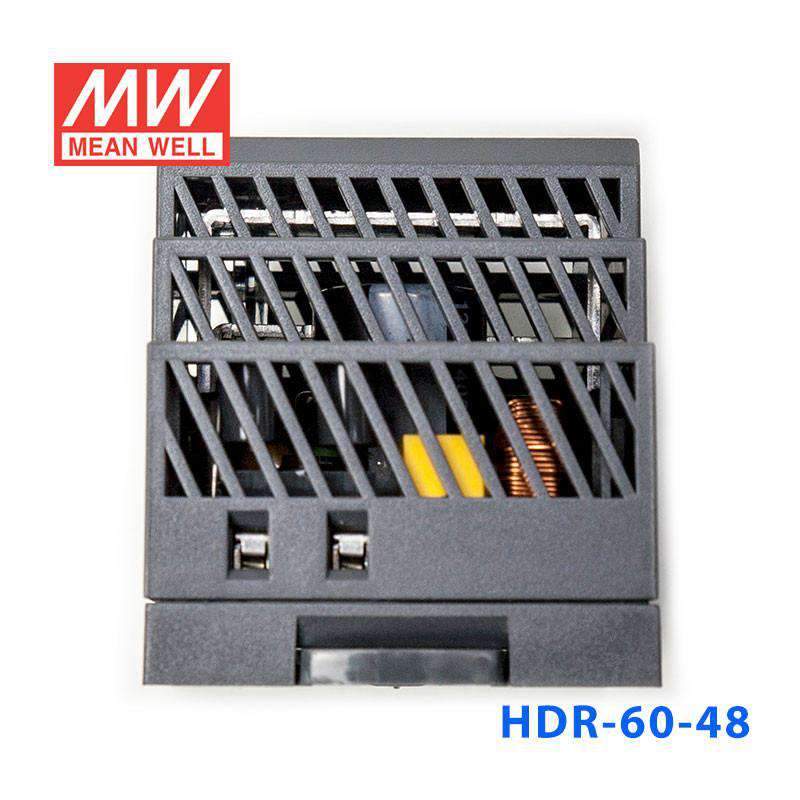

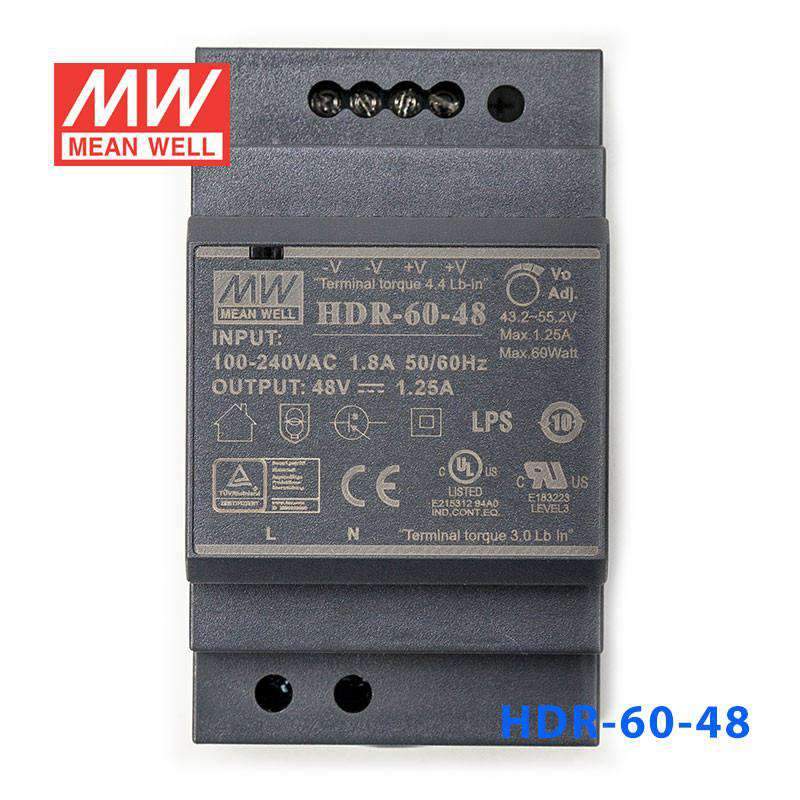

Mean Well HDR-60-48 Ultra Slim Step Shape Power Supply 60W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-48 Ultra Slim Step Shape Power Supply 60W 48V - DI...
Description
Description
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 48V mid-power loads is the HDR-60-48 designed for in DIN rail systems?

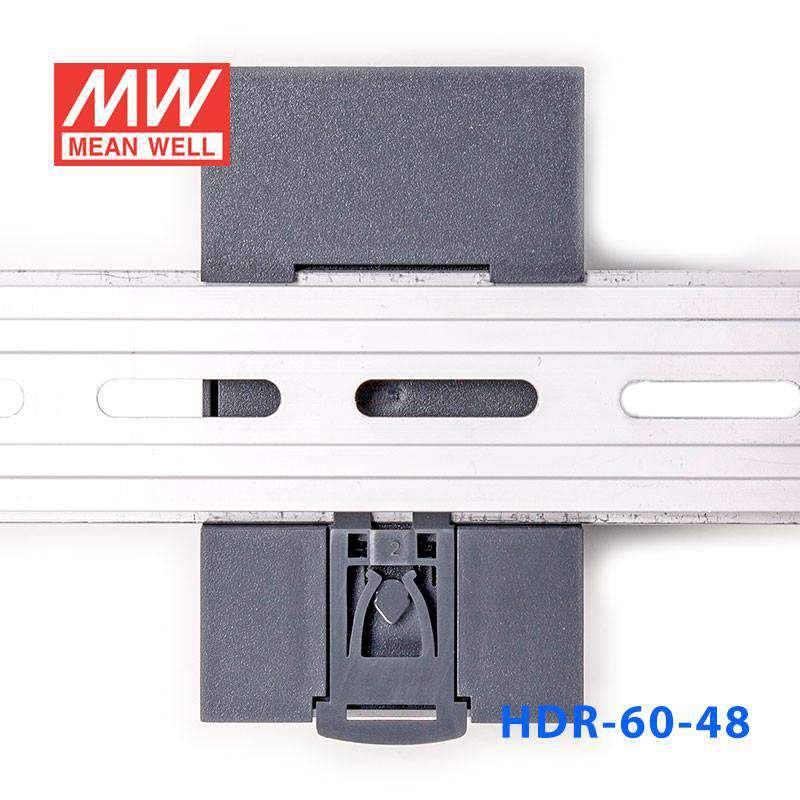

The HDR-60-48 outputs 60W at 1.25A on a 48V bus, suited for 48V loads such as PoE injectors, telecom auxiliary supplies, and 48V industrial fieldbus power in DIN rail panels. It mounts on standard 35mm DIN rail using the step-shape profile.
How does the HDR-60-48 compare to the HDR-30-48 and HDR-100-48?
HDR-30-48: 36W / 0.75A. HDR-60-48: 60W / 1.25A. HDR-100-48: 92.2W / 1.92A. HDR-100-48N: 100.8W / 2.1A. HDR-150-48: 130.6W / 2.72A. The HDR-60-48 delivers 67% more current than the HDR-30-48 and is rated for the same -30°C to +70°C temperature range.
What is the isolation class and output adjustability of the HDR-60-48?
The HDR-60-48 uses isolation class II and has an adjustable DC output voltage. No-load power consumption is less than 0.3W, which is relevant in 48V systems running continuously.
What environment is the HDR-60-48 rated for?
The HDR-60-48 operates from -30°C to +70°C and must be installed in a control enclosure since it has no standalone IP rating. This temperature range covers most industrial cabinet and panel environments.
Other HDR-60 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-60-24 Ultra Slim Step Shape Power Supply 60W 24V - DIN Rail | 60W | 24V | 2.5A | Indoor | $19.70 | View |
| Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail | 54W | 12V | 4.5A | Indoor | $25.14 | View |
| Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail | 32.5W | 5V | 6.5A | Indoor | $21.80 | View |
| Mean Well HDR-60-15 Ultra Slim Step Shape Power Supply 60W 15V - DIN Rail | 60W | 15V | 4A | Indoor | $25.14 | View |
