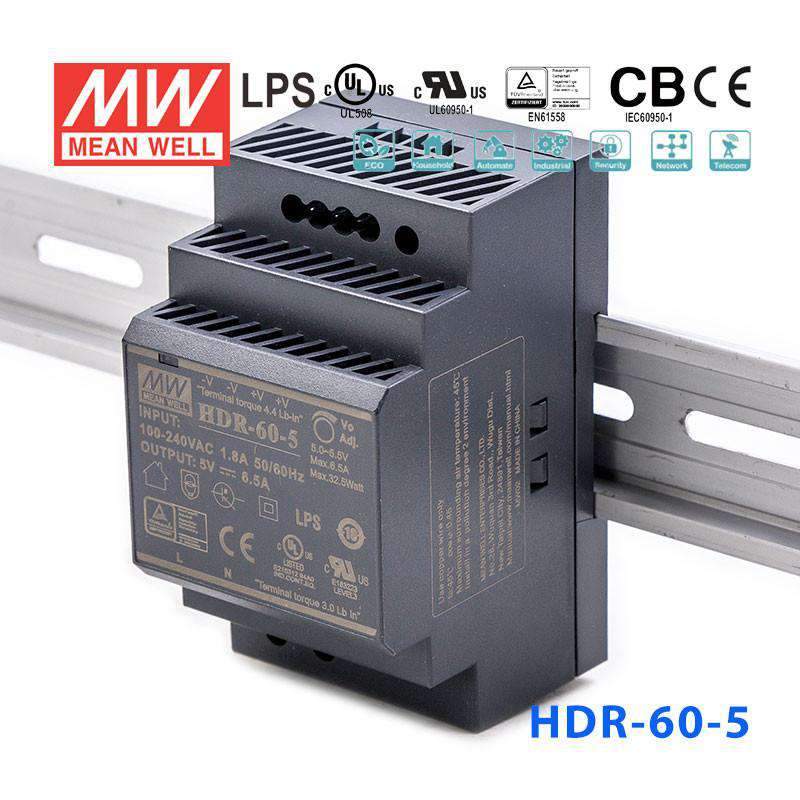

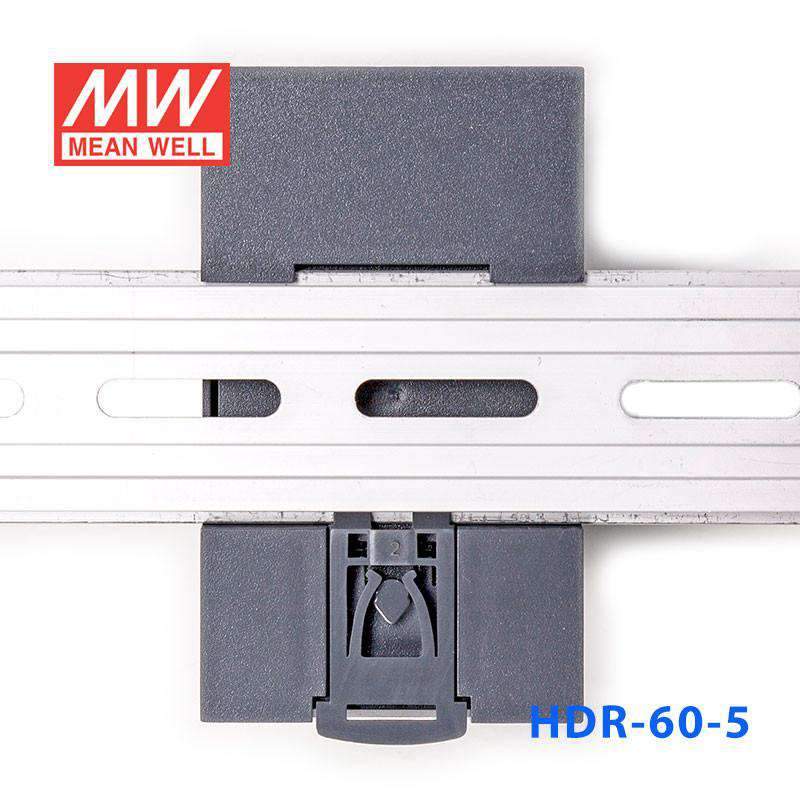

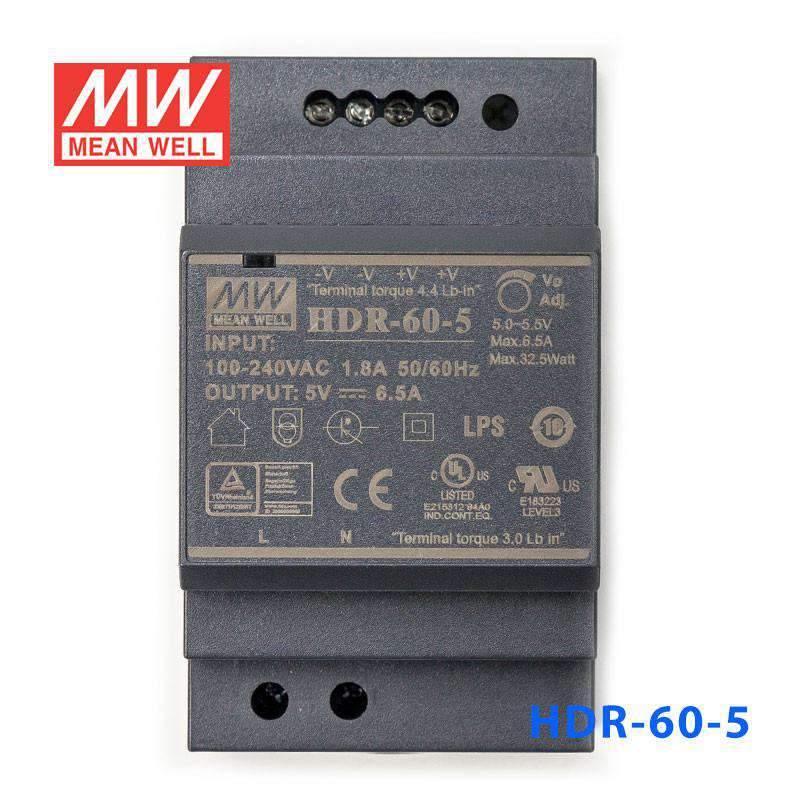

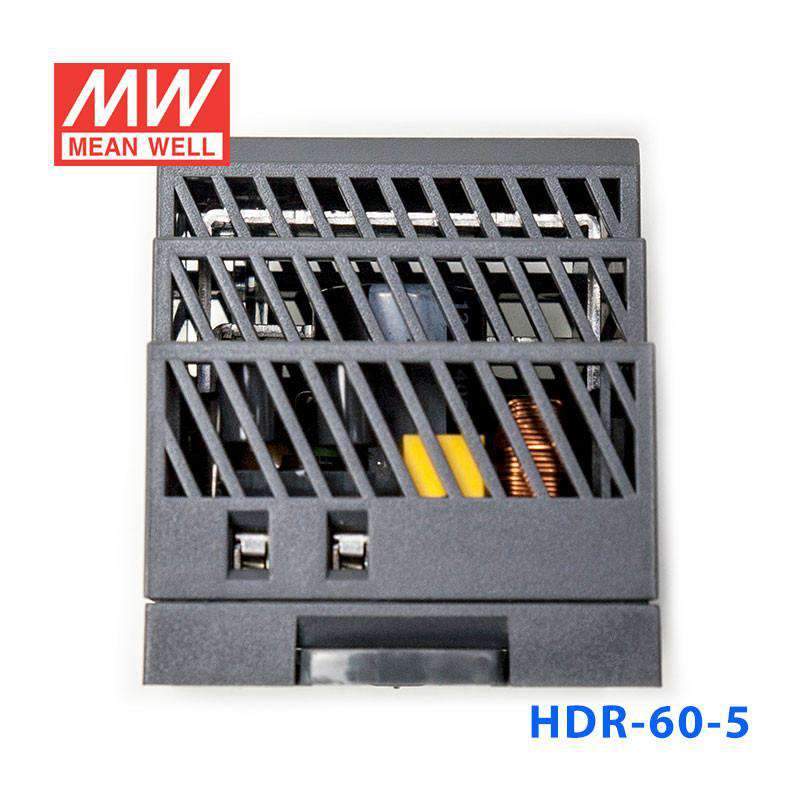

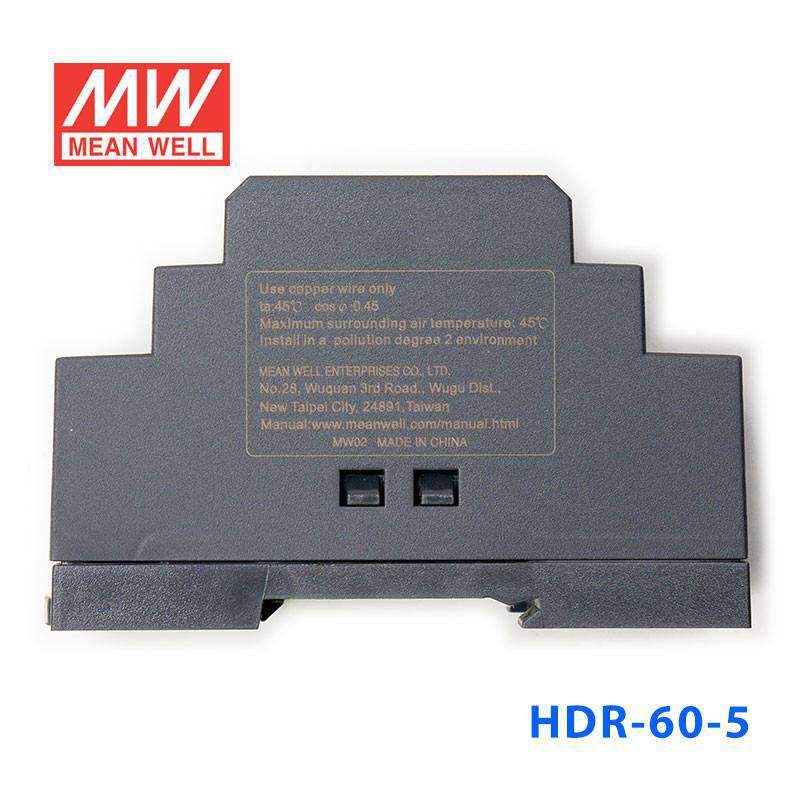

Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-5 Ultra Slim Step Shape Power Supply 60W 5V - DIN ...
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating32.5 Watt
-
Output Voltage5 Volt
-
Rated Current6.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
What 5V applications is the HDR-60-5 suited for in a DIN rail control panel?
At 32.5W and 6.5A on a 5VDC bus, the HDR-60-5 is the highest-power 5V model in the HDR series. It suits 5V loads such as multi-board microcontroller systems, industrial SBC racks, and legacy TTL-level I/O systems in DIN rail panels.
How does the HDR-60-5 compare to the HDR-15-5 and HDR-30-5?
HDR-15-5: 12W / 2.4A at 5V. HDR-30-5: 15W / 3A at 5V. HDR-60-5: 32.5W / 6.5A at 5V. The HDR-60-5 provides more than twice the current of the HDR-30-5 and is the top-tier 5V option in the series — no HDR-100 or HDR-150 5V model exists.
What input voltage range and certifications does the HDR-60-5 support?
The HDR-60-5 accepts 85–264VAC universal input and holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. This broad certification set supports international deployment.
What are the thermal operating limits of the HDR-60-5 for enclosure planning?
The HDR-60-5 is rated -30°C to +70°C. Its no-load power draw is less than 0.3W, which helps reduce heat load inside compact 5V panel sections. Enclosure installation is required since the unit carries no standalone IP rating.
