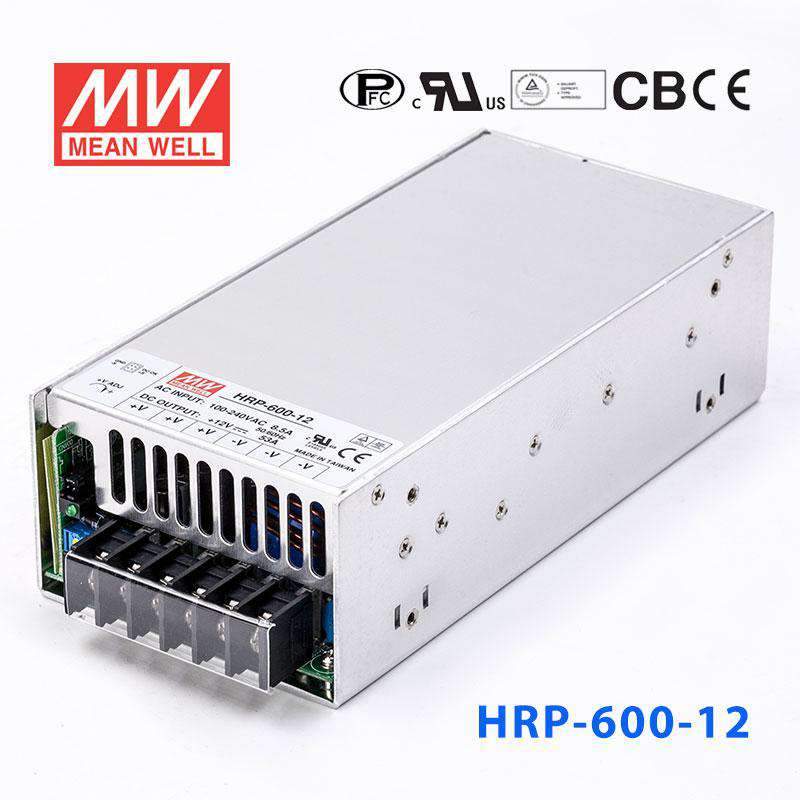

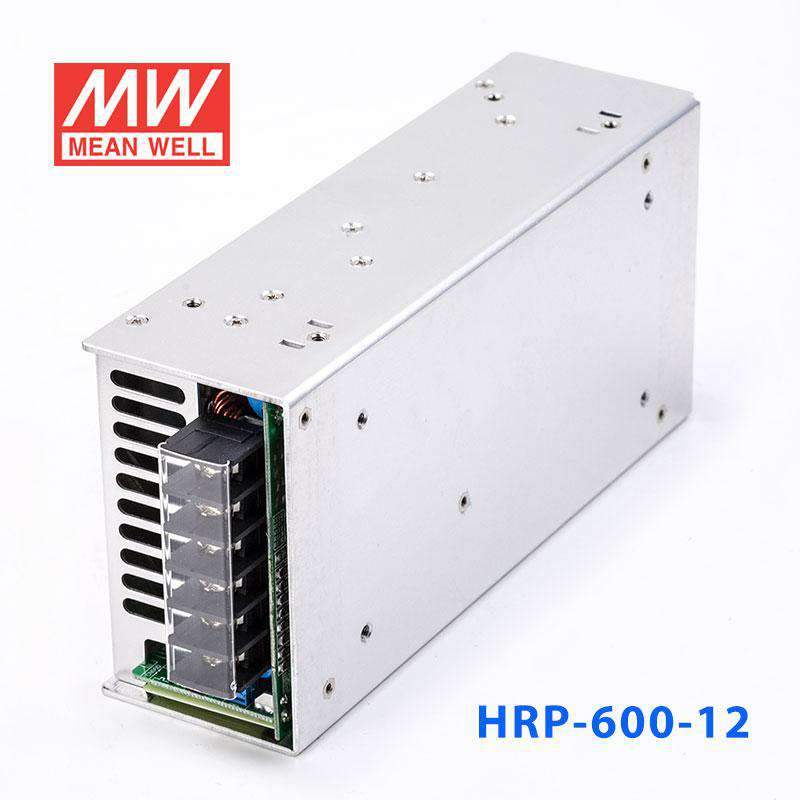

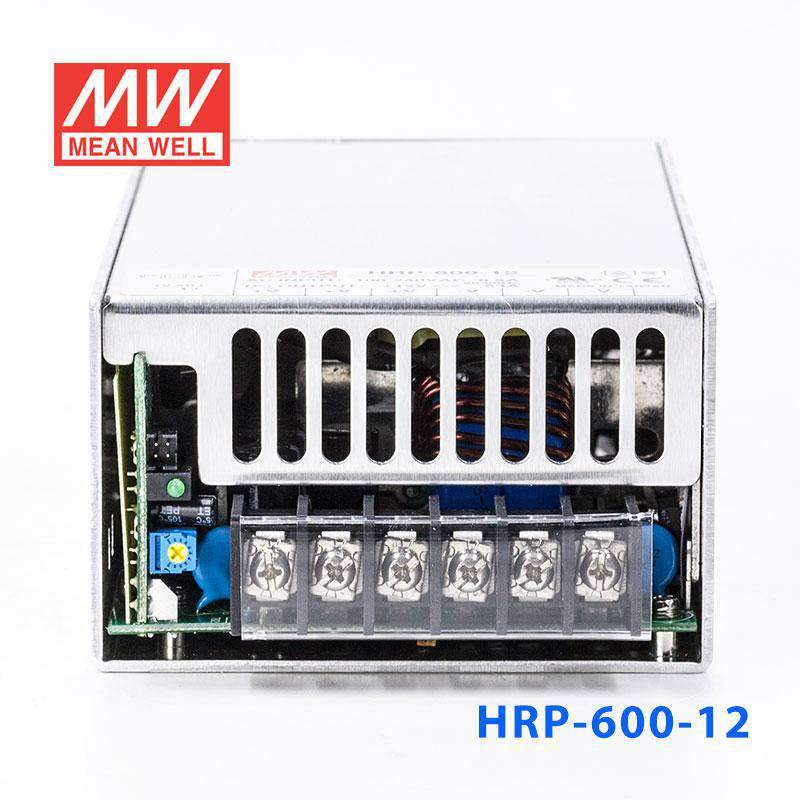

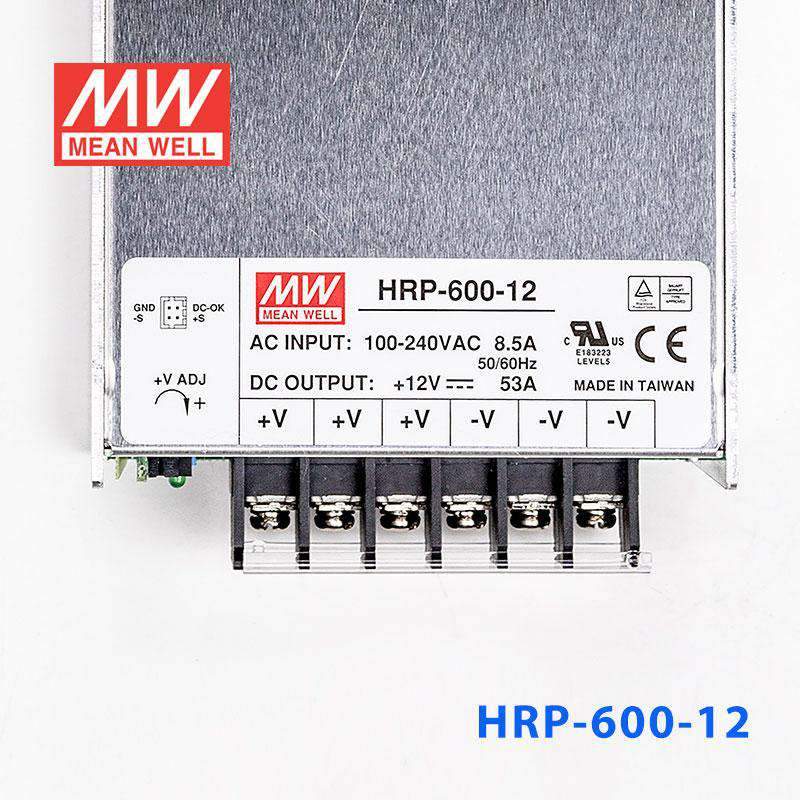

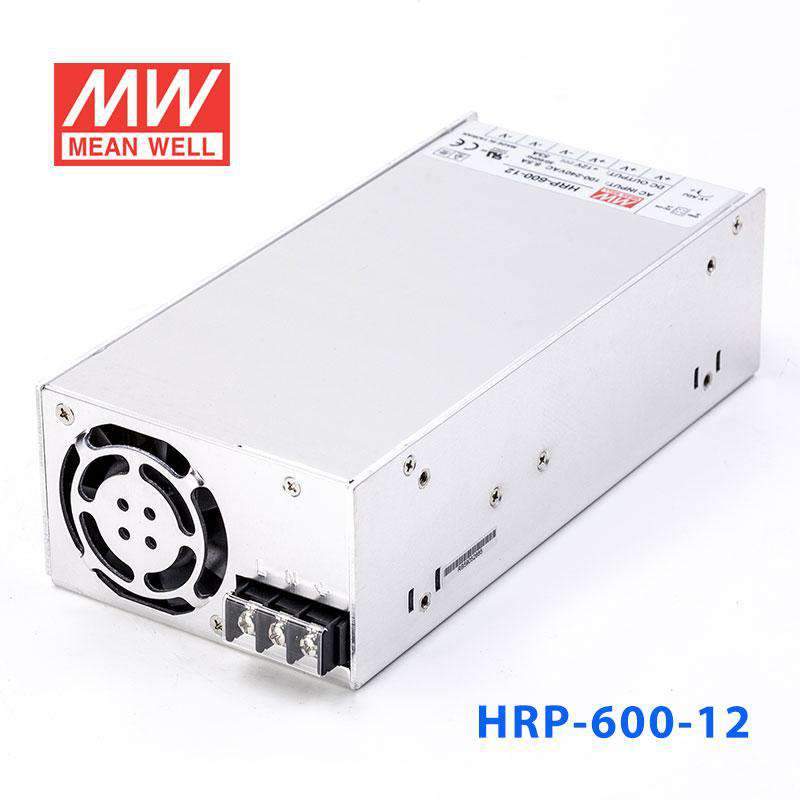

Mean Well HRP-600-12 Power Supply 636W 12V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating636 Watt
-
Output Voltage12 Volt
-
Rated Current53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-12 for a large 12V industrial control or automation system?
Yes, this is a constant-voltage 12V supply rated for 636W and 53A. It is suited to 12V systems that need substantially more current than mid-range 12V models and stay within the 53A maximum output.
Is the HRP-600-12 suitable for centralized 12V power distribution with many loads?
It can be used where multiple 12V DC loads are fed from one supply and the total demand remains within 636W. With 53A available, it offers more 12V capacity than the 75.6W, 102W, 150W, 156W, 200.4W, 300W, 324W, and 450W 12V siblings listed.
Can this model power heavier 12V embedded, IT, or communications hardware than the HRP-450-12?
Yes, the HRP-600-12 is rated at 636W and 53A, while the HRP-450-12 is listed at 450W and 37.5A. For 12V applications that need more total current headroom, the 600 model is the higher-capacity option.
Would the HRP-600-12 work in facilities with different AC mains voltages?
Yes, it accepts 85-264VAC input and outputs regulated 12V DC. That wide input range can be useful for industrial deployments across different AC supply conditions.
How does the HRP-600-12 compare with other 12V models in the HRP line?
The provided 12V siblings are HRP-75-12 at 75.6W and 6.3A, HRP-100-12 at 102W and 8.5A, HRP-150-12 at 156W and 13A, HRP-150N-12 at 150W and 13A, HRP-150N3-12 at 150W and 13A, HRP-200-12 at 200.4W and 16.7A, HRP-300-12 at 324W and 27A, HRP-300N-12 at 300W and 27A, HRP-300N3-12 at 300W and 27A, HRP-450-12 at 450W and 37.5A, HRP-600-12 at 636W and 53A, HRP-600N-12 at 600W and 53A, and HRP-600N3-12 at 600W and 53A. The list also includes HRP-1000N3-12, but its wattage and current are not provided in the supplied data.
Is the HRP-600-12 appropriate for outdoor use or extreme temperatures?
The operating temperature range is -40°C to +70°C, so the unit is specified for a wide thermal range. No IP rating is included in the provided specs, so outdoor suitability depends on the cabinet or enclosure used with the power supply.
