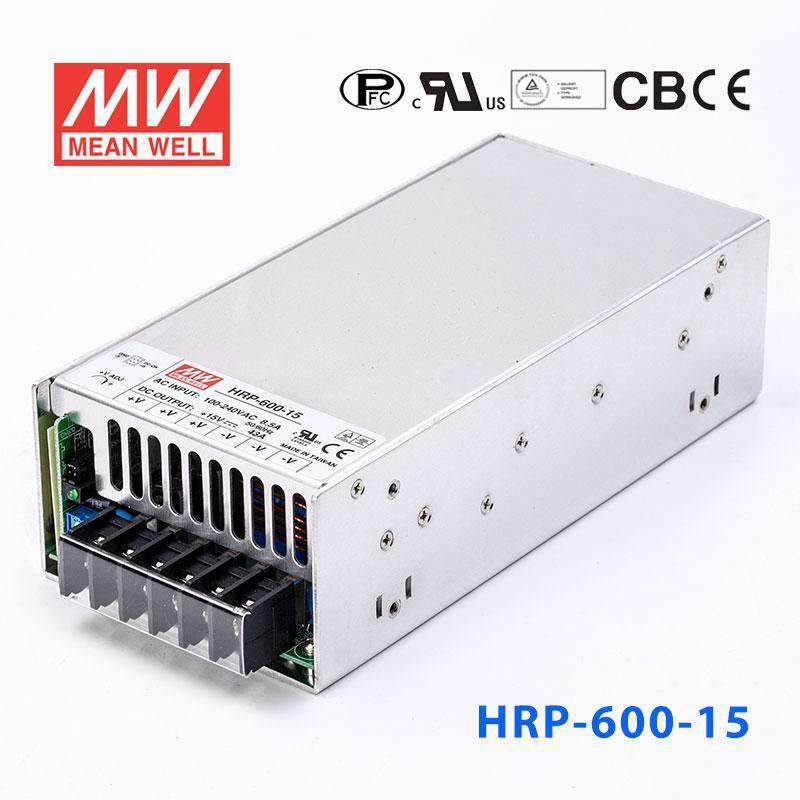

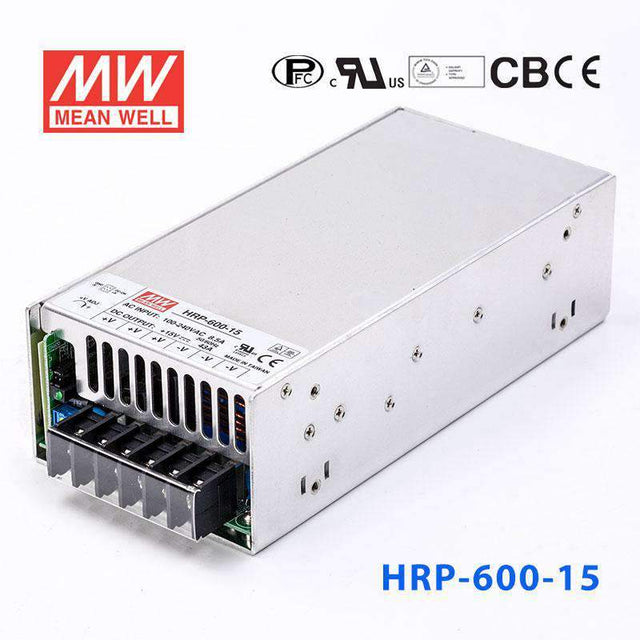

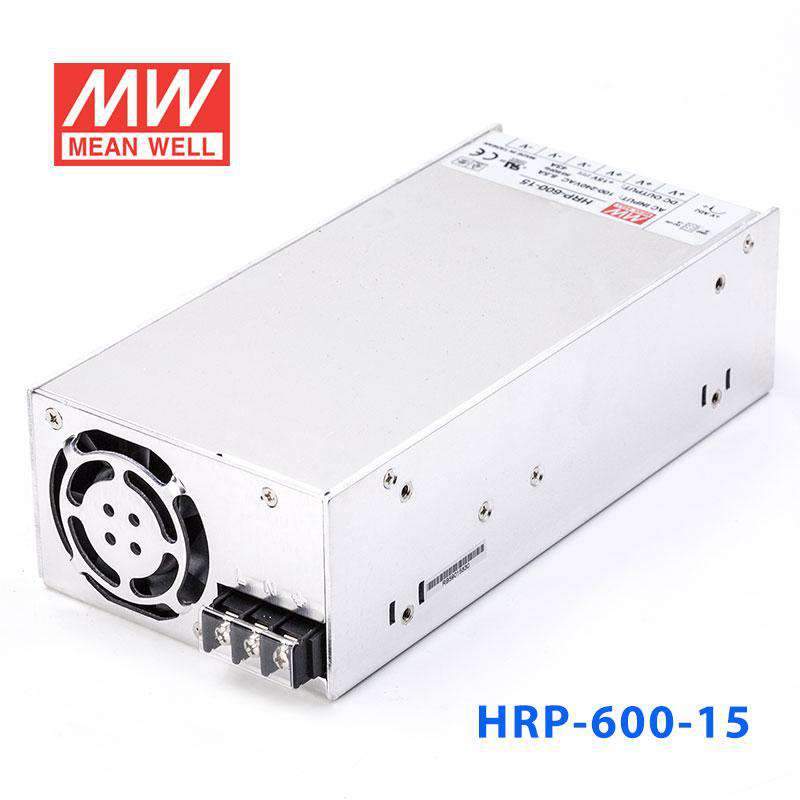

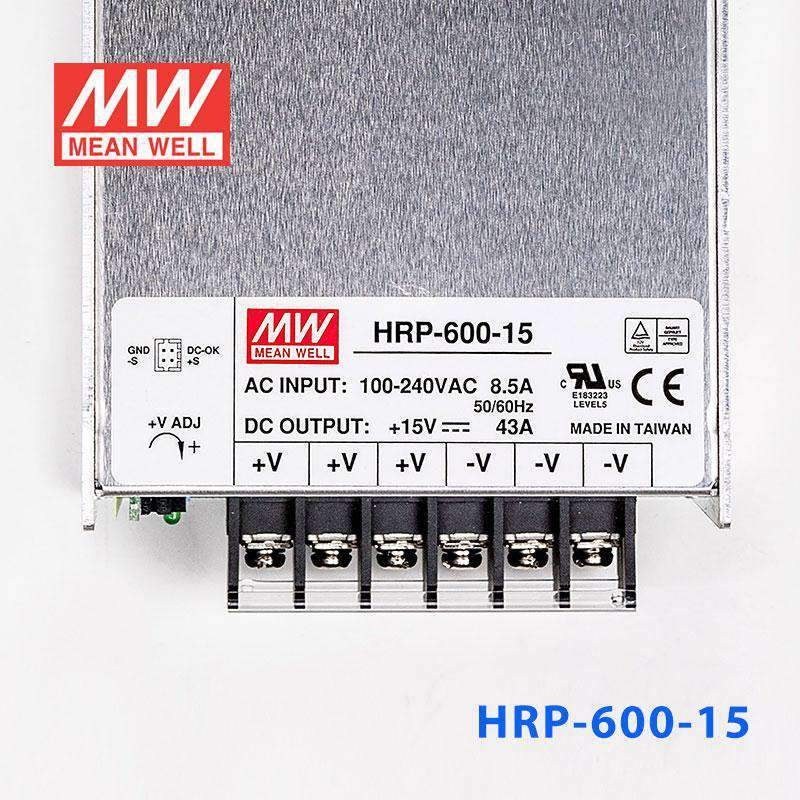

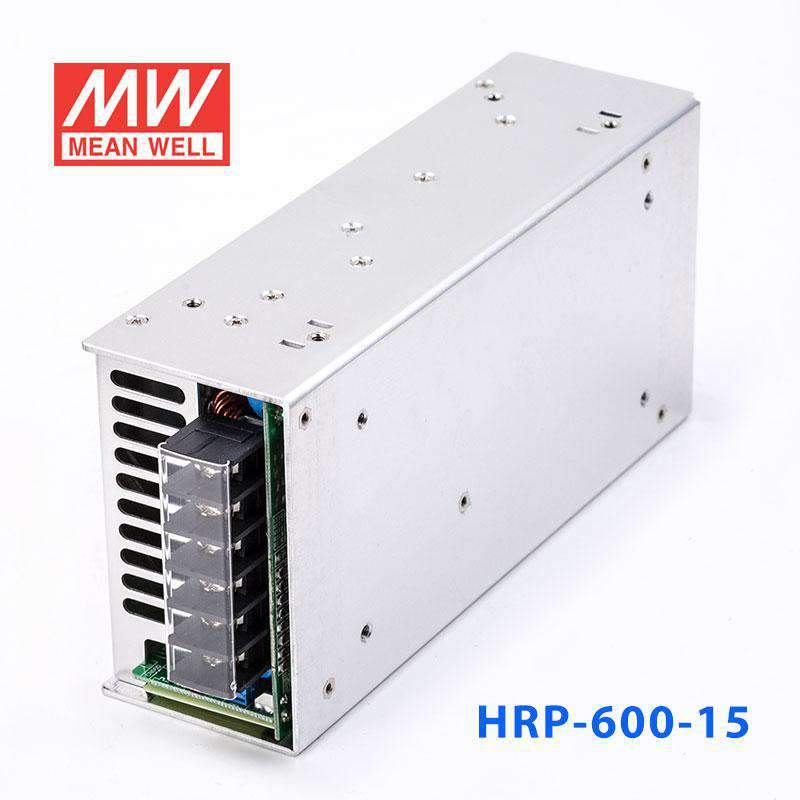

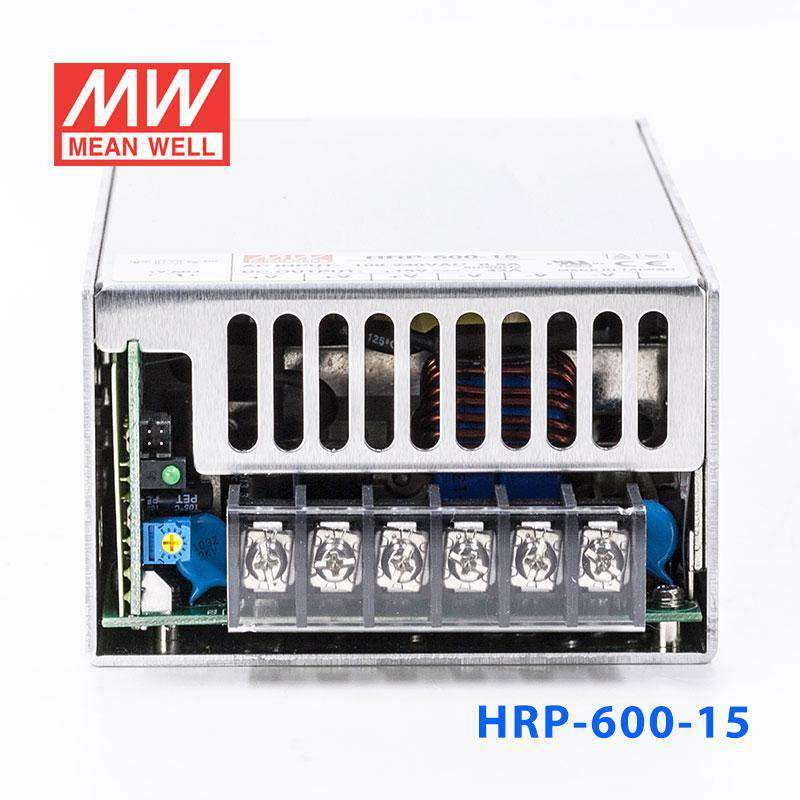

Mean Well HRP-600-15 Power Supply 645W 15V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating645 Watt
-
Output Voltage15 Volt
-
Rated Current43 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-15 for a 15V industrial control system or test bench?
Yes, it is a constant voltage 15V supply rated for 43A and 645W, which fits larger 15V DC loads in industrial or lab environments. The wide 85-264VAC input also makes it easier to use across different AC mains conditions.
Is the HRP-600-15 suitable for powering multiple 15V devices from one centralized supply?
It can fit centralized 15V distribution where the total load stays within 43A and 645W. That makes it more appropriate for higher-load 15V equipment groups than smaller supplies in the same series.
Can this model be used for embedded or automation equipment that requires a regulated 15V rail?
It is designed as a constant voltage 15V unit, so it is a fit for equipment built around a fixed 15V input. With 645W available, it suits higher-power embedded or automation assemblies that need more headroom than low-wattage 15V models.
How does the HRP-600-15 compare with other HRP-600 output versions?
Within the HRP-600 range, the listed variants are 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-15 keeps the same mechanical format at 218.0 × 105.0 × 63.5 mm and 1.5 kg, but its output is specific to 15V systems.
Is the HRP-600-15 suitable for outdoor or harsh-environment use?
The operating temperature range is -40°C to +70°C, so it is specified for a broad temperature window. However, no IP rating is listed in the provided specs, so it is better treated as a supply for indoor use or for installation inside a protective enclosure rather than direct outdoor exposure.
