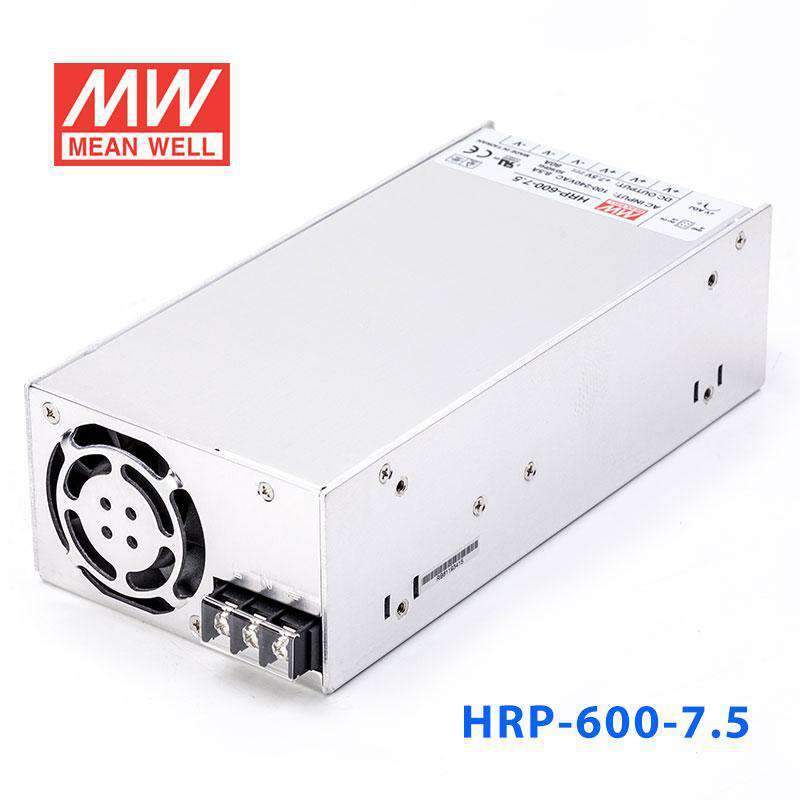

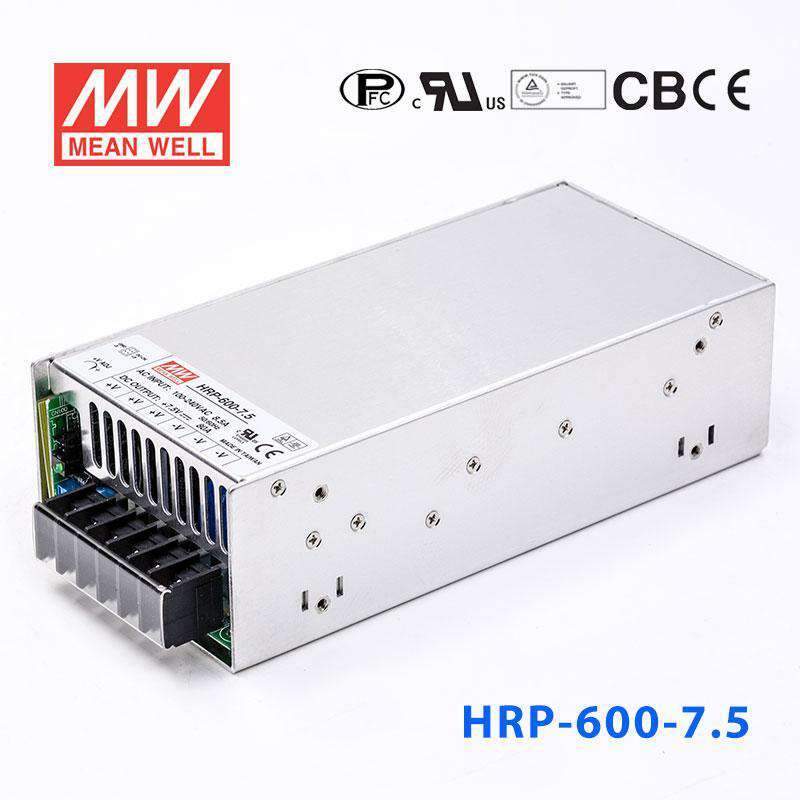

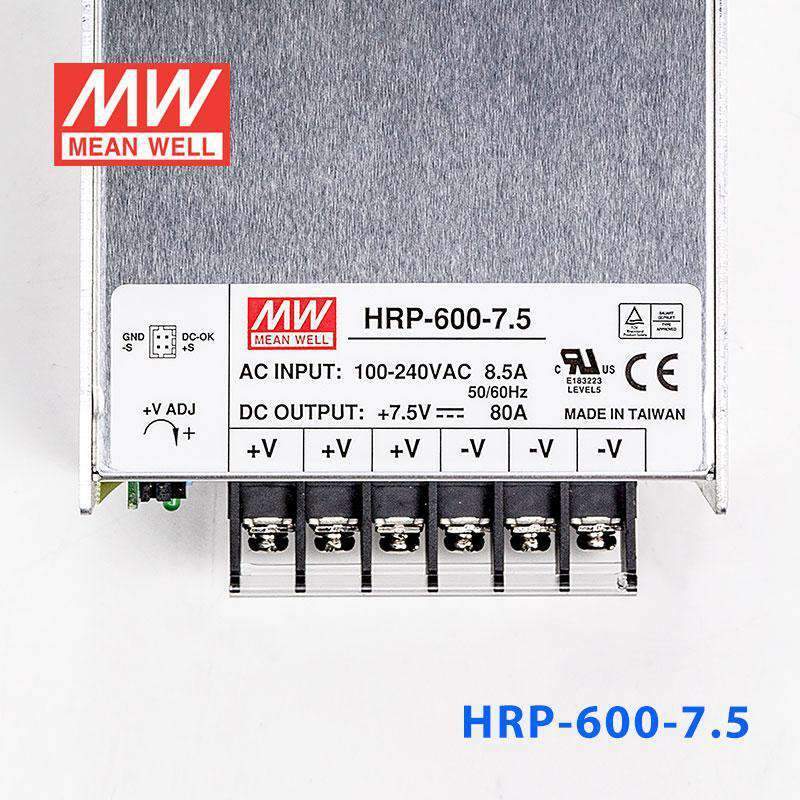

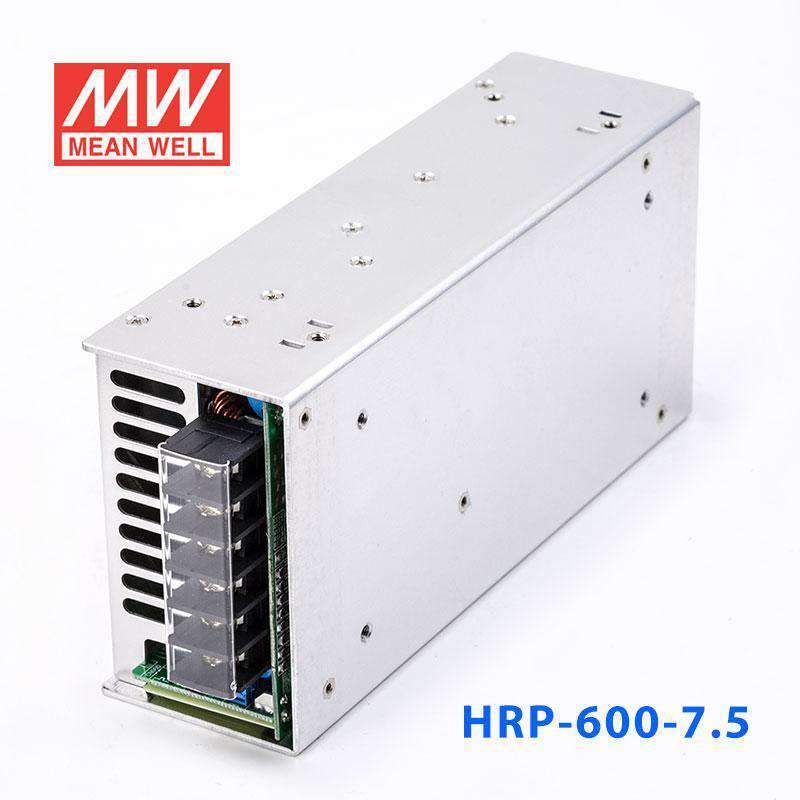

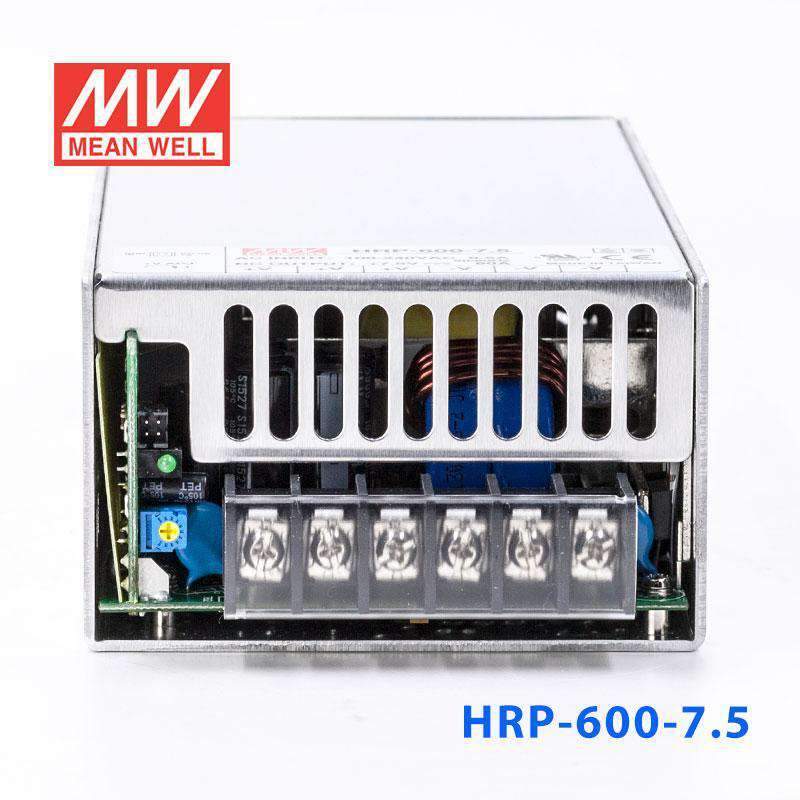

Mean Well HRP-600-7.5 Power Supply 600W 7.5V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage7.5 Volt
-
Rated Current80 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-7.5 for a 7.5V industrial or embedded system that needs high current?
Yes, this unit provides constant voltage 7.5V output at up to 600W and 80A. It is suited to 7.5V embedded electronics, industrial control assemblies, or other DC loads that specifically require 7.5V at substantial current.
Is the HRP-600-7.5 suitable for a 7.5V electronics test station or validation rack?
Yes, the 7.5V output and 80A current capacity make it appropriate for centralized power in 7.5V test fixtures or bench validation systems. Its 85-264VAC input also supports use across a wide range of AC mains conditions.
Can this model support multiple 7.5V devices in one enclosure?
It can, provided every load is designed for constant voltage 7.5V and the combined demand stays within 600W and 80A. That makes it a practical option for grouped 7.5V control electronics or legacy embedded hardware that shares one DC rail.
Would the HRP-600-7.5 work for 7.5V display, terminal, or control electronics in an industrial setting?
It can be used for those types of loads when they require a regulated 7.5V source and the total load remains inside the 600W, 80A rating. The wide -40°C to +70°C operating temperature range also supports use beyond climate-controlled indoor rooms.
Can the HRP-600-7.5 be used outdoors?
The operating temperature range is -40°C to +70°C, but the provided specs do not list an IP rating. Because no ingress-protection rating is given, outdoor exposure should not be assumed to be acceptable from these specs alone.
How does the HRP-600-7.5 compare with other 7.5V HRP power supplies?
Among the listed 7.5V siblings, HRP-75-7.5 is 75W and 10A, HRP-100-7.5 is 101.3W and 13.5A, HRP-150-7.5 is 150W and 20A, HRP-200-7.5 is 200.3W and 26.7A, HRP-300-7.5 is 300W and 40A, HRP-450-7.5 is 450W and 60A, and HRP-600-7.5 is 600W and 80A. This model is the highest-power listed 7.5V option in that group.
