Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

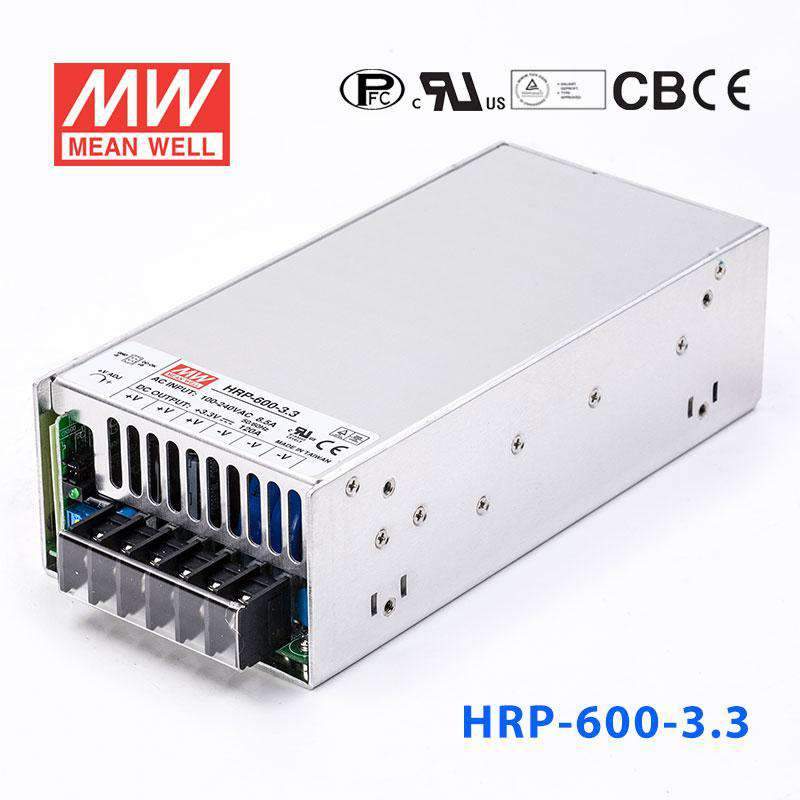

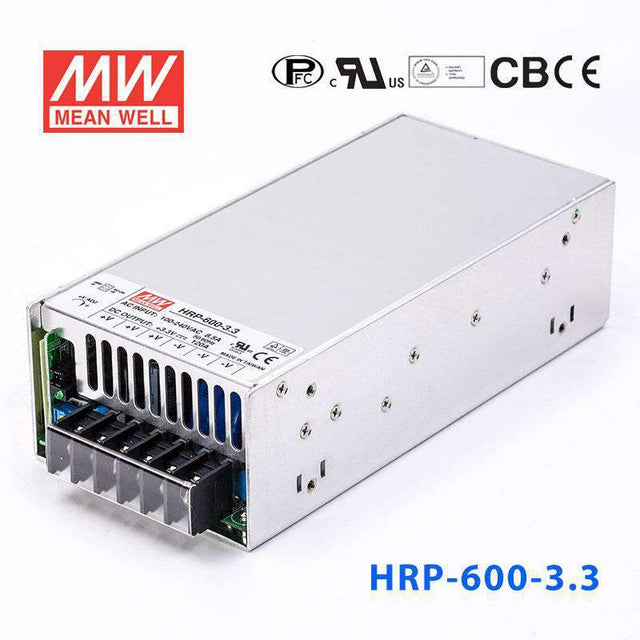

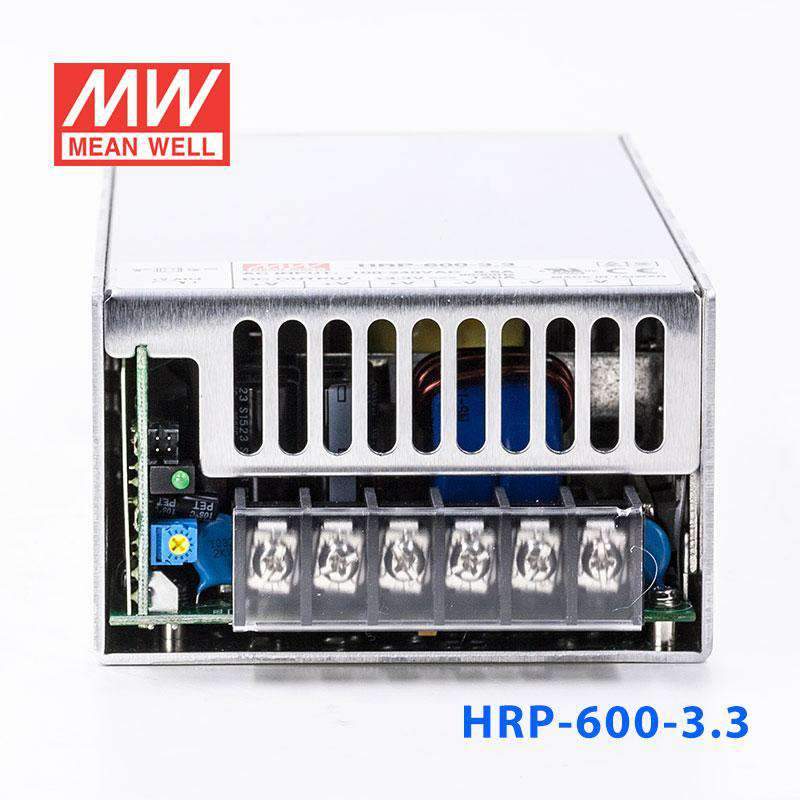

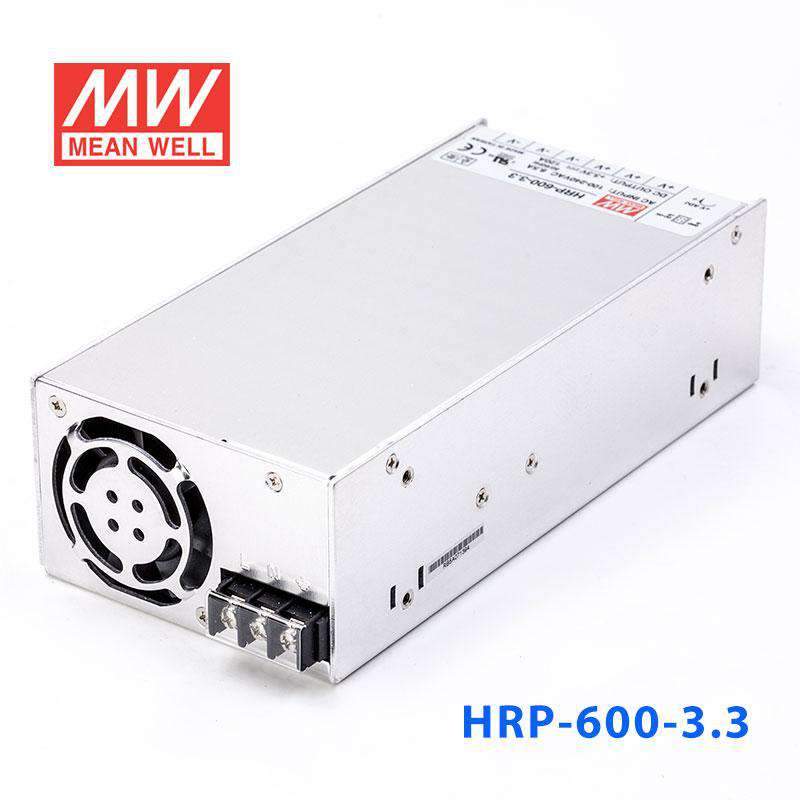

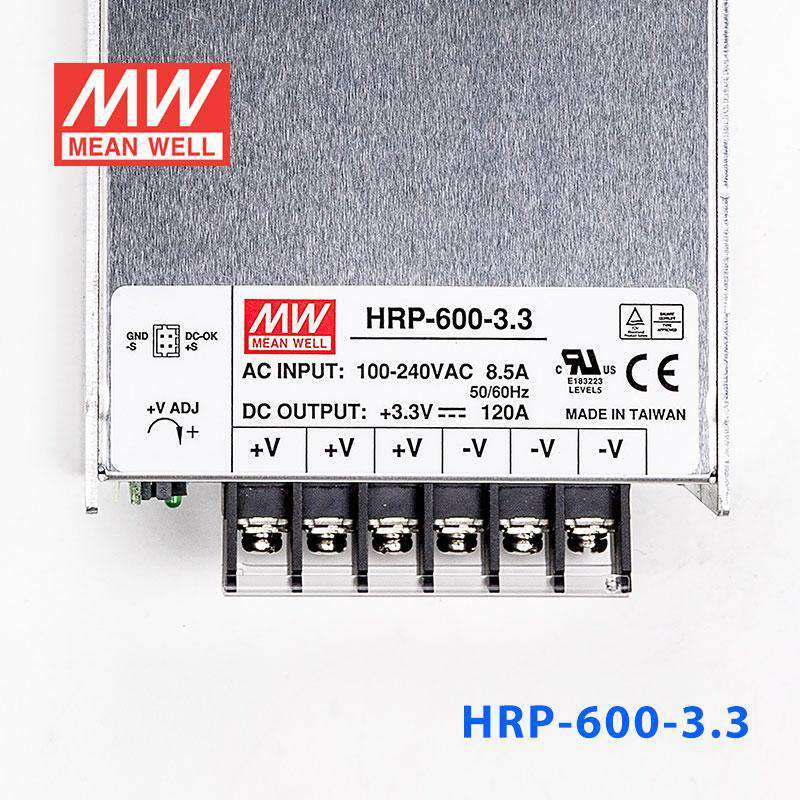

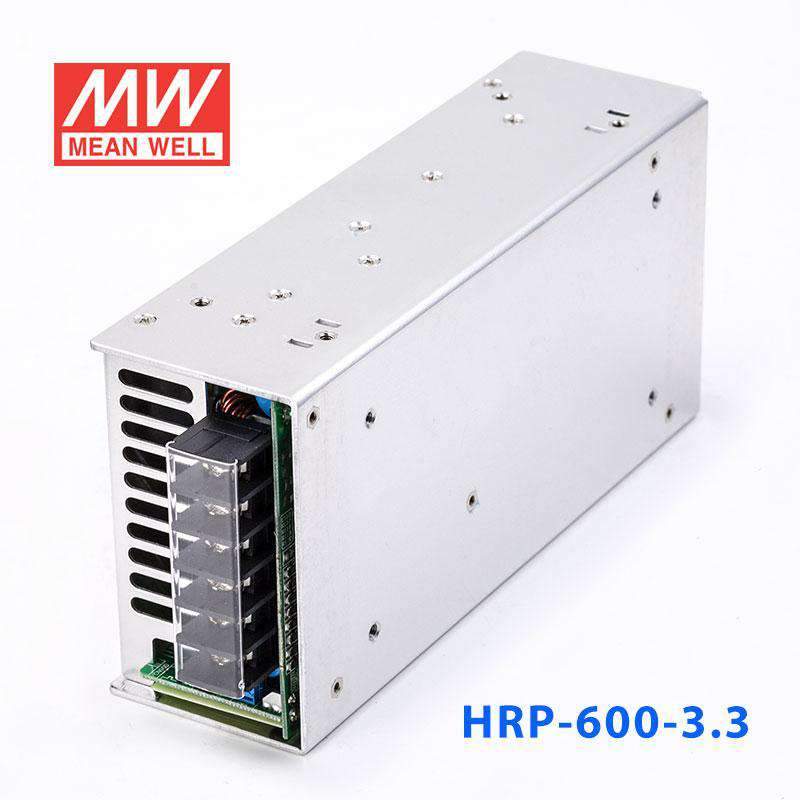

Mean Well HRP-600-3.3 Power Supply 396W 3.3V
$168.21 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Withstand 300VAC surge input for 5 seconds |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Built-in remote sense function |
| Forced air cooling by built-in DC fan |
| Built-in DC OK signal |
| 1U low profile |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | ±15% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -40~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level |
| Connection | 3+6P/10&11mm pitch terminal block with cover |
| Dimension (LxWxH) | 218x105x63.5 |
| Case No. | 977A |
Specifications
Specifications
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating396 Watt
-
Output Voltage3.3 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
