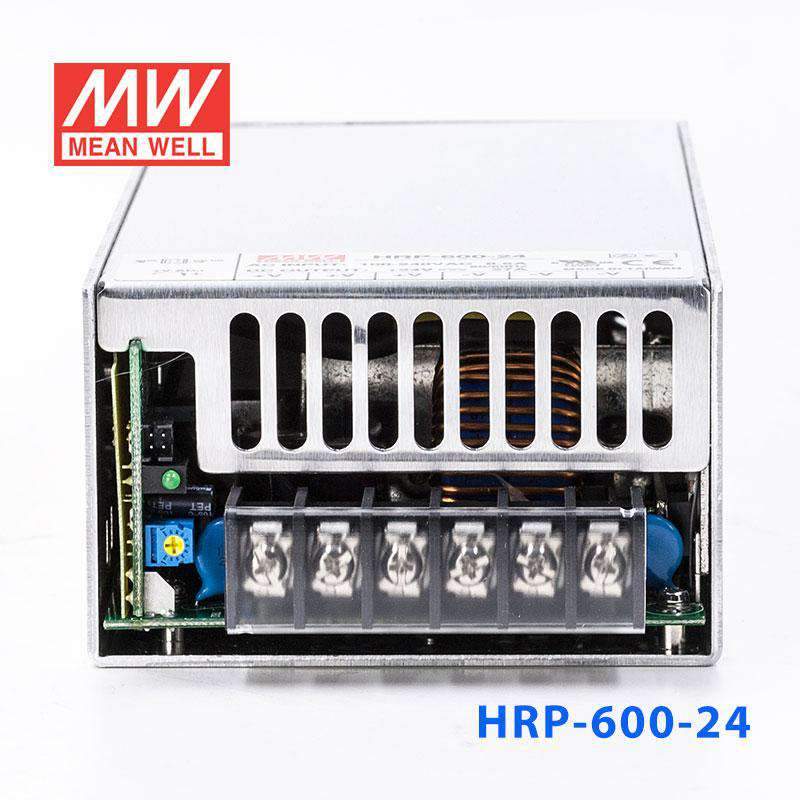

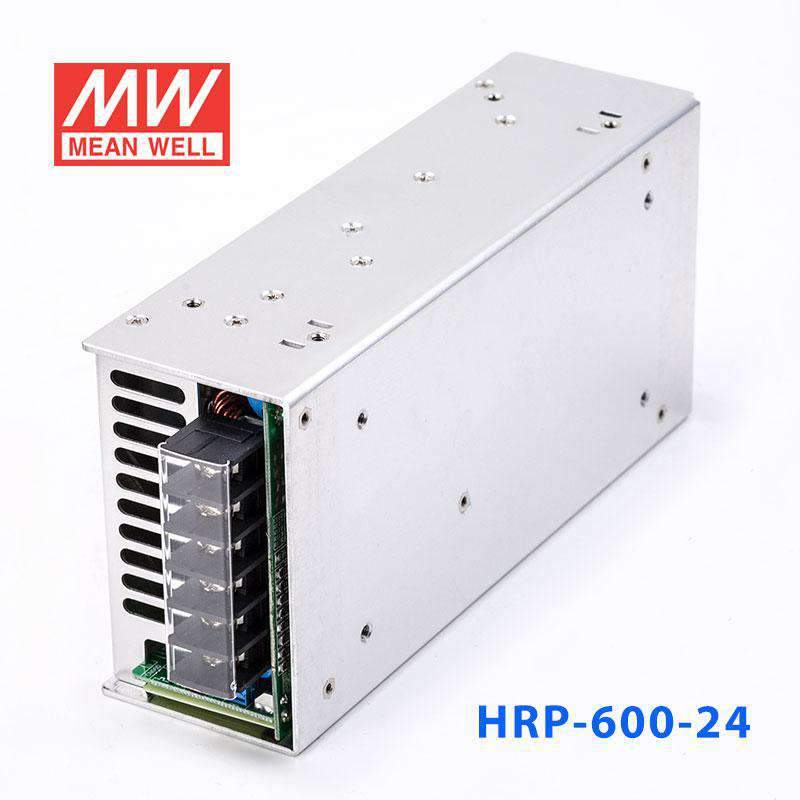

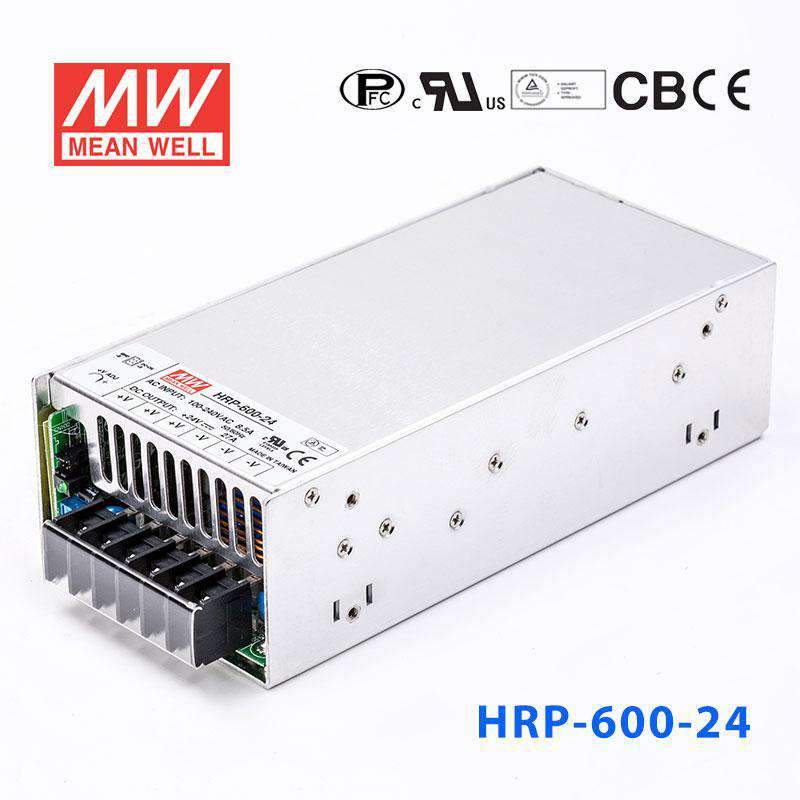

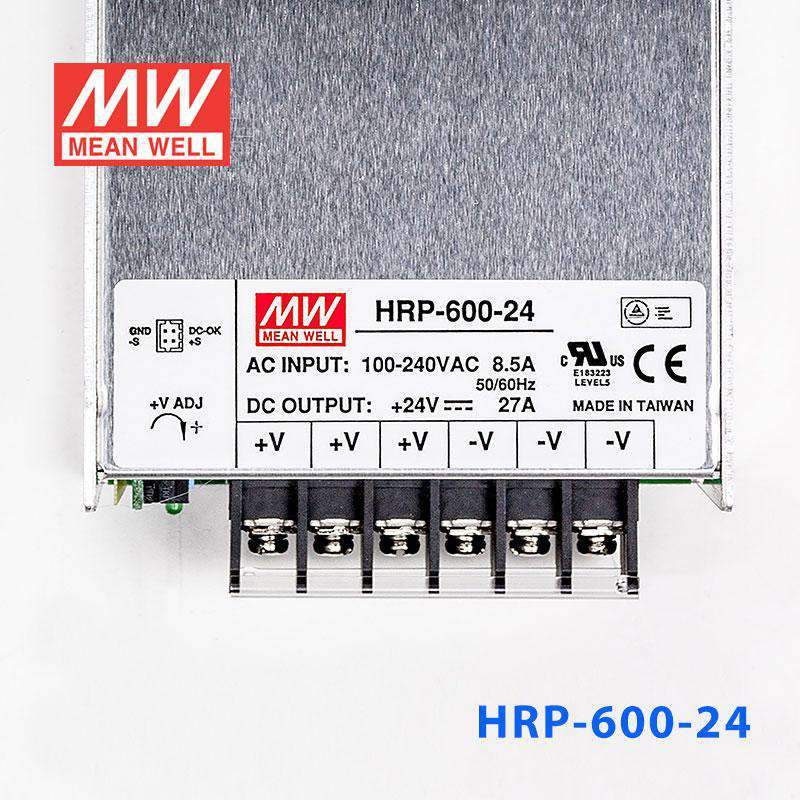

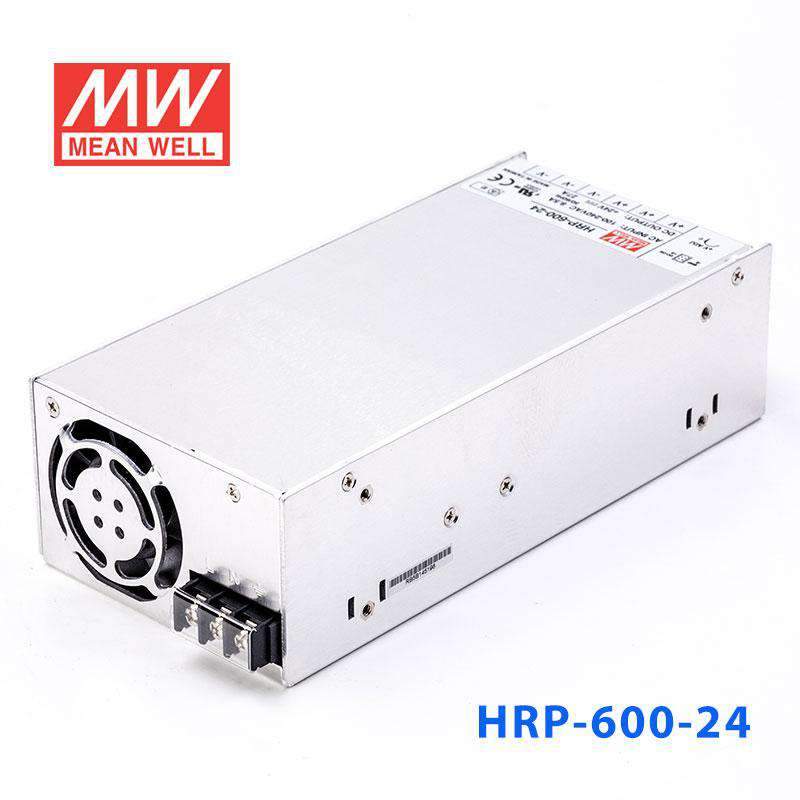

Mean Well HRP-600-24 Power Supply 648W 24V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating648 Watt
-
Output Voltage24 Volt
-
Rated Current27 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-24 for a 24V PLC or industrial automation panel?
Yes, this model is a constant voltage 24V supply rated for 27A and 648W, which aligns well with larger 24V automation loads. Its 85-264VAC input also supports use in facilities with different AC input standards.
Is the HRP-600-24 a good fit for centralized 24V control and I/O power?
It can be used where several 24V devices are powered from one supply, provided the combined load remains within 27A and 648W. That makes it relevant for control cabinets and industrial DC distribution built around a 24V bus.
Can this 24V model power larger embedded or industrial computing equipment that expects 24V DC input?
It is suited to equipment designed for a fixed 24V DC source because it operates in constant voltage mode. With 648W available, it offers more output capacity than smaller 24V units in the same family.
What are the main differences between the HRP-600-24 and the other HRP-600 versions?
The listed HRP-600 outputs are 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-24 is the 24V version in that group and shares the same 218.0 × 105.0 × 63.5 mm size and 1.5 kg weight.
Can the HRP-600-24 be used in cold or hot industrial environments?
Its specified operating range is -40°C to +70°C, which covers demanding indoor industrial temperature conditions. No IP rating is provided in the specs, so it should not be treated as an exposed outdoor power supply without an enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $156.44 | View |
| Mean Well HRP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $156.44 | View |
| Mean Well HRP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $156.44 | View |
| Mean Well HRP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $156.44 | View |
| Mean Well HRP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $142.22 | View |
| Mean Well HRP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $156.44 | View |
| Mean Well HRP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $146.47 | View |
