Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

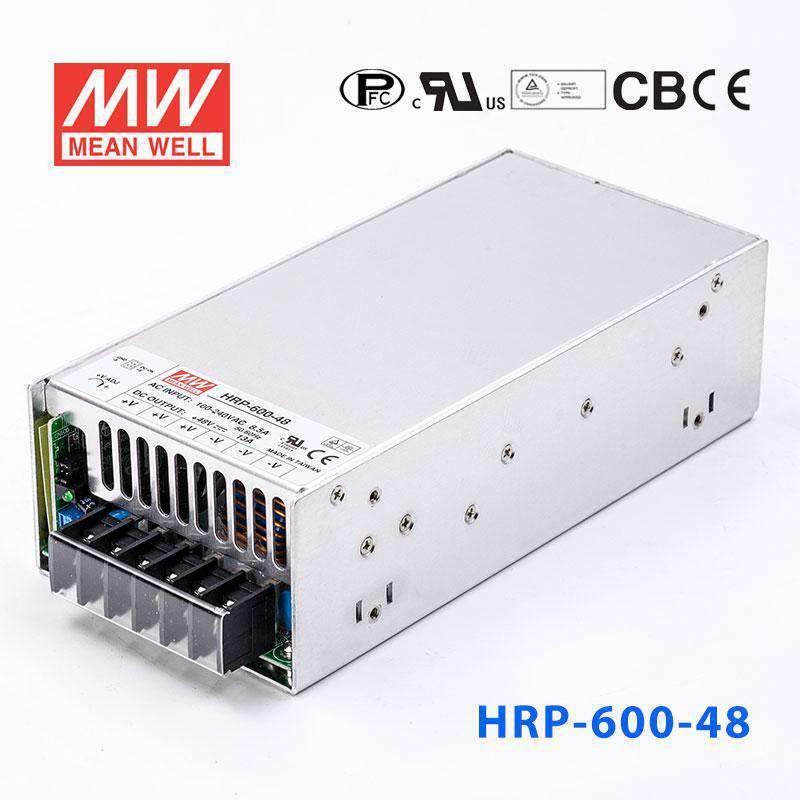

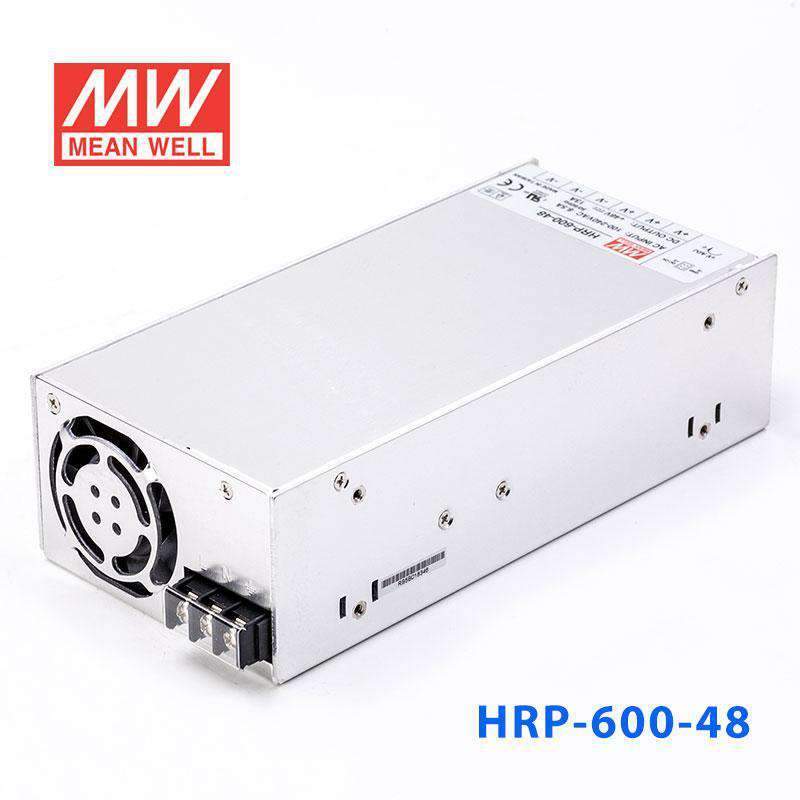

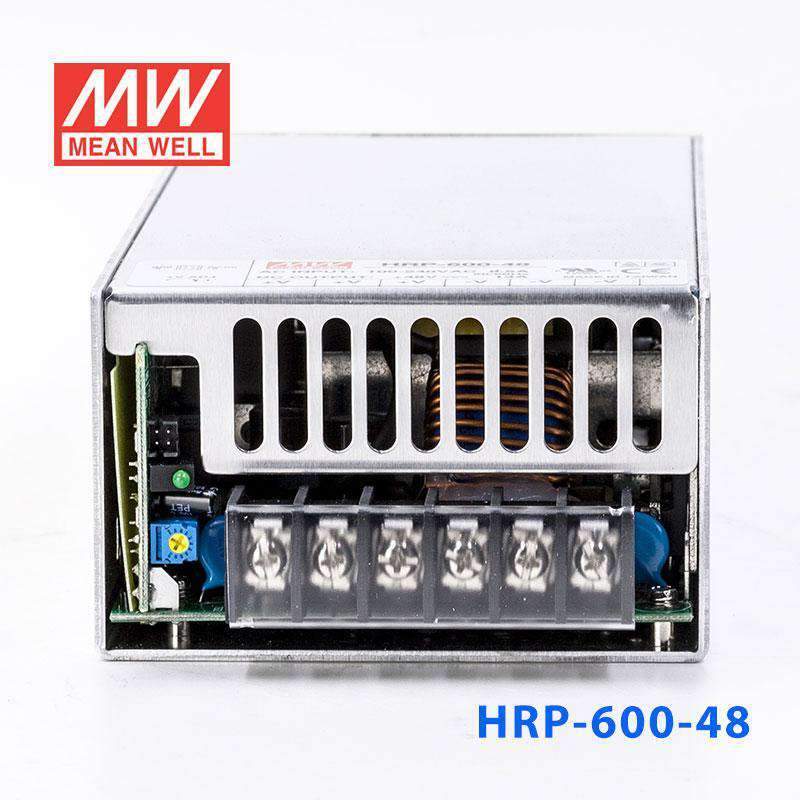

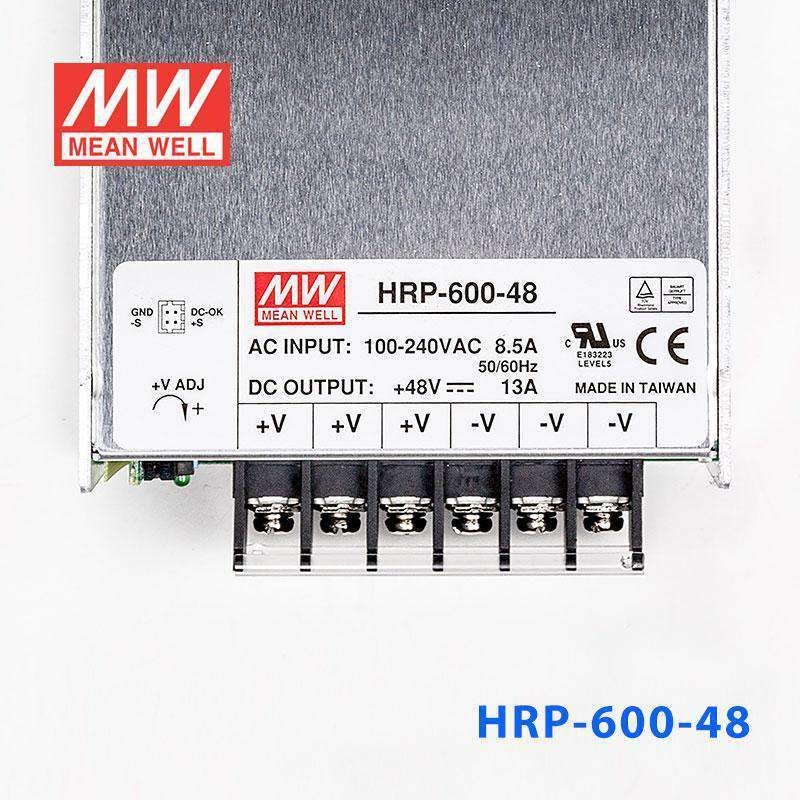

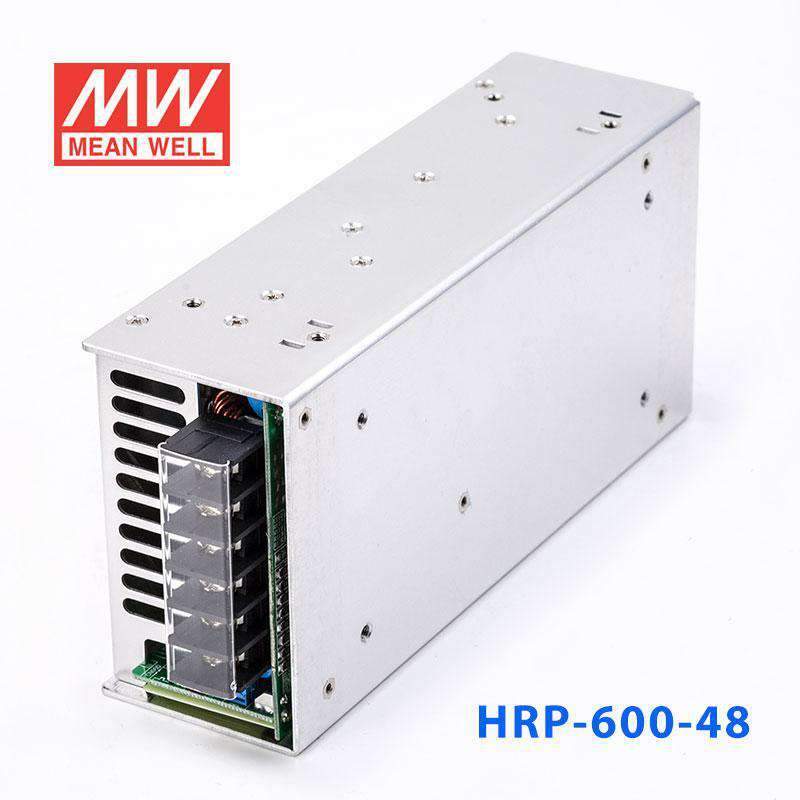

Mean Well HRP-600-48 Power Supply 624W 48V

Name: Mean Well HRP-600-48 Power Supply 624W 48V
Brand: Mean Well
SKU: HRP-600-48
Price: 152.93 USD
Availability: InStock

361 units in stock

$152.93 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±15% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH)	218x105x63.5
Case No.	977A
