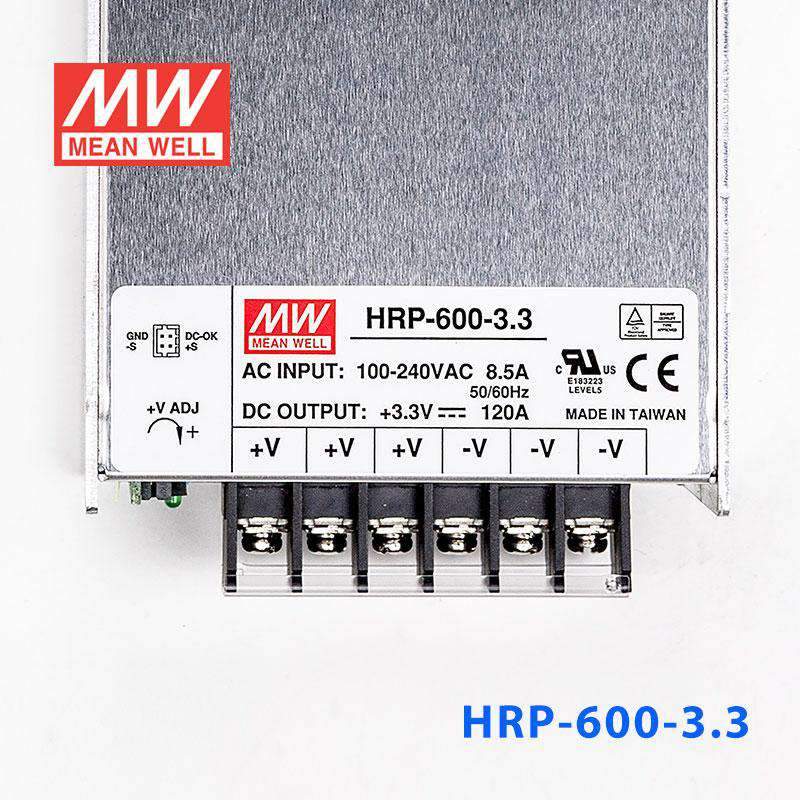

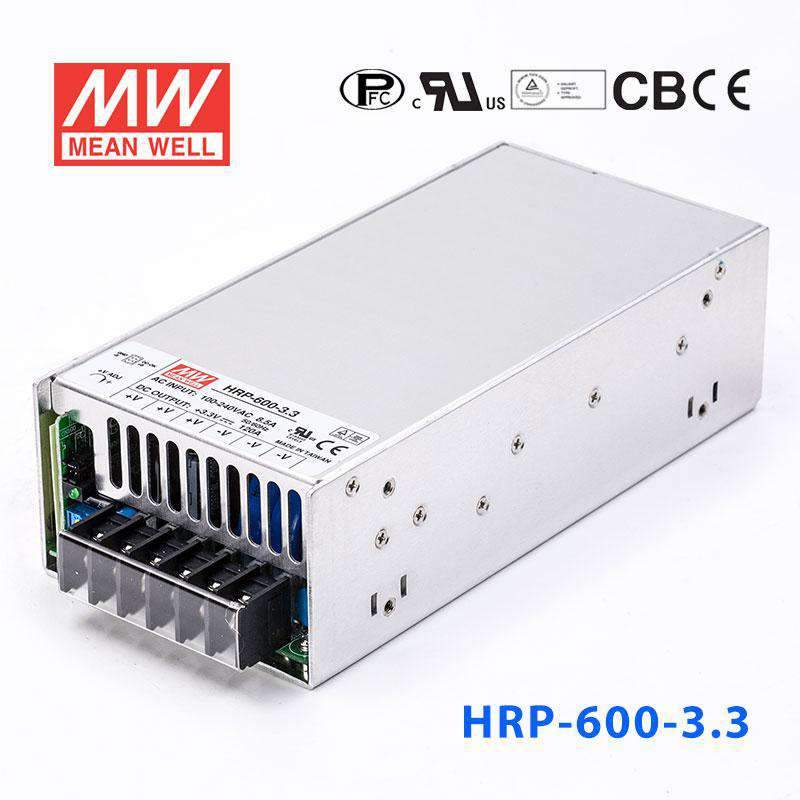

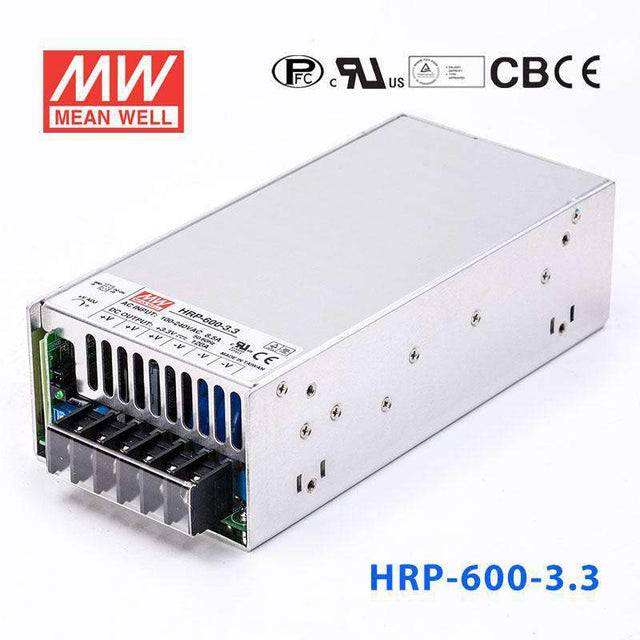

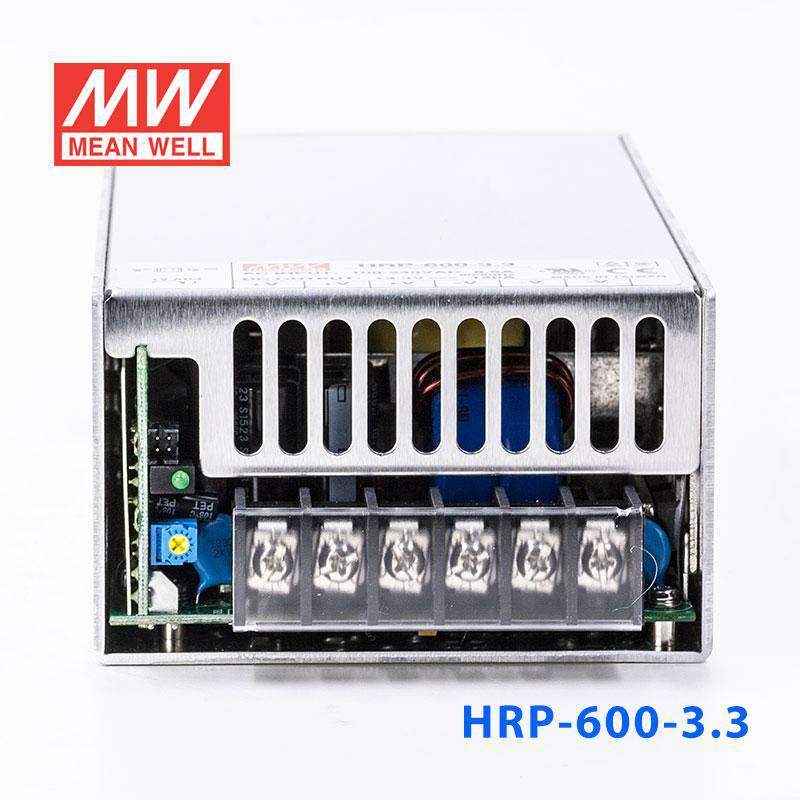

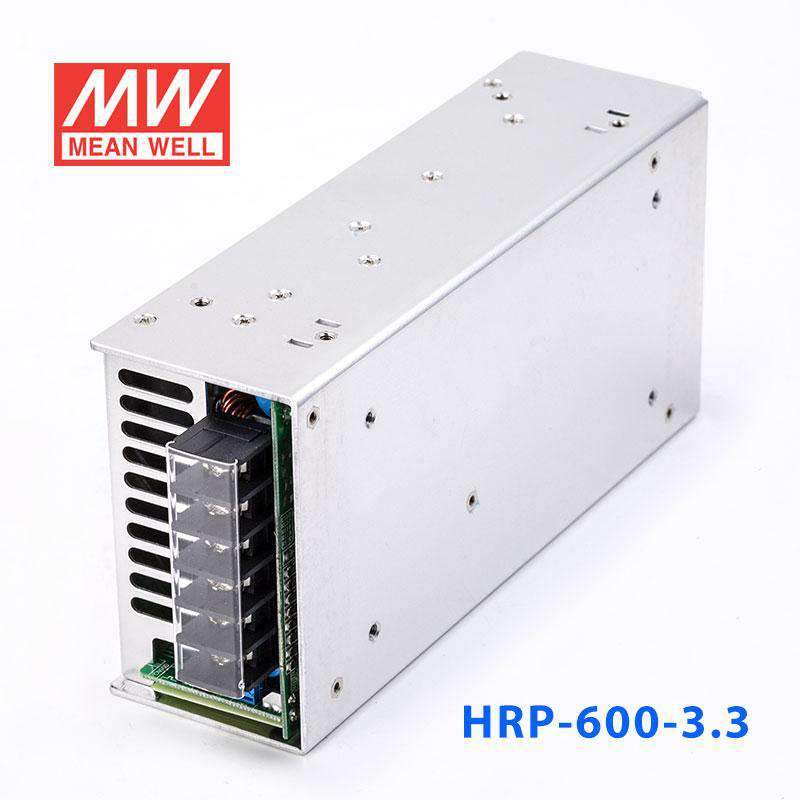

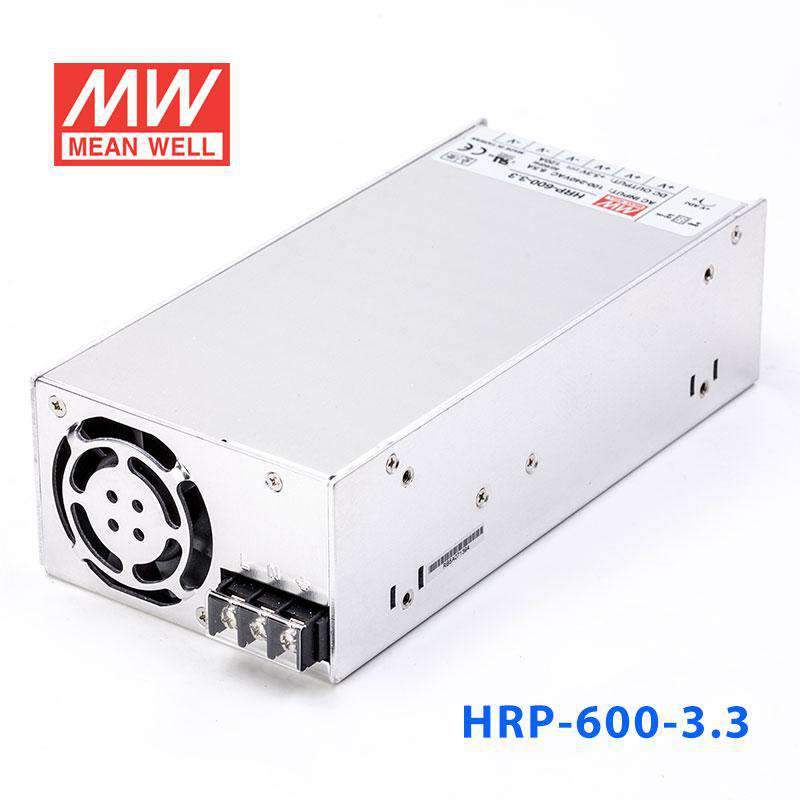

Mean Well HRP-600-3.3 Power Supply 396W 3.3V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating396 Watt
-
Output Voltage3.3 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-3.3 for high-current 3.3V logic or processor rails?
Yes, this model is built for constant voltage 3.3V output and is rated for 120A, with total output power of 396W. That makes it relevant for high-current 3.3V systems where a standard lower-current supply would be too small.
Is the HRP-600-3.3 suitable for embedded test platforms or backplanes that need a strong 3.3V bus?
It can fit embedded platforms that are designed around a fixed 3.3V input and require very high current capacity. The 120A rating is the key reason to consider this model over lower-output 3.3V variants.
Can this power supply support industrial electronics that run from a centralized 3.3V DC rail?
It is intended for constant voltage 3.3V applications, so it matches equipment that specifically needs a 3.3V rail rather than a higher-voltage DC bus. With 396W available, it is aimed at unusually high-current 3.3V loads rather than general-purpose industrial 24V systems.
How does the HRP-600-3.3 compare to the other HRP-600 output options?
The HRP-600 family versions listed are 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-3.3 is the lowest-voltage model in that group and the one with the highest listed current at 120A.
Is the HRP-600-3.3 appropriate for outdoor installations?
The unit is rated for operation from -40°C to +70°C, so temperature range alone is broad. However, no IP rating is listed, so it is better suited to indoor use or installation inside a protective enclosure instead of direct outdoor exposure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $156.44 | View |
| Mean Well HRP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $156.44 | View |
| Mean Well HRP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $156.44 | View |
| Mean Well HRP-600-5 Power Supply 600W 5V | 600W | 5V | 120A | Indoor | $156.44 | View |
| Mean Well HRP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $142.22 | View |
| Mean Well HRP-600-24 Power Supply 648W 24V | 648W | 24V | 27A | Indoor | $143.66 | View |
| Mean Well HRP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $146.47 | View |
