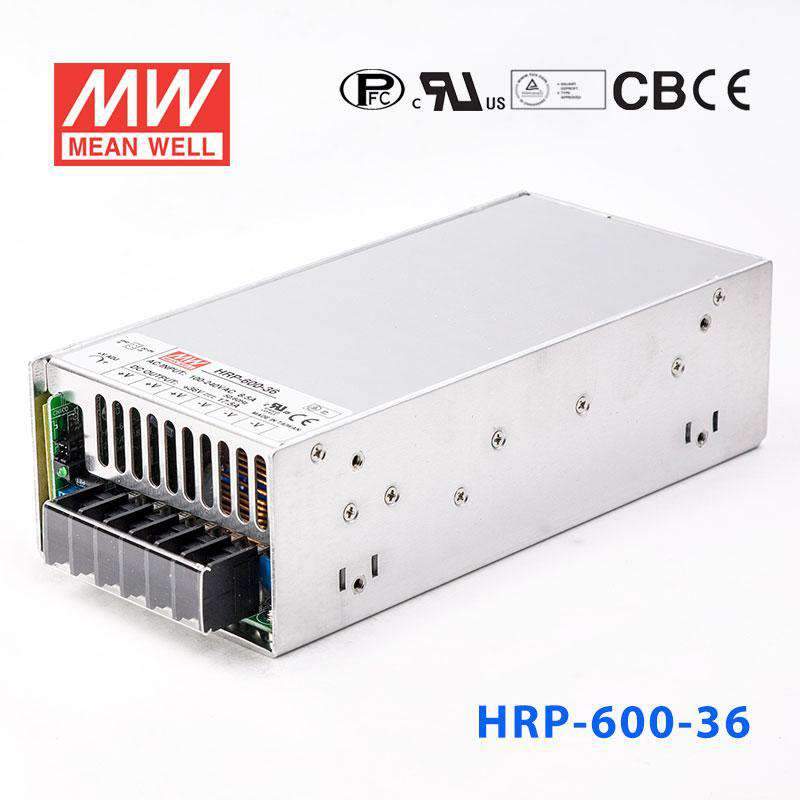

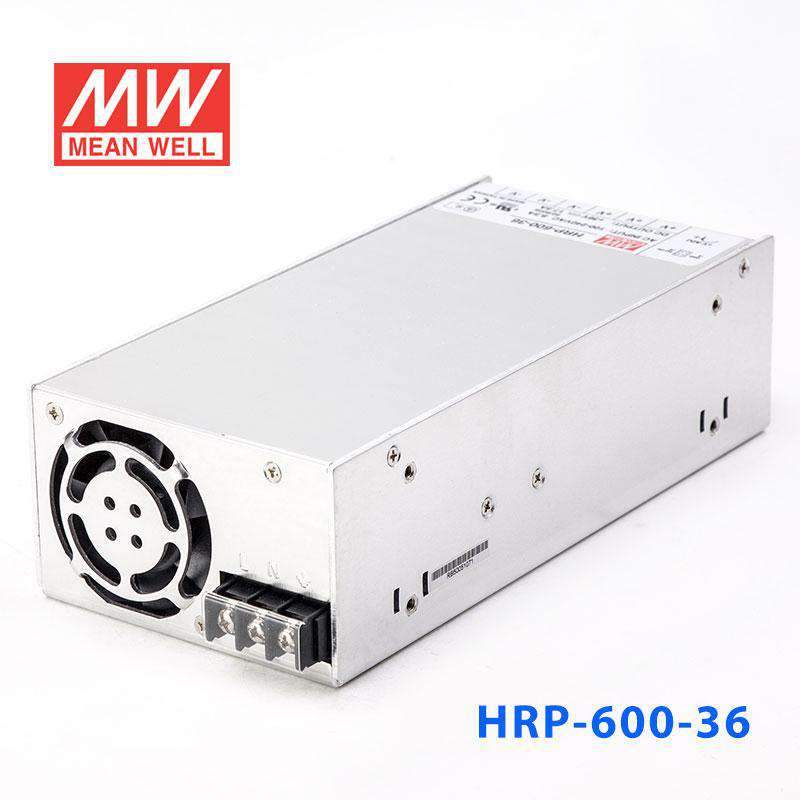

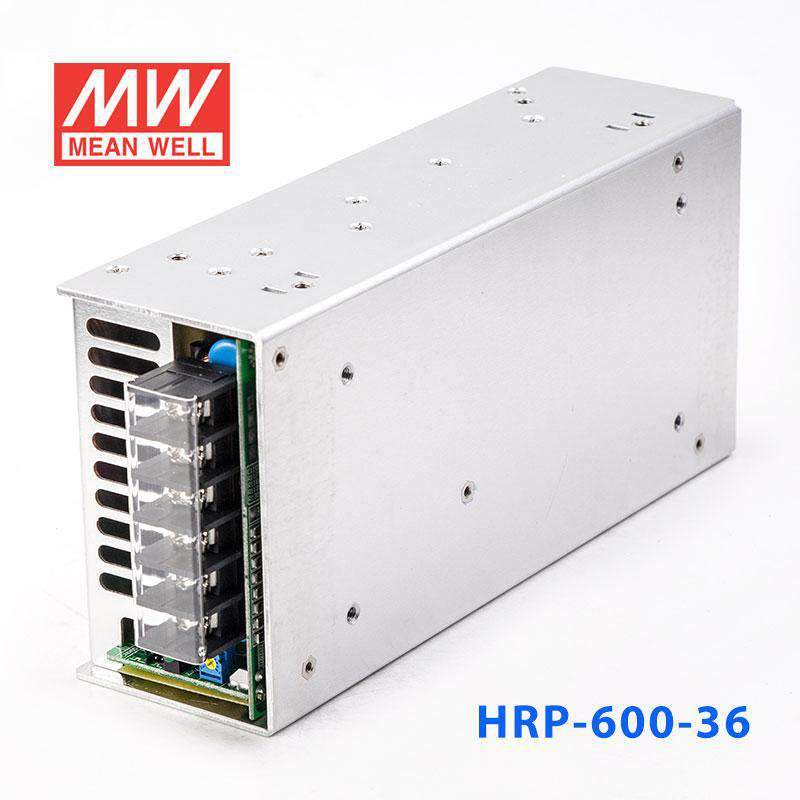

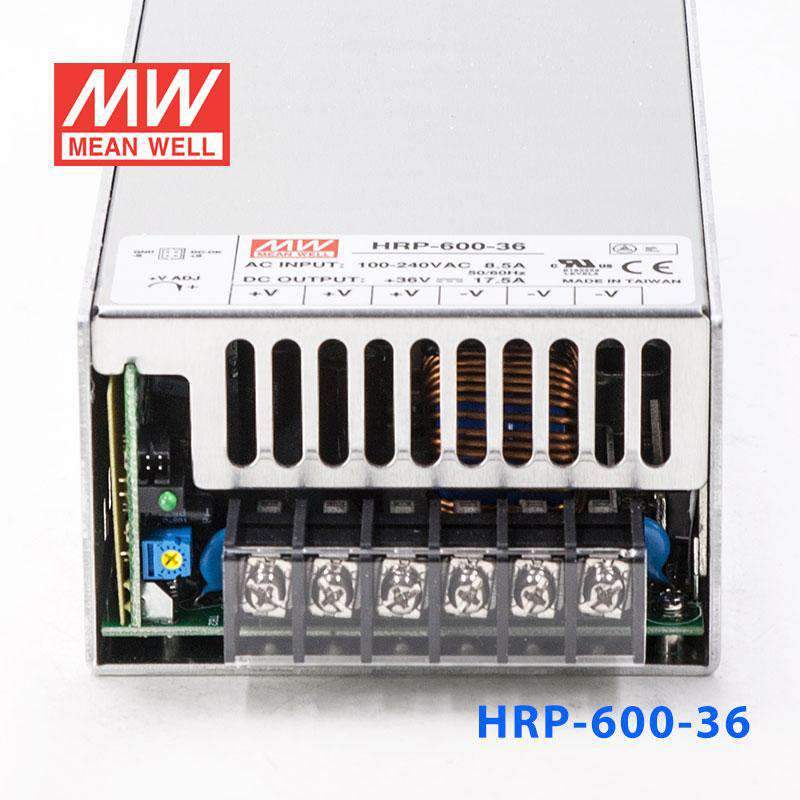

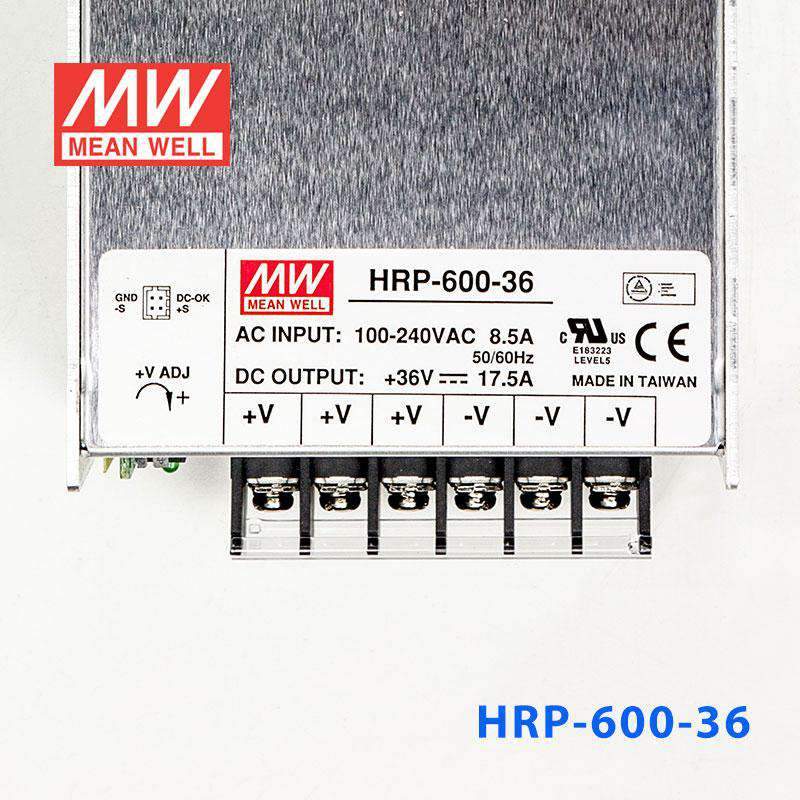

Mean Well HRP-600-36 Power Supply 630W 36V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating630 Watt
-
Output Voltage36 Volt
-
Rated Current17.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-36 for a 36V industrial control or motion system?
Yes, it is a constant voltage 36V supply rated for 17.5A and 630W, which suits higher-load 36V equipment. It is a better match for systems specifically designed around a fixed 36V DC input than lower-voltage HRP-600 versions.
Is the HRP-600-36 suitable for centralized 36V DC distribution in automation equipment?
It can be used where multiple 36V loads share one supply, as long as the combined demand remains within 17.5A and 630W. That makes it relevant for larger automation or industrial electronics assemblies using a 36V bus.
Can this model power embedded or industrial devices that expect a regulated 36V input?
It is built for constant voltage output at 36V, so it fits equipment that requires a fixed 36V source. The available 630W gives it substantially more capacity than smaller 36V models in the same series.
What is the difference between the HRP-600-36 and the other HRP-600 models?
The listed HRP-600 outputs are 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-36 is the 36V option in that set, while keeping the same 218.0 × 105.0 × 63.5 mm dimensions and 1.5 kg weight.
Can the HRP-600-36 handle demanding temperature conditions?
Its operating temperature range is -40°C to +70°C, so it is specified for a wide range of indoor industrial conditions. Since no IP rating is listed, it should be treated as a protected-location power supply rather than an exposed outdoor unit.
