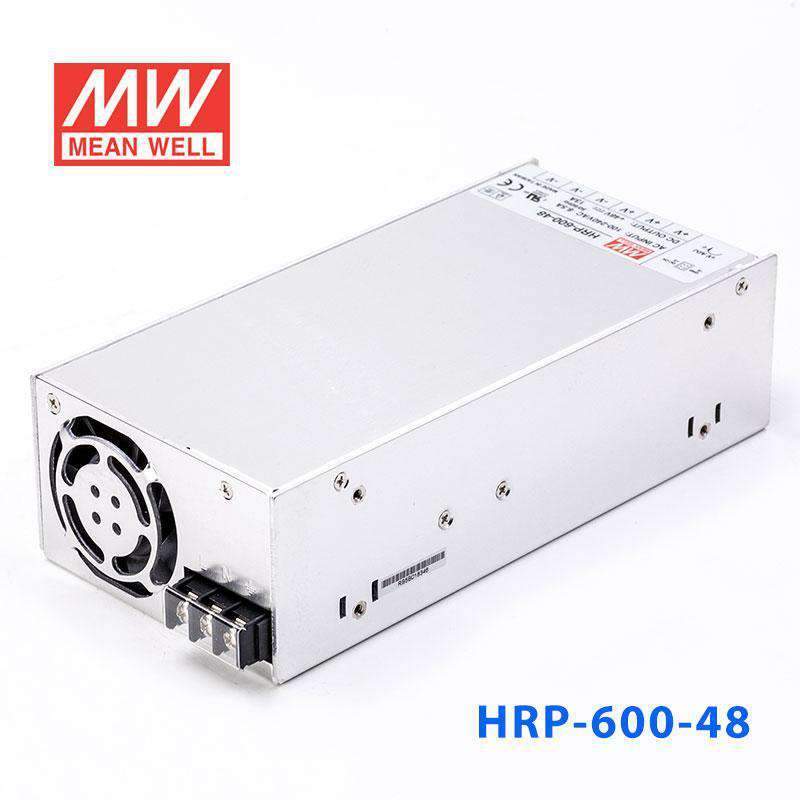

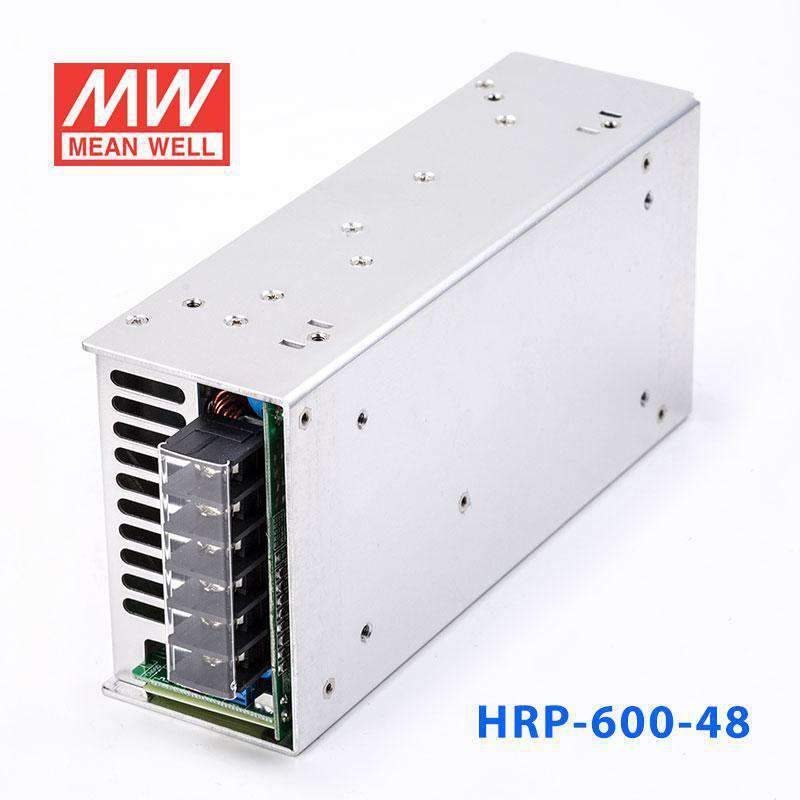

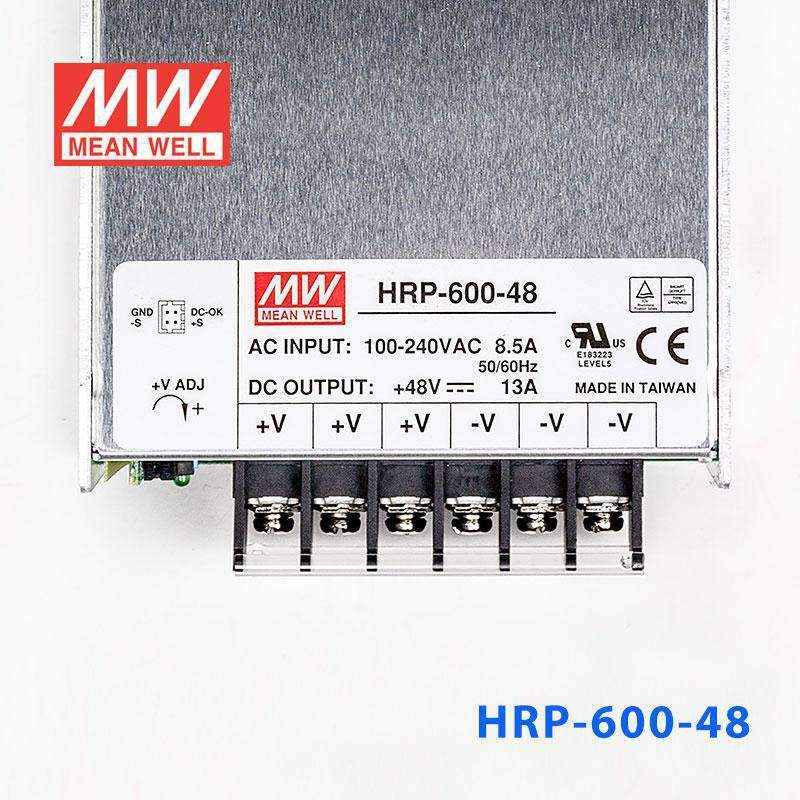

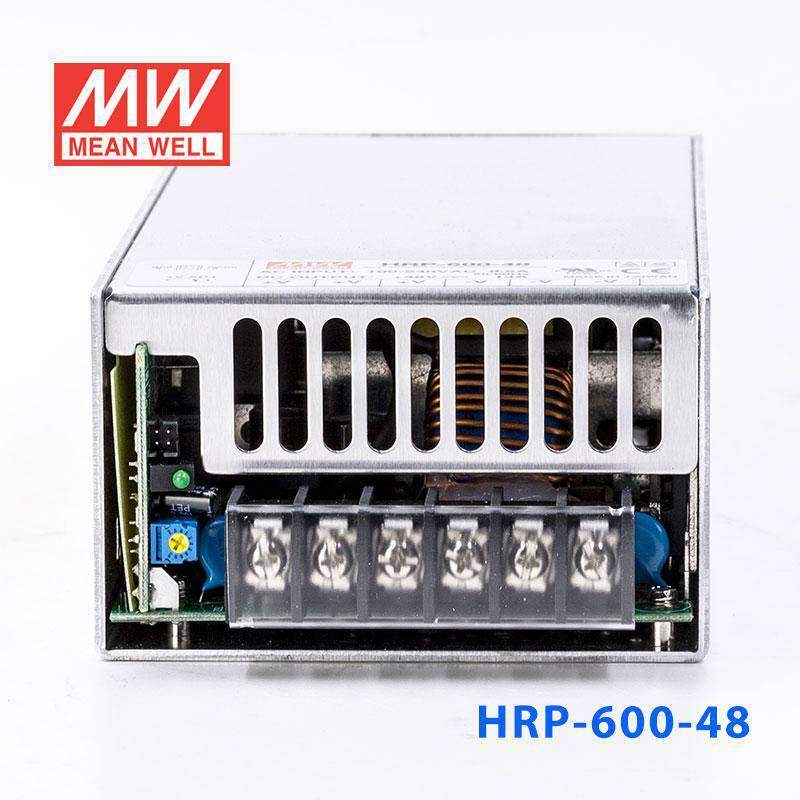

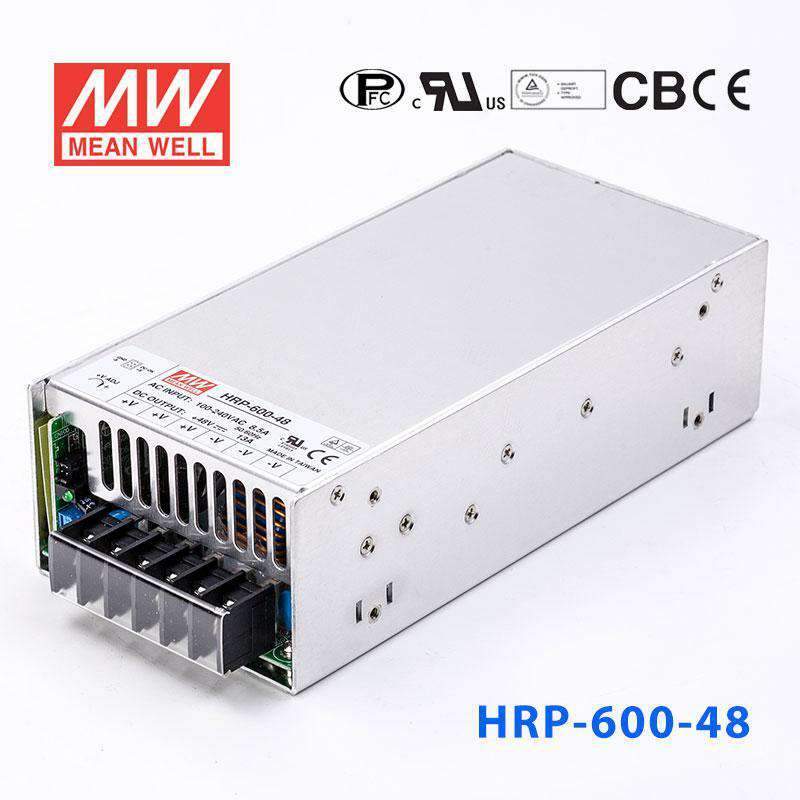

Mean Well HRP-600-48 Power Supply 624W 48V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating624 Watt
-
Output Voltage48 Volt
-
Rated Current13 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-48 for 48V telecom or network power systems?
Yes, this model provides constant voltage 48V output at 13A, with 624W total power. That makes it a practical fit for equipment designed around a 48V DC bus rather than lower-voltage industrial rails.
Is the HRP-600-48 suitable for industrial Ethernet or communications equipment that runs on 48V DC?
It is suitable when the equipment requires a regulated 48V input and the total load stays within 13A and 624W. The wide 85-264VAC input also helps in facilities using different AC mains ranges.
Can the HRP-600-48 be used for a centralized 48V power bus in control cabinets?
It can fit centralized 48V distribution where multiple loads share one supply, provided the combined demand does not exceed 13A or 624W. Its constant voltage design is intended for systems built around a fixed 48V rail.
How does the HRP-600-48 compare with the other HRP-600 voltage options?
The HRP-600 range listed here includes 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-48 is the highest-voltage standard-output model in that group and shares the same 218.0 × 105.0 × 63.5 mm housing and 1.5 kg weight.
Is the HRP-600-48 rated for outdoor use or washdown areas?
The operating temperature spec is -40°C to +70°C, so the unit covers a broad temperature range. However, there is no IP rating listed in the provided specs, so it should be used indoors or inside a suitable protective enclosure rather than in exposed outdoor or washdown locations.
