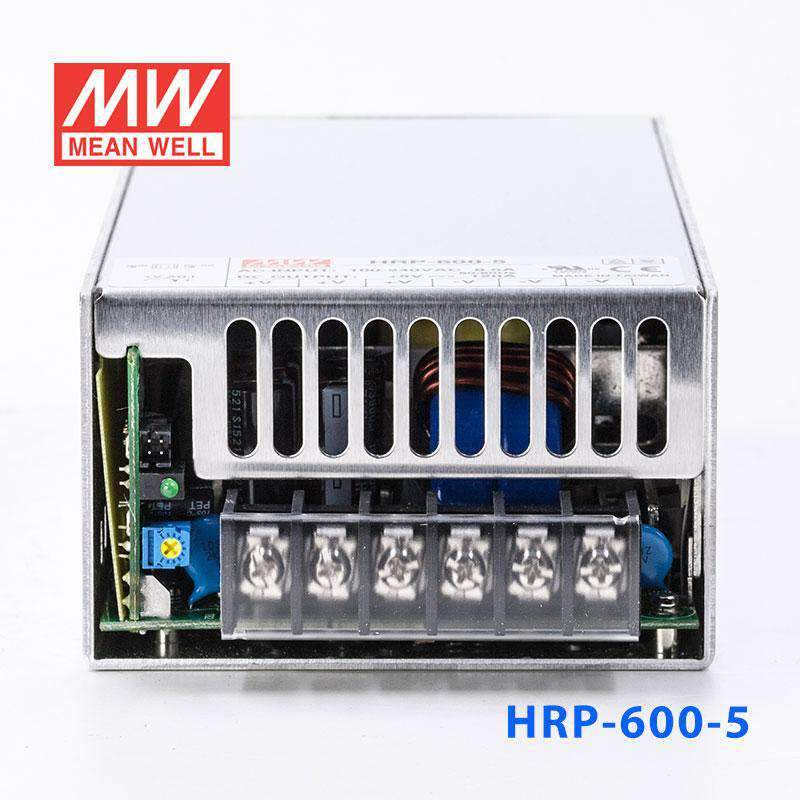

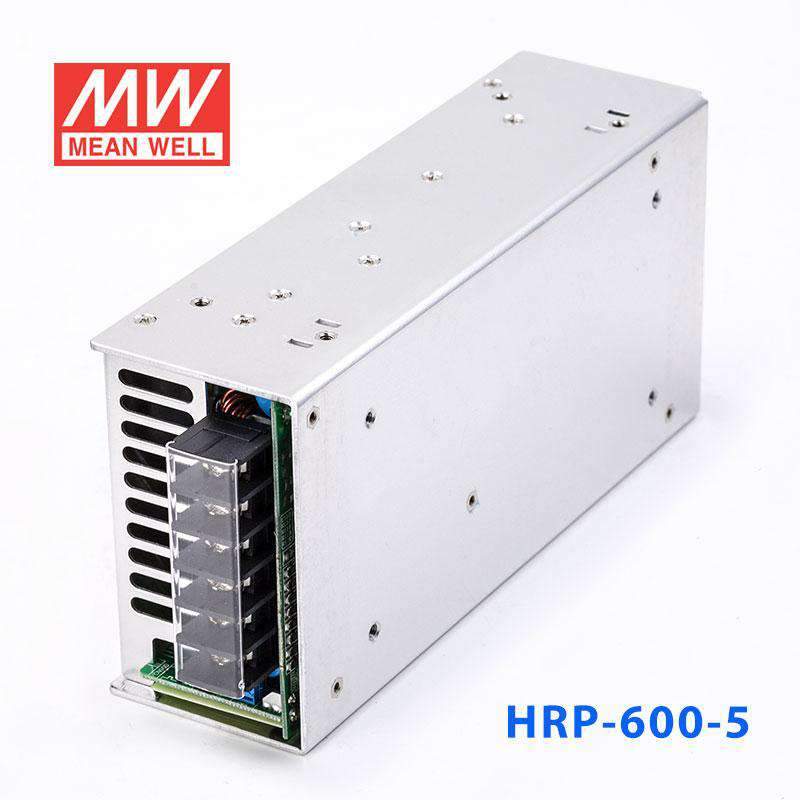

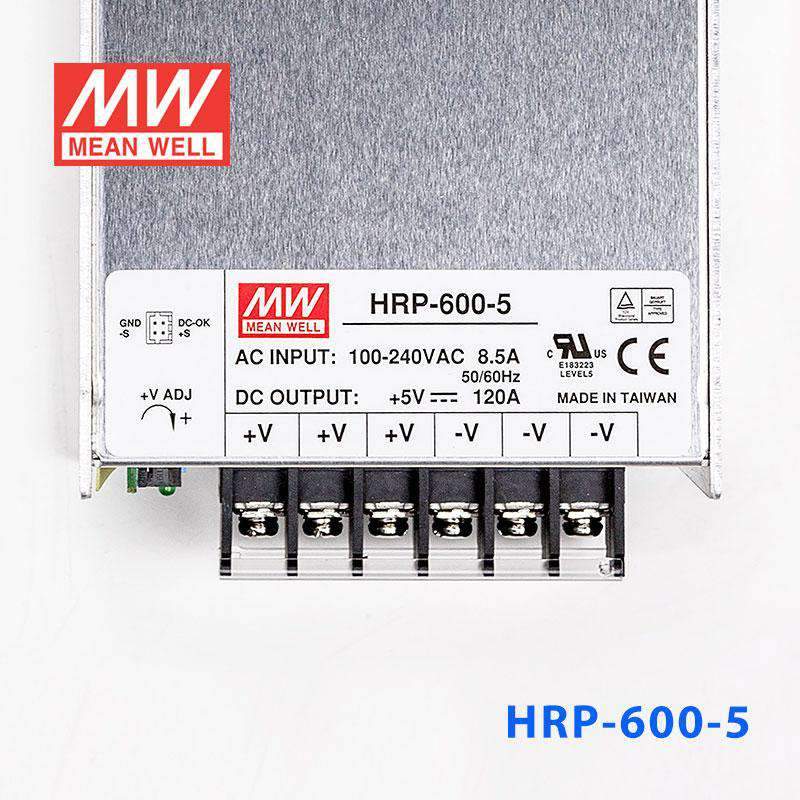

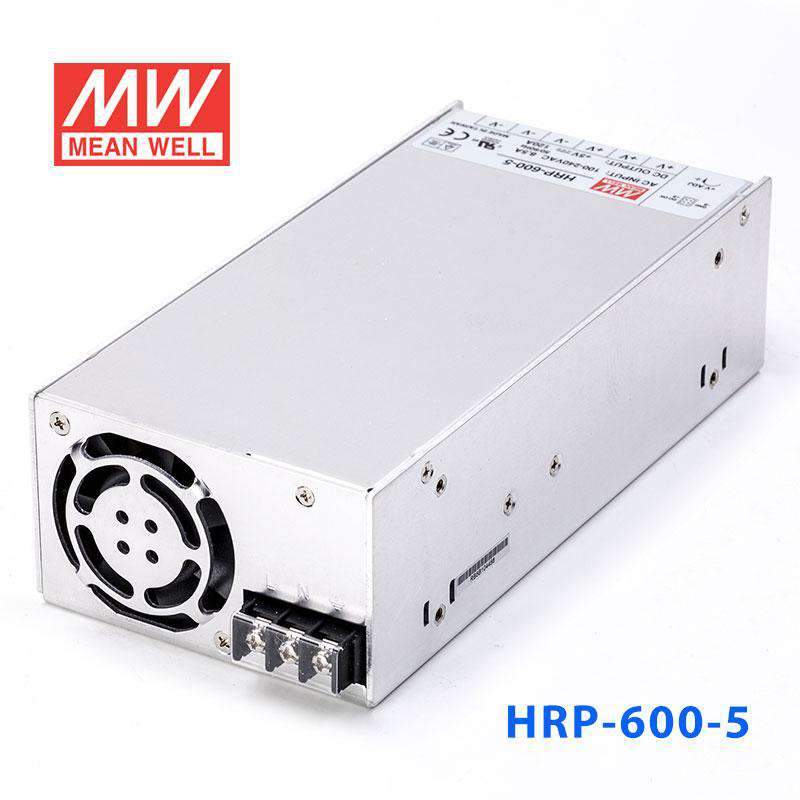

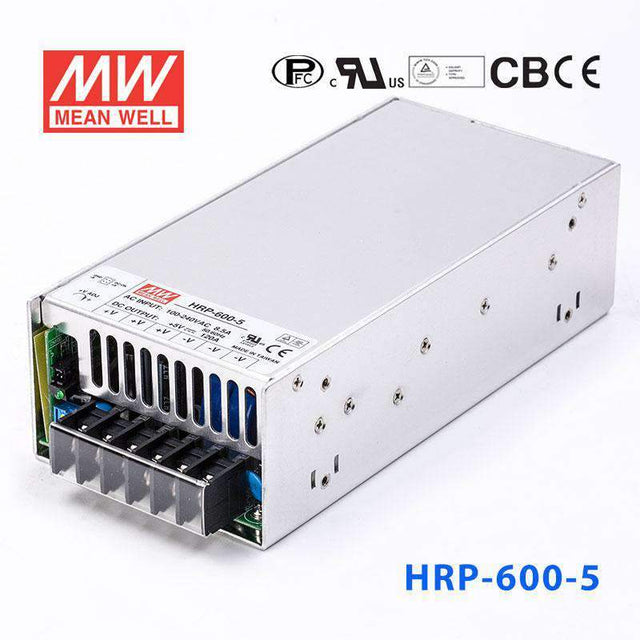

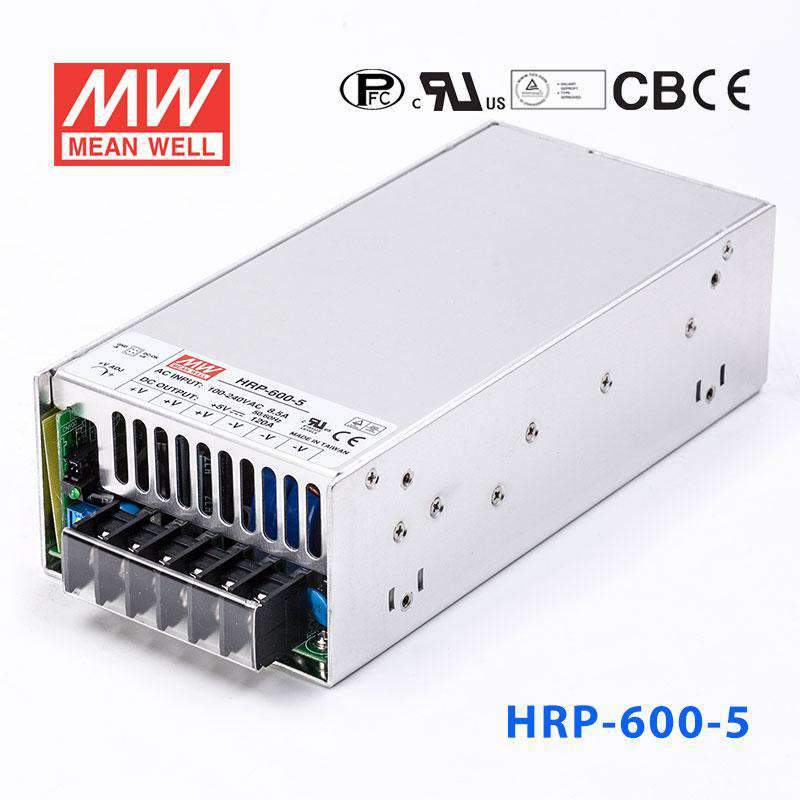

Mean Well HRP-600-5 Power Supply 600W 5V
The HRP-600 is a 600W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRP Series
-
Power Rating600 Watt
-
Output Voltage5 Volt
-
Rated Current120 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.31 lb
::specification::
Frequently Asked Questions
Can I use the HRP-600-5 for a high-current 5V industrial control or embedded system?
Yes, this model is a constant voltage 5V supply rated for 600W and up to 120A. That makes it suitable for large 5V control electronics, embedded computing racks, or other industrial systems that specifically require a regulated 5V DC bus.
Is the HRP-600-5 a good fit for powering multiple 5V single-board computers or edge devices from one supply?
It can be a strong fit when the overall load stays within 5V, 600W, and 120A. The wide 85-264VAC input also helps in IT or embedded deployments where the AC source may vary across sites.
Can this 5V 600W power supply be used for a 5V production test bench or burn-in rack?
Yes, a 5V output with 120A capacity is well suited to centralized DC power for 5V test fixtures, validation stations, or burn-in environments. Its operating temperature range of -40°C to +70°C also supports use in harsher industrial settings than office-only equipment.
Would the HRP-600-5 work for 5V industrial LED or display electronics with heavy current demand?
It can, as long as the connected equipment is designed for constant voltage 5V input and the total demand remains within 600W and 120A. This model is better suited to high-current 5V electronics than lower-power members of the same family.
Is the HRP-600-5 suitable for outdoor or washdown environments?
The provided specs list an operating temperature range of -40°C to +70°C, but they do not include an IP rating. Without an IP rating in the specs, this model should not be assumed to be weatherproof or suitable for washdown exposure.
How does the HRP-600-5 compare with other 600W HRP models?
Within the 600W HRP group, the listed variants are HRP-600-3.3 at 396W and 3.3V 120A, HRP-600-5 at 600W and 5V 120A, HRP-600-7.5 at 600W and 7.5V 80A, HRP-600-12 at 636W and 12V 53A, HRP-600-15 at 645W and 15V 43A, HRP-600-24 at 648W and 24V 27A, HRP-600-36 at 630W and 36V 17.5A, and HRP-600-48 at 624W and 48V 13A. The main difference across these siblings is the output voltage and corresponding output current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRP-600 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRP-600-36 Power Supply 630W 36V | 630W | 36V | 17.5A | Indoor | $156.44 | View |
| Mean Well HRP-600-12 Power Supply 636W 12V | 636W | 12V | 53A | Indoor | $156.44 | View |
| Mean Well HRP-600-7.5 Power Supply 600W 7.5V | 600W | 7.5V | 80A | Indoor | $156.44 | View |
| Mean Well HRP-600-48 Power Supply 624W 48V | 624W | 48V | 13A | Indoor | $142.22 | View |
| Mean Well HRP-600-3.3 Power Supply 396W 3.3V | 396W | 3.3V | 120A | Indoor | $156.44 | View |
| Mean Well HRP-600-24 Power Supply 648W 24V | 648W | 24V | 27A | Indoor | $143.66 | View |
| Mean Well HRP-600-15 Power Supply 645W 15V | 645W | 15V | 43A | Indoor | $146.47 | View |
