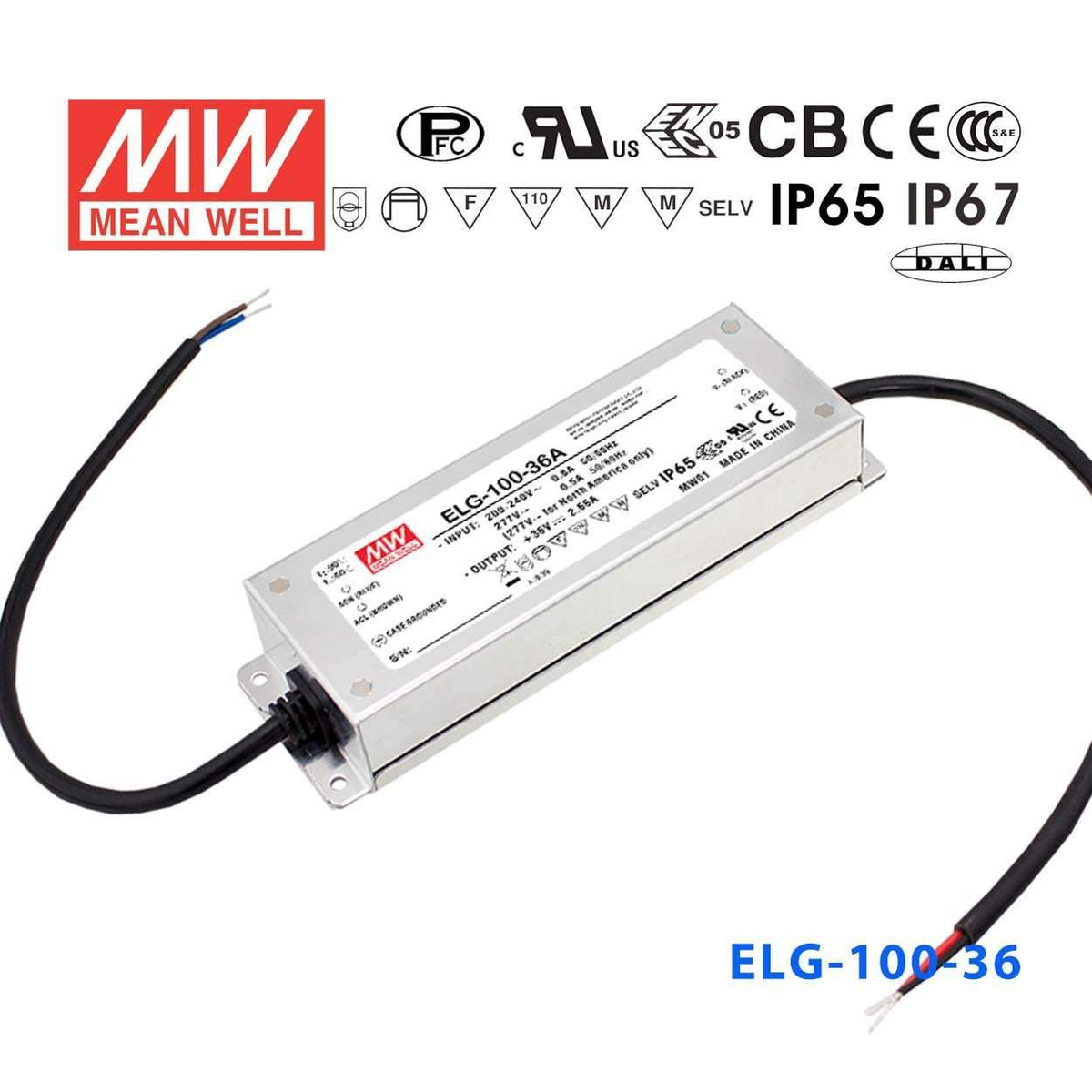

Mean Well ELG-100-36AB Power Supply 100W 36V - Adjustable and Dimma...
The ELG-100 is a 95.76W Mean Well AC-DC LED driver (input: 100~305VAC, output: 36V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 36V
- ✓ Rated output current: 2.66A
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating95.76 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-36AB with a 1-10V wall dimmer to control 36V LED strip brightness?
Yes. The ELG-100-36AB accepts both 1-10V and PWM dimming signals, so a standard 1-10V wall dimmer or lighting controller can smoothly vary the 36V LED strip output. It also has a built-in potentiometer for setting the maximum output level before the dimmer range is applied.
Is the ELG-100-36AB a good choice for a BMS or building automation system controlling 36V LED fixtures?
Yes. Its 1-10V dimming input is compatible with most BMS and building automation lighting outputs. Combined with 95.76W at 36V and adjustable output, it gives both automated percentage control and a fixed maximum set point, which is useful in office or commercial LED lighting systems.
Can the ELG-100-36AB power 36V LED strip for museum or gallery accent lighting with dimming?
Yes. The combination of PWM/1-10V dimming and adjustable current output makes the ELG-100-36AB suitable for display and accent lighting where precise, flicker-free brightness control is important. At 95.76W and 36V it can supply a substantial LED strip run in a gallery or retail showroom.
How many meters of 36V LED strip can the ELG-100-36AB drive?
The ELG-100-36AB provides up to 95.76W at 36V. Divide 95.76 by your strip's power per meter to get the maximum run. For a strip rated at 12W/m, that is approximately 7.98 meters (95.76W / 12W per meter). Always check your strip's rated power per meter and stay within 95.76W total load.
Is the ELG-100-36AB waterproof enough for a damp equipment room or covered outdoor soffit?
The ELG-100-36AB is IP65 rated, protecting against low-pressure water jets and full dust ingress. This is adequate for damp indoor environments and covered outdoor locations. For fully exposed outdoor rain or wet-location use, the IP67-rated ELG-100-36B or ELG-100-36 would provide a higher level of protection.
