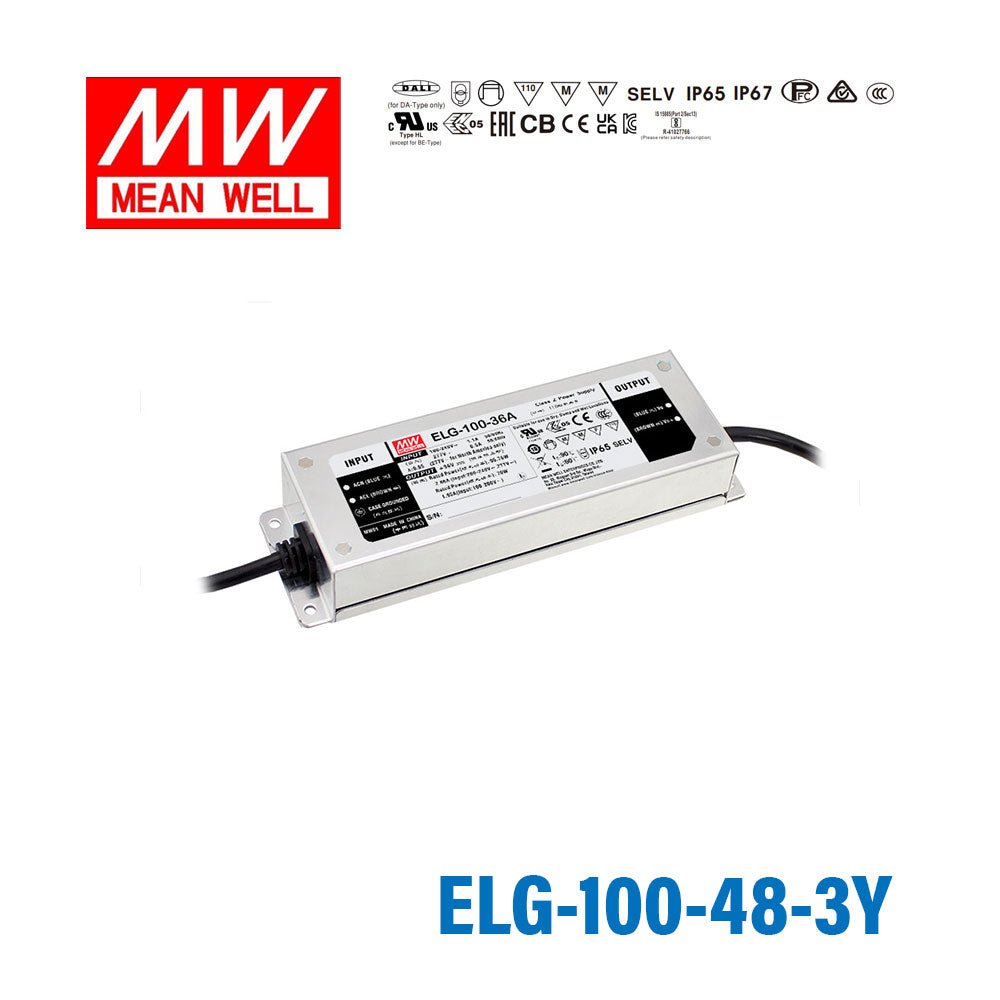

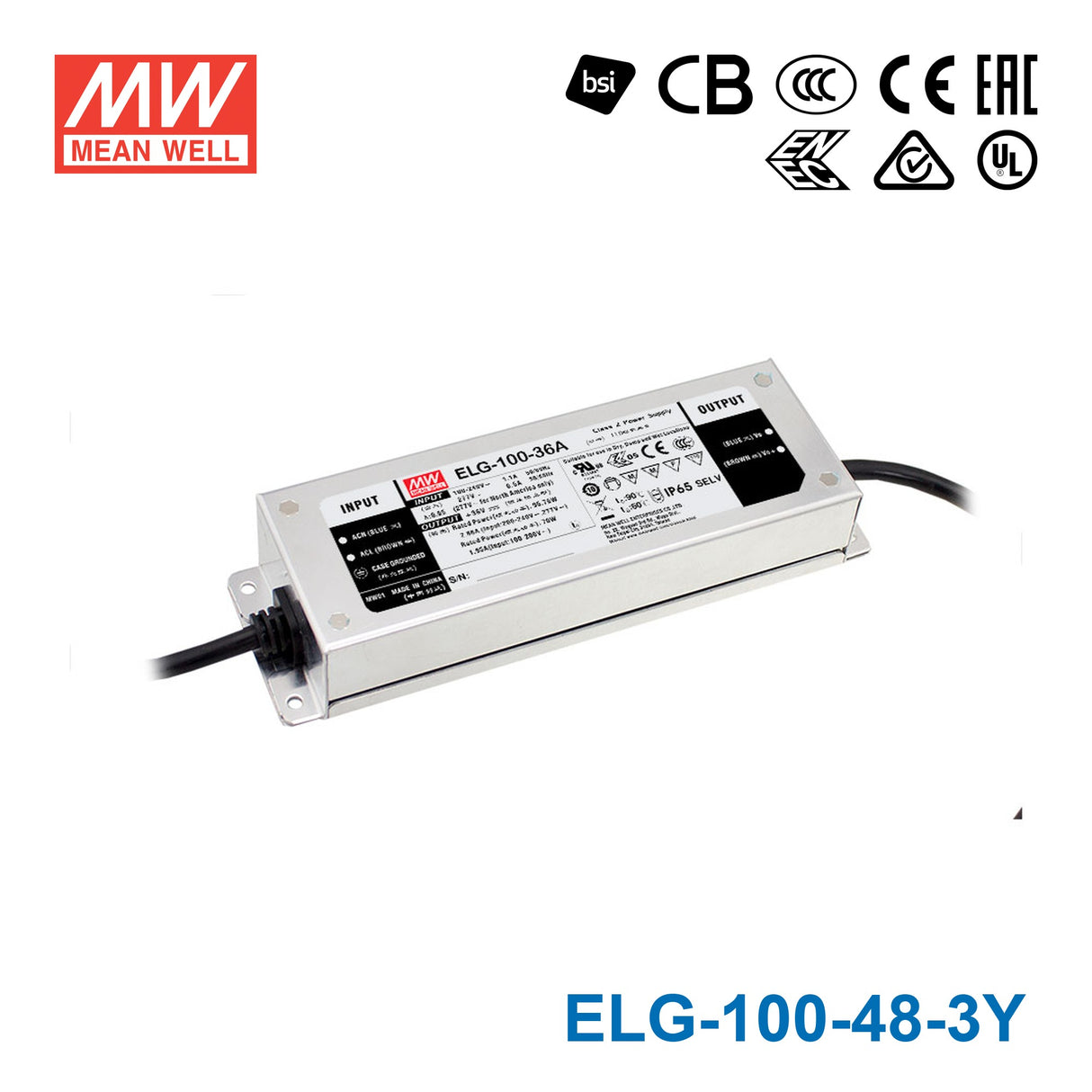

Mean Well ELG-100-48 Power Supply 96W 48V 3-wire Input 2A
The ELG-100-48-3Y is a 96W Mean Well AC-DC LED driver (input: 100~305VAC, output: 48V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 48V
- ✓ Rated output current: 2A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96 Watt
-
Output Voltage48 Volt
-
Rated Current2 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
What does the ‘-3Y’ suffix mean for the ELG-100-48-3Y, and does it change how I use it?
The ‘-3Y’ designation indicates a 3-conductor mains input configuration (line, neutral, and earth), compared to the standard 2-wire input on the base ELG-100-48. The electrical output—96W, 48V, 2A—is identical. This variant is selected when a 3-conductor earthed supply connection is required by local wiring codes or installation practice.
Is the ELG-100-48-3Y suitable for outdoor LED strip lighting exposed to rain?
Yes. The ELG-100-48-3Y carries an IP67 waterproof rating, providing full dust sealing and protection against water immersion up to 1 metre for 30 minutes. It is appropriate for outdoor LED strip installations on building exteriors, under-canopy runs, and landscape lighting circuits.
How much 48V LED strip can the ELG-100-48-3Y power?
The driver delivers a maximum of 96W at 48V. For 48V strip rated at 10W per meter, you can run approximately 9.6 meters per driver. For denser 14.4W-per-meter strip, the maximum run is roughly 6.6 meters. Always verify your strip’s rated power per meter and add a safety margin.
Can the ELG-100-48-3Y be used for 48V LED facade or wash lighting on a commercial building?
Yes. The 96W / 48V output and IP67 sealing make the ELG-100-48-3Y practical for 48V LED wall-wash or facade luminaires on commercial buildings. The 3-conductor input suits installations where a dedicated earth connection is required at the driver.
Does the ELG-100-48-3Y operate over the full international mains voltage range?
Yes. It accepts 100–305VAC, covering 120V, 230V, and 277V supplies without any hardware changes. The 3-conductor input design adds an earth terminal while maintaining the same universal voltage range.
