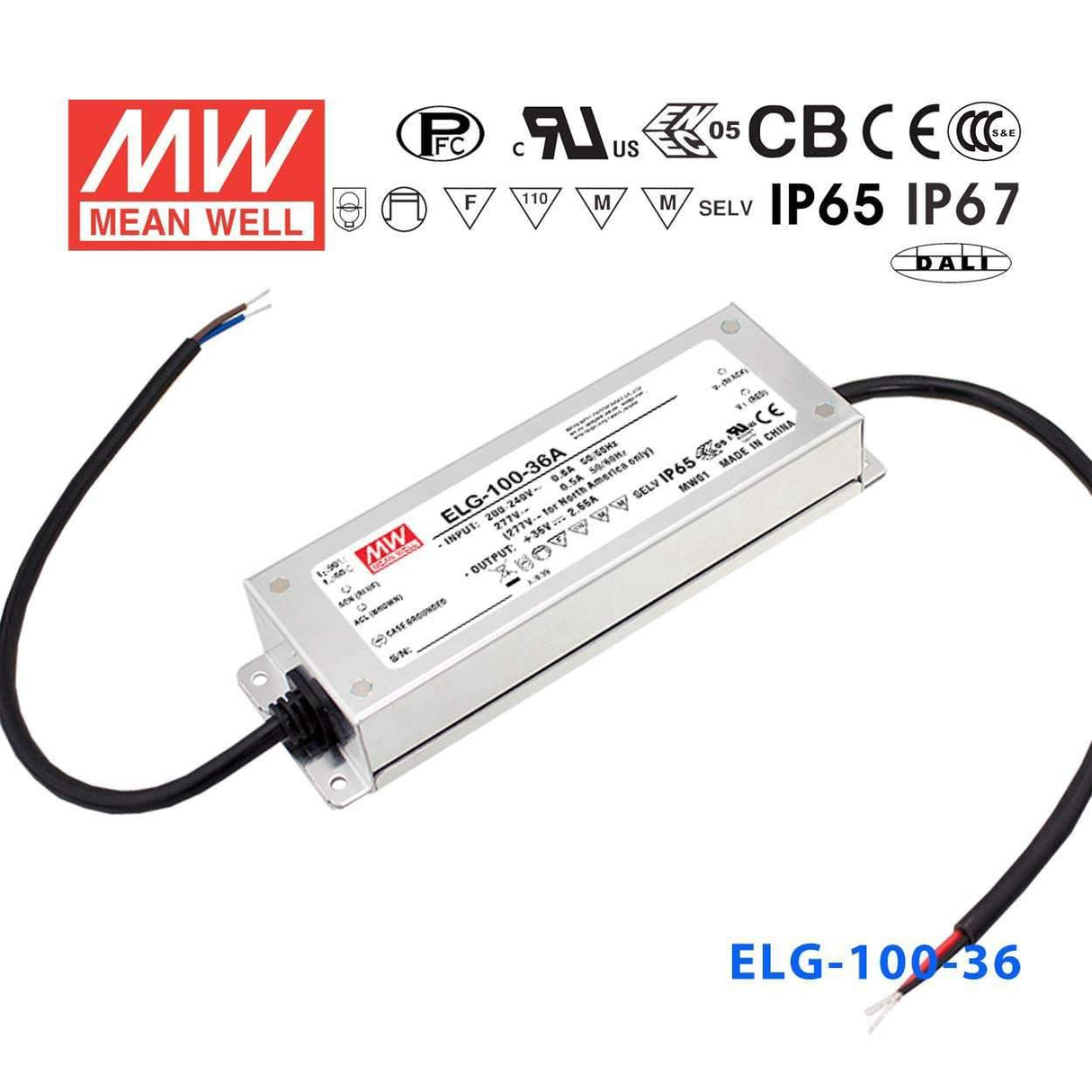

Mean Well ELG-100-36 Power Supply 95.76W 36V
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating95.76 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-36 to drive 36V LED strip lighting in outdoor installations?
Yes. The ELG-100-36 outputs 36V at up to 2.66A (95.76W) and carries an IP67 waterproof rating, making it suitable for outdoor 36V LED strip runs exposed to rain or moisture. Its metal case and -40°C to +90°C operating range support demanding outdoor conditions.
Is the ELG-100-36 a good fit for powering 36V LED linear or tube fixtures?
Yes. The ELG-100-36 operates in constant-current mode with a CC voltage range of 18-36V, making it compatible with 36V LED linear modules or tube fixtures that require stable current drive. At 95.76W it can handle mid-size fixture arrays or longer linear runs.
Can the ELG-100-36 power outdoor LED landscape lighting running at 36V?
Yes. Its IP67 waterproof rating and wide 100-305VAC input make it well suited for outdoor landscape lighting installations where the driver may be mounted in a ground-level enclosure or exposed to irrigation spray. The -40°C to +90°C operating temperature also accommodates both hot and cold climates.
How many meters of 36V LED strip can the ELG-100-36 support?
The ELG-100-36 delivers up to 95.76W. Divide 95.76 by your strip's rated power per meter to find the maximum run length. For a 36V strip rated at 10W/m, that is approximately 9.5 meters (95.76W / 10W per meter). Always check your strip's rated power per meter and keep total load at or below 95.76W.
Can the ELG-100-36 be installed in a wet-location enclosure or direct rain exposure?
Yes. The IP67 rating means the unit withstands temporary water immersion up to 1 meter, so it can be mounted in outdoor enclosures, wet-location junction boxes, or areas with direct rain exposure without additional weatherproofing.
What is the difference between the ELG-100-36 and the ELG-100-36A, 36AB, and 36B?
All four share the same 95.76W / 36V / 2.66A output. The base ELG-100-36 has no adjustment or dimming and is IP67 rated. The -36A adds output voltage and current adjustment via potentiometer and is IP65. The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B adds dimming only and retains the IP67 waterproof rating.
