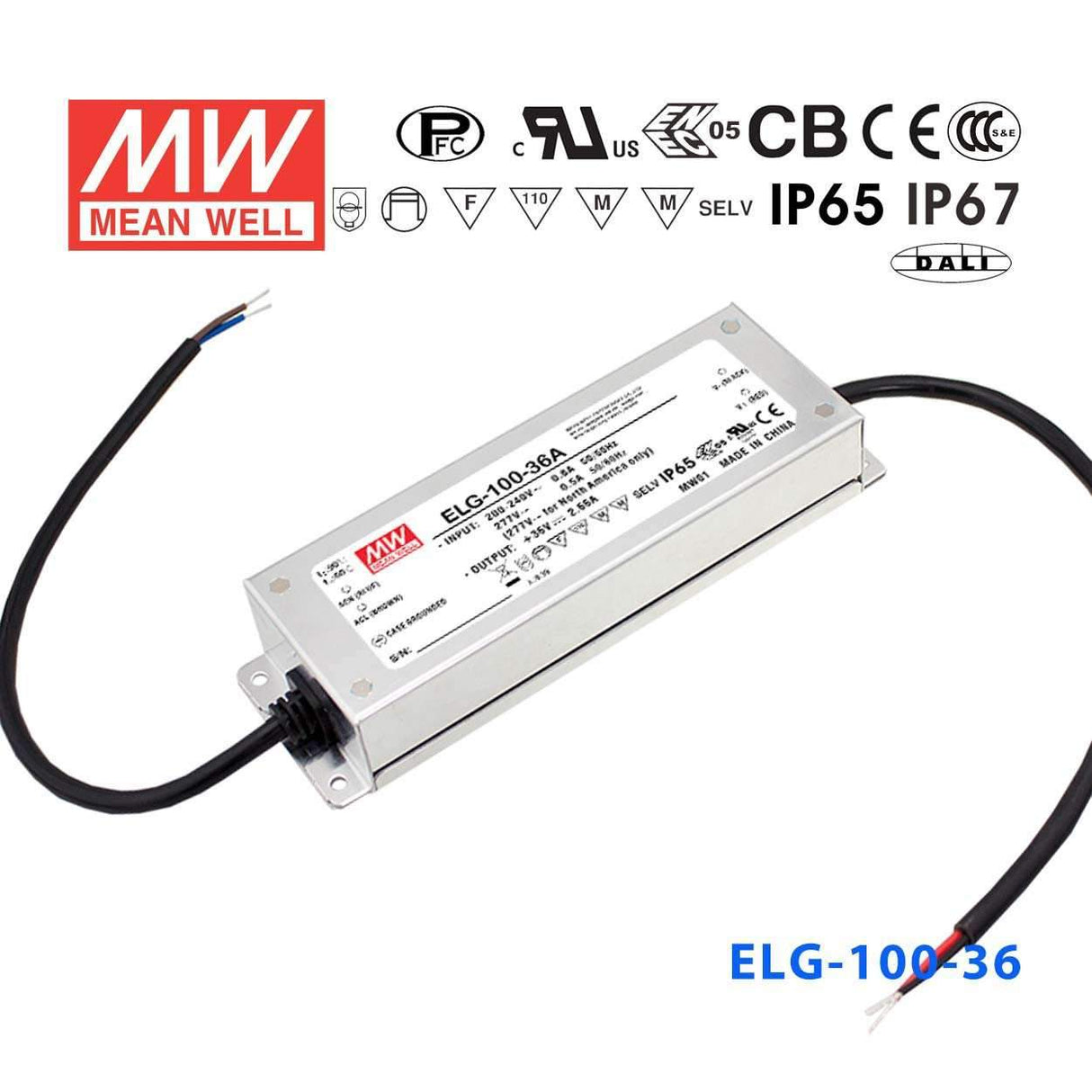

Mean Well ELG-100-36A Power Supply 95.76W 36V - Adjustable
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating95.76 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-36A to power 36V LED strip lighting where I need to trim the output level?
Yes. The ELG-100-36A includes a built-in potentiometer for adjusting output voltage and current, which is useful when you need to fine-tune the drive level for specific 36V LED strips or reduce brightness to a fixed lower setting. It delivers 95.76W at up to 36V and 2.66A.
Is the ELG-100-36A suitable for 36V LED architectural cove or downlight installations indoors?
Yes. With 95.76W at 36V and adjustable output, it works well for interior architectural LED applications where brightness needs to be set at installation time. Its IP65 rating provides adequate protection against dust and splashing water in most indoor commercial or residential settings.
Can the ELG-100-36A drive 36V LED modules for retail or hospitality lighting?
Yes. The adjustable output allows the installer to match the driver precisely to the load, which is valuable in retail or hospitality projects with specific lux or CCT requirements. The ELG-100-36A operates across 100-305VAC, accommodating the varied mains supplies found in international commercial deployments.
How many meters of 36V LED strip can the ELG-100-36A power?
The ELG-100-36A delivers up to 95.76W. Divide 95.76 by your strip's rated watts per meter for the maximum run length. A strip consuming 8W/m allows approximately 11.9 meters (95.76W / 8W per meter). Always confirm your strip's rated power per meter and keep the total load within 95.76W.
Is the ELG-100-36A suitable for damp or outdoor covered locations?
The ELG-100-36A carries an IP65 water-resistant rating, which protects against low-pressure water jets and complete dust ingress. It is appropriate for covered outdoor areas such as soffits, canopies, or parking garages. For locations with direct rain or potential submersion, the IP67-rated ELG-100-36 or ELG-100-36B would be more suitable.
