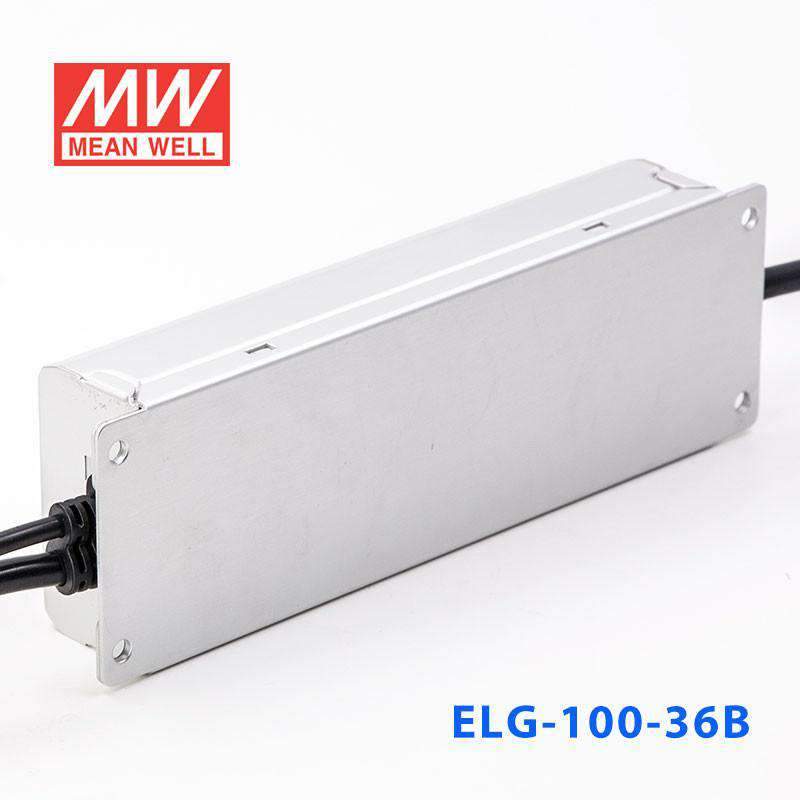

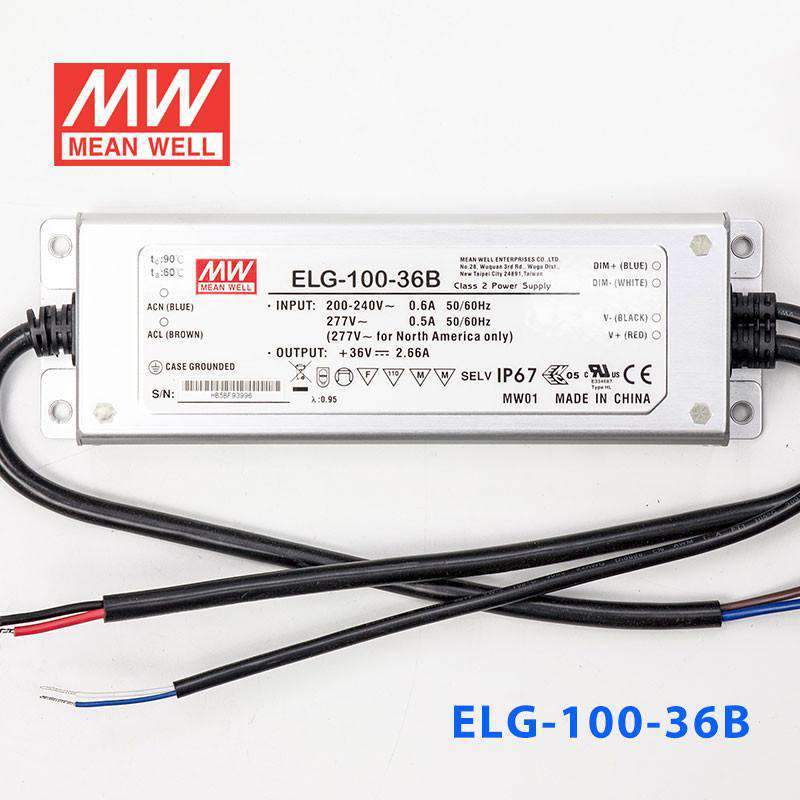

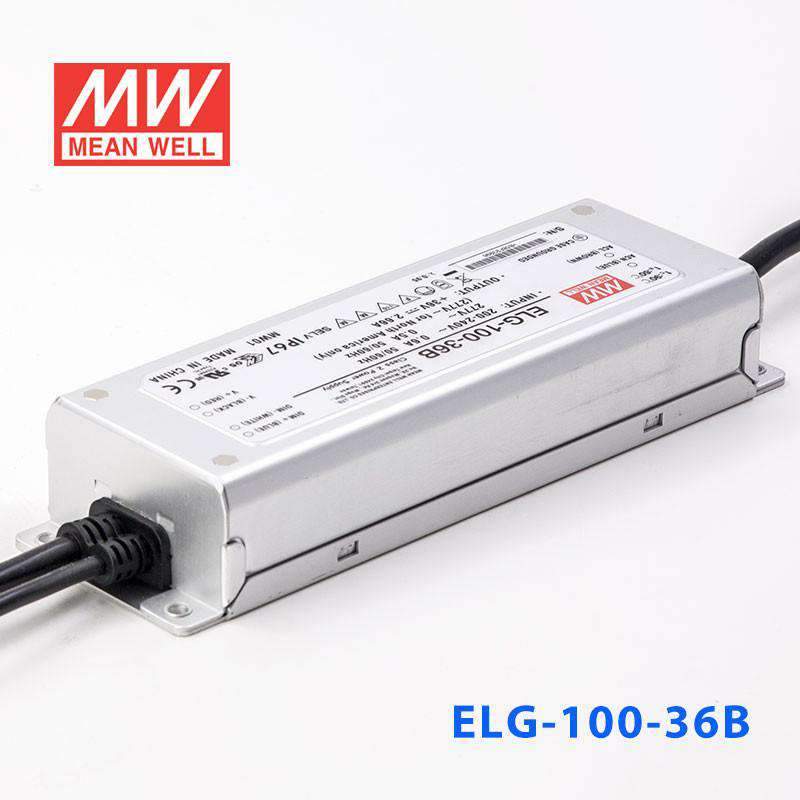

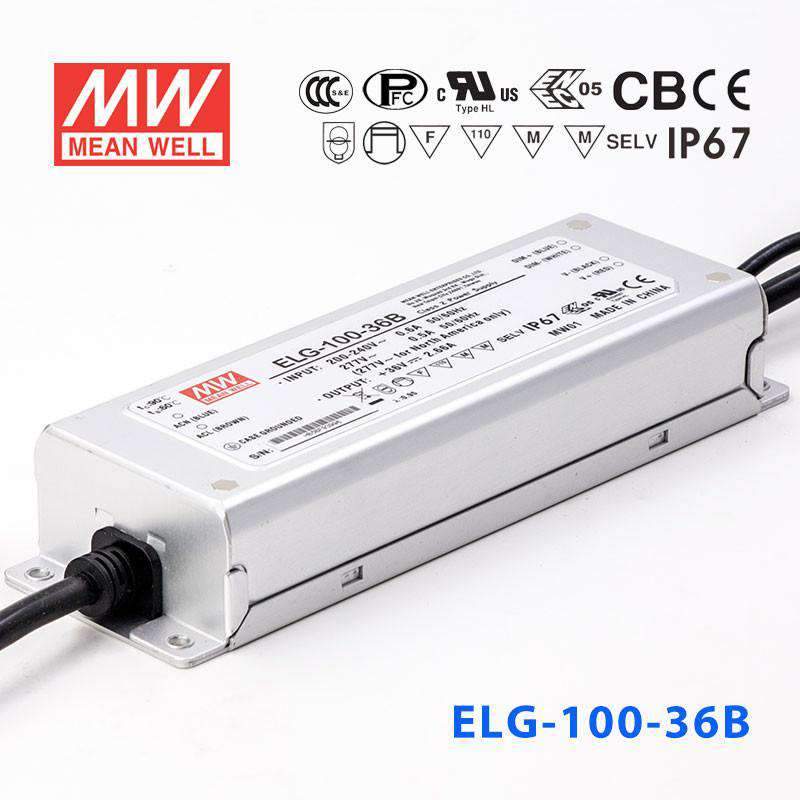

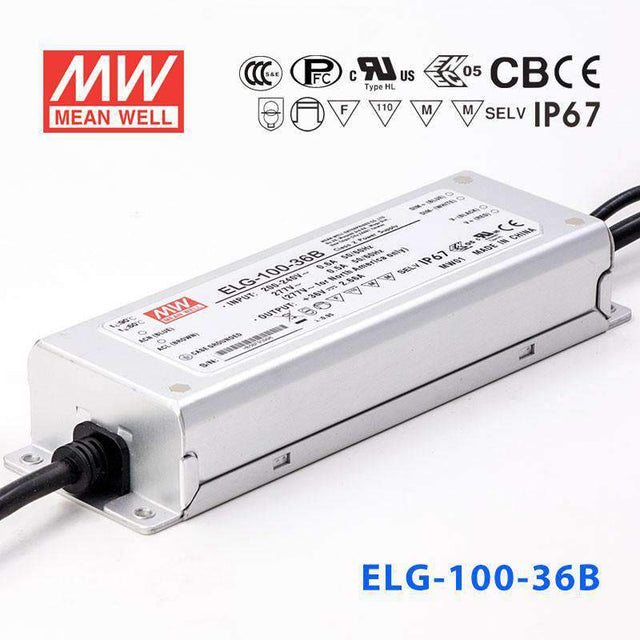

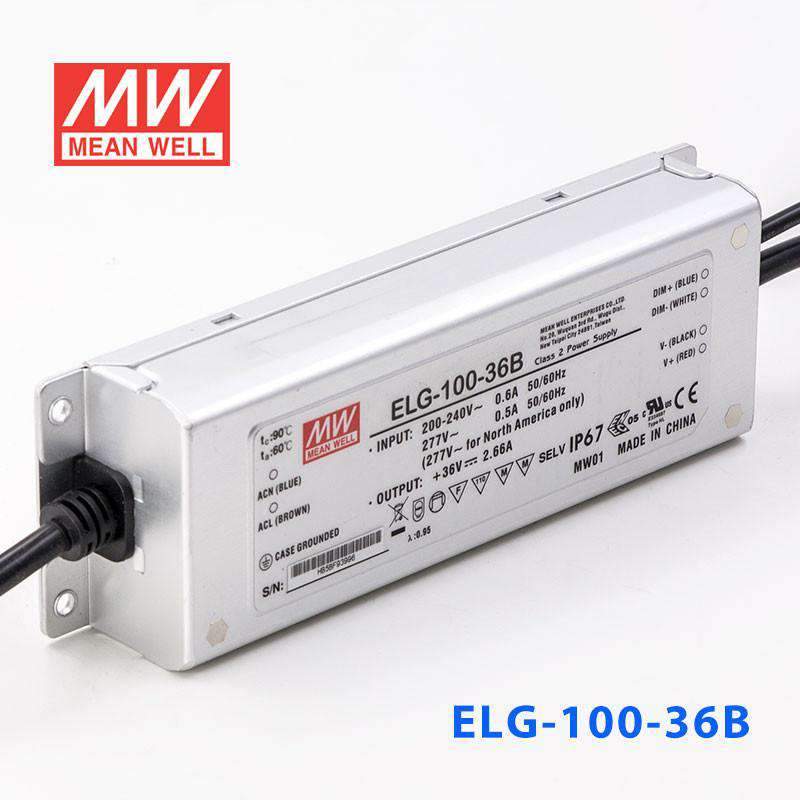

Mean Well ELG-100-36B Power Supply 95.76W 36V - Dimmable
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating95.76 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-36B with a PWM or 1-10V dimmer for outdoor 36V LED lighting?
Yes. The ELG-100-36B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating, so it can be installed outdoors and controlled by a standard 1-10V or PWM dimmer. At 95.76W and 36V it suits outdoor LED strip or fixture installations that also need adjustable brightness.
Is the ELG-100-36B suitable for powering dimmable 36V LED strip in outdoor architectural lighting?
Yes. Its combination of IP67 weatherproofing and 1-10V/PWM dimming makes it well suited for outdoor architectural applications such as facade uplighting, pergola strips, or pathway lighting where both weather resistance and brightness control are required.
Can the ELG-100-36B drive 36V LED modules for an outdoor illuminated sign with dim-to-low capability?
Yes. With 95.76W at 36V, IP67 waterproofing, and built-in dimming input, it can power outdoor 36V LED sign modules and allow the sign brightness to be reduced at night via an external 1-10V or PWM controller. The wide 100-305VAC input handles varied mains supplies.
How many meters of 36V LED strip can the ELG-100-36B supply?
The ELG-100-36B outputs up to 95.76W. Divide 95.76 by your strip's rated power per meter for the maximum length. A 36V strip at 9W/m, for example, allows about 10.6 meters (95.76W / 9W per meter). Always verify your strip's rated power per meter and keep total load within 95.76W.
Can the ELG-100-36B be installed in a fully exposed outdoor location subject to rain?
Yes. The IP67 rating means the unit is protected against temporary water immersion up to 1 meter for 30 minutes, so direct rain exposure is not an issue. It can be mounted in outdoor enclosures or wet-location boxes, and its metal case and -40°C to +90°C operating range handle harsh outdoor conditions.
