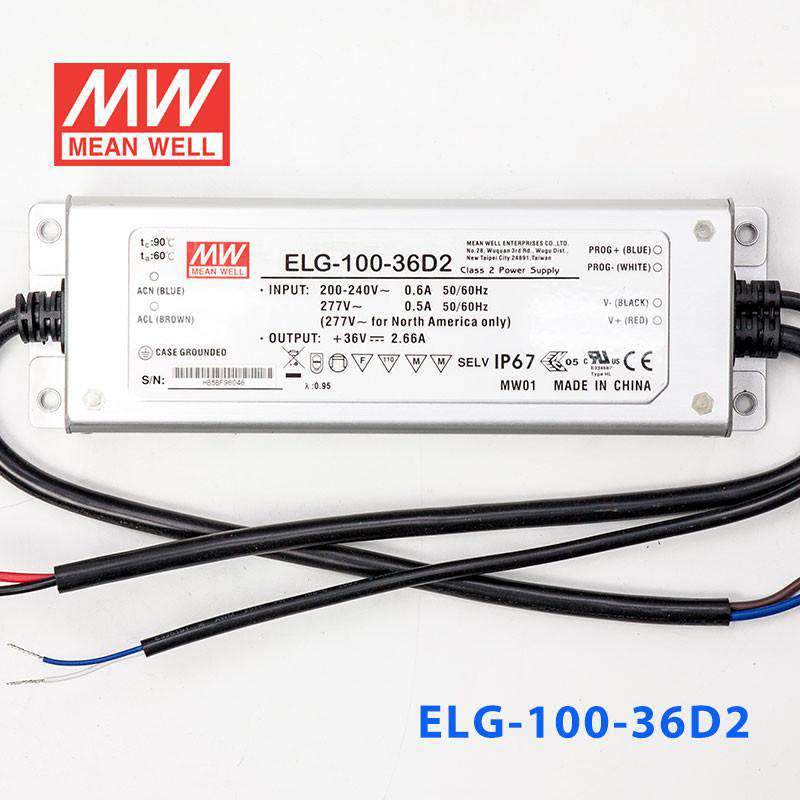

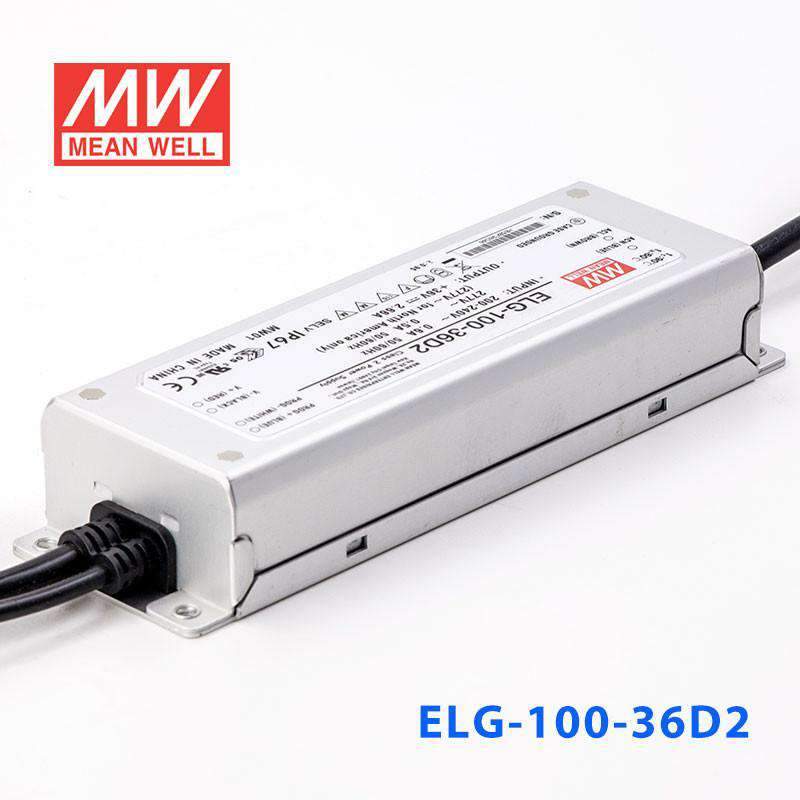

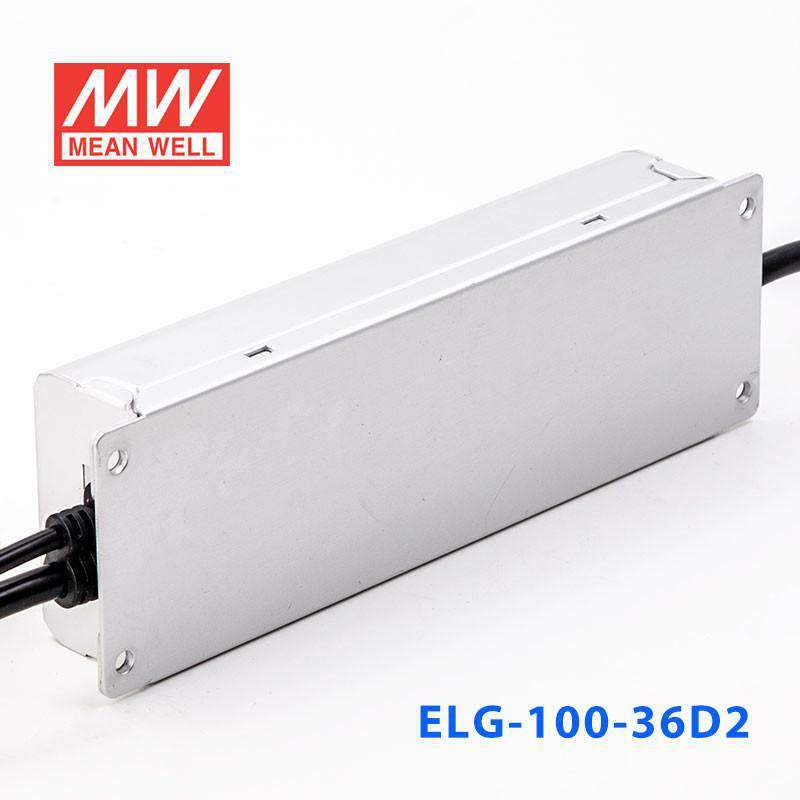

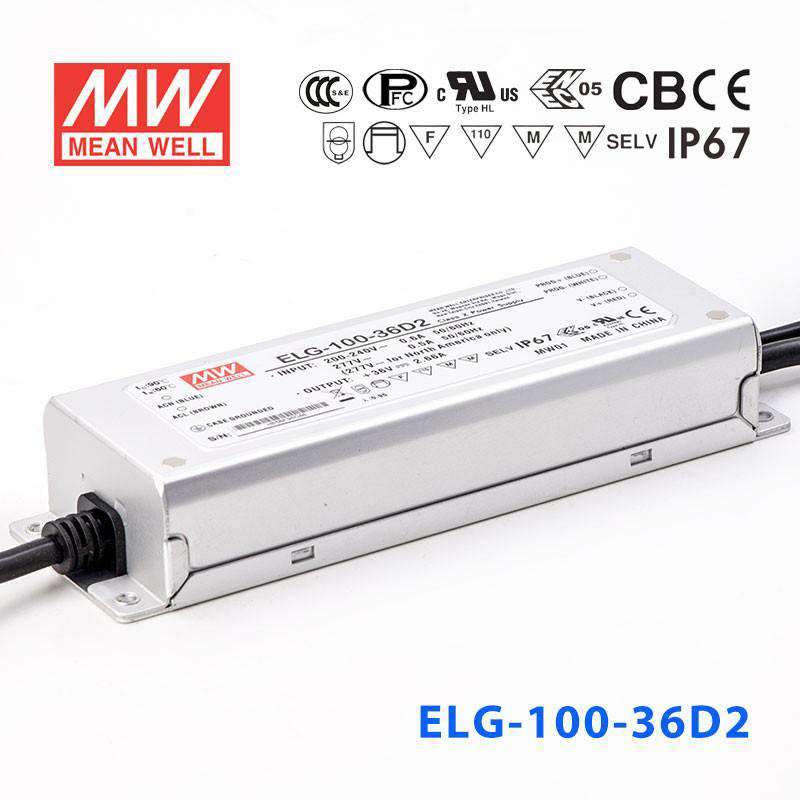

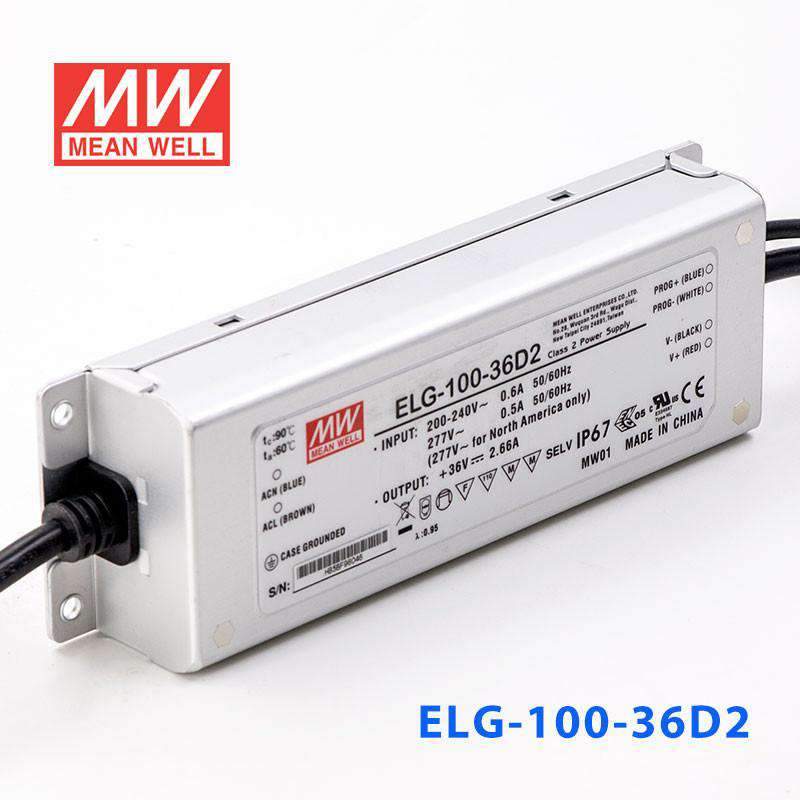

Mean Well ELG-100-36D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage36 Volt
-
Rated Current2.66 Ampere
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-36D2 for 36V LED strip installations that need digital dimming?
Yes. The D2 designation on the ELG-100-36D2 indicates it supports digital dimming (via a DALI2 or similar protocol), allowing integration with modern digital lighting control systems. It delivers 100W at 36V and 2.66A and is IP67 rated for outdoor installations.
Is the ELG-100-36D2 suitable for outdoor 36V LED architectural or landscape lighting?
Yes. With an IP67 waterproof rating and 100W at 36V output, the ELG-100-36D2 can power outdoor 36V LED landscape fixtures, facade uplights, or strip runs exposed to rain. Its -40°C to +90°C operating range accommodates climate extremes.
Can the ELG-100-36D2 drive 36V LED modules for illuminated outdoor signage with digital control?
Yes. At 100W and 36V with digital dimming capability, it can power outdoor 36V sign modules while allowing centralized digital control of sign brightness. The IP67 rating keeps the driver protected from weather in sign cabinet installations.
How many meters of 36V LED strip can the ELG-100-36D2 support?
The ELG-100-36D2 provides up to 100W at 36V. Divide 100 by your strip's rated power per meter to calculate the maximum run. For a 36V strip at 10W/m, that is up to 10 meters (100W / 10W per meter). Always check your strip's rated power per meter and keep the total load at or below 100W.
Can the ELG-100-36D2 be mounted outdoors or in a wet-location enclosure?
Yes. Its IP67 waterproof rating provides protection against temporary water immersion up to 1 meter, making it suitable for outdoor mounting, wet-location enclosures, or installations subject to rain and humidity. The metal case provides additional mechanical durability.
What certifications does the ELG-100-36D2 carry for international deployments?
The ELG-100-36D2 holds BSMI, CB, CE, EAC, and UL certifications, covering Taiwan, international safety (CB scheme), Europe, Russia/CIS, and North America. This set is useful for projects requiring multi-market compliance without separate regional driver SKUs.
