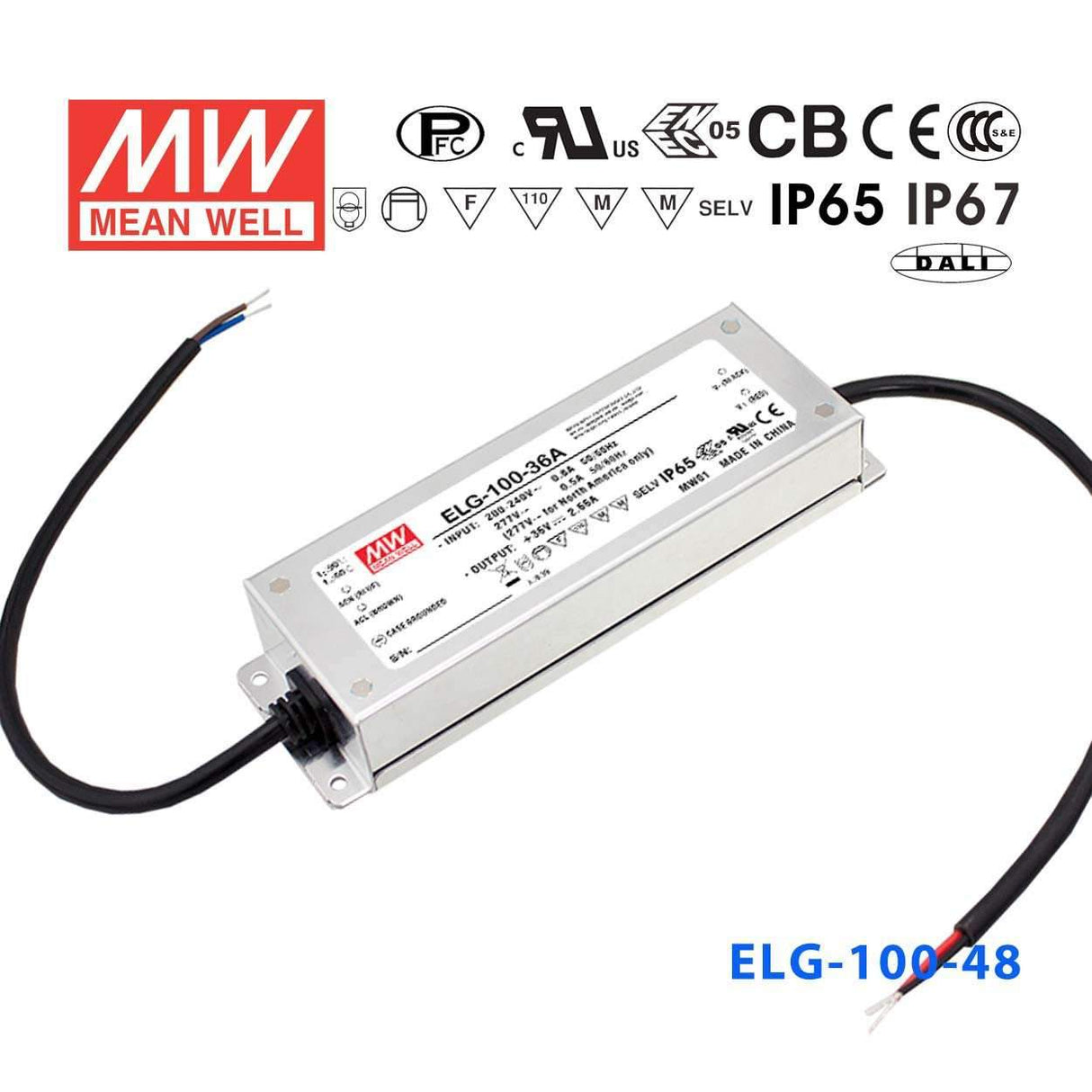

Mean Well ELG-100-48 Power Supply 96W 48V
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96 Watt
-
Output Voltage48 Volt
-
Rated Current2 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-48 power 48V LED strips for an outdoor architectural lighting project?
Yes. The ELG-100-48 provides 96W at 48V DC and carries an IP67 waterproof rating, making it suitable for outdoor architectural LED strip installations. For strip rated at 10W per meter, the driver supports approximately 9.6 meters per circuit—always check your strip’s rated power per meter and apply a derating margin.
Is the ELG-100-48 waterproof enough for outdoor signage and landscape LED fixtures?
Yes. With an IP67 rating, the ELG-100-48 is fully sealed against dust and can withstand water immersion up to 1 metre for 30 minutes. It is appropriate for outdoor LED channel-letter signs, landscape ground fixtures, and building facade luminaires exposed to direct weather.
How many meters of 48V LED strip can the ELG-100-48 drive?
At 96W maximum output, the ELG-100-48 can supply roughly 9.6 meters of 48V strip rated at 10W per meter. For higher-density strip at 14.4W per meter, that reduces to approximately 6.6 meters. Verify your strip’s rated wattage per meter before sizing the run.
Can I use the ELG-100-48 to supply a 48V LED linear fixture inside a commercial cooler or cold-storage unit?
Yes. The -40°C to +90°C operating temperature range covers cold-storage environments, and the IP67 rating protects against condensation and cleaning sprays common in food service settings. The 96W output is appropriate for medium-length 48V linear fixtures.
Does the ELG-100-48 work in countries with 230V mains as well as 120V?
Yes. The universal 100–305VAC input means the ELG-100-48 operates on 120V North American supplies, 230V European supplies, and 277V commercial circuits without any wiring changes.
Can the ELG-100-48 be used in a waterproof enclosure for an outdoor LED flood or wash fixture?
Yes. Its IP67 rating allows direct outdoor mounting in junction boxes or built into luminaire housings without requiring an additional weatherproof enclosure. The metal case assists with heat dissipation over the -40°C to +90°C operating range.
