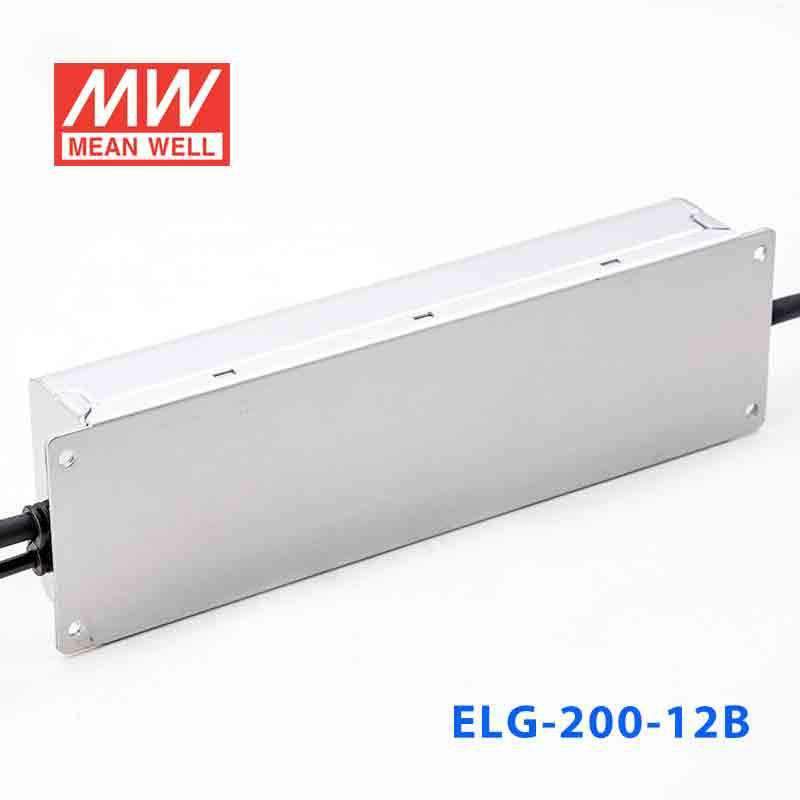

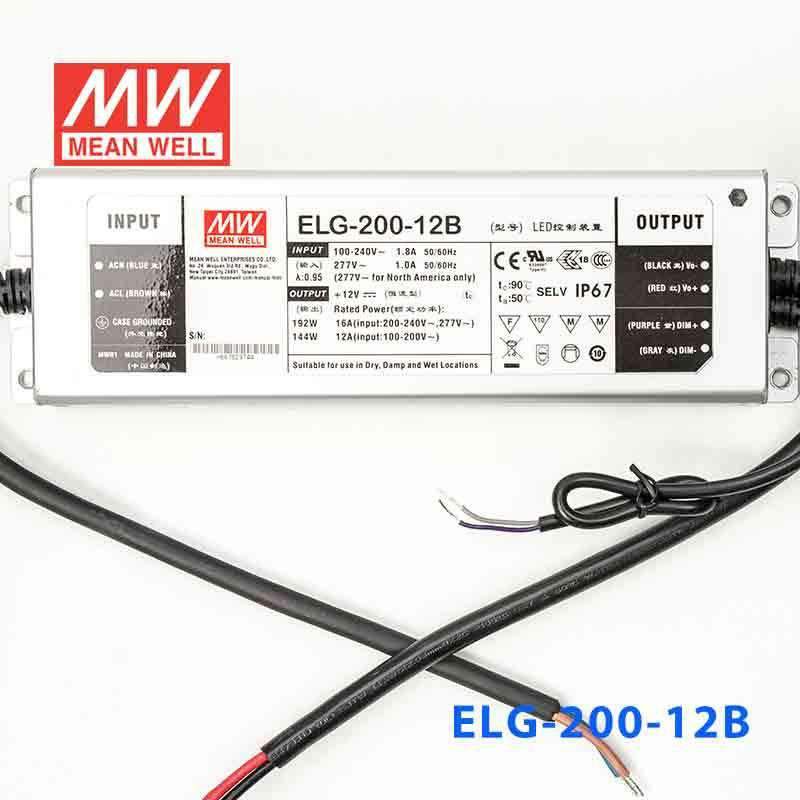

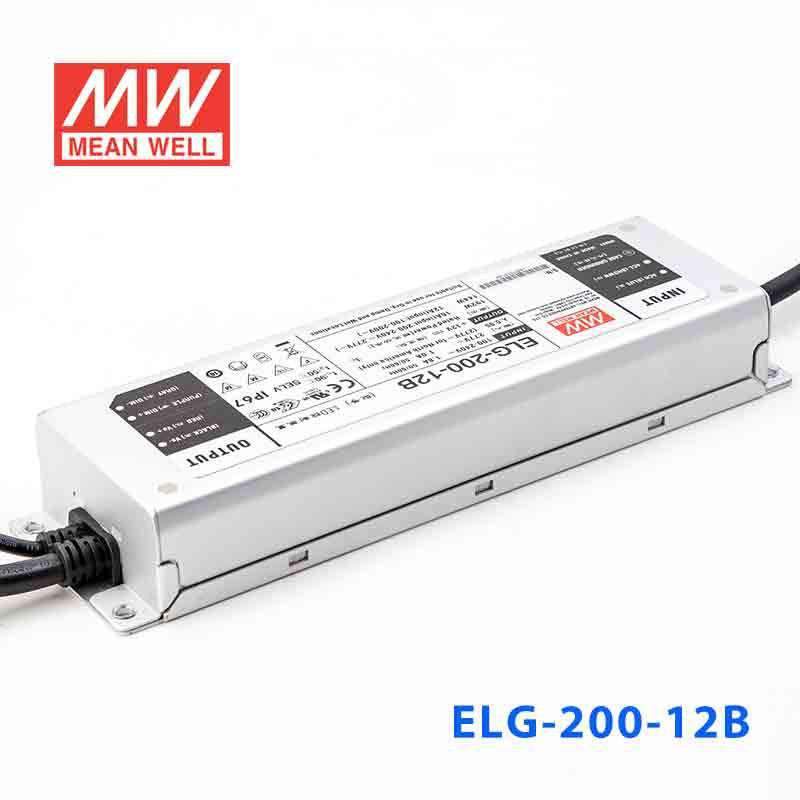

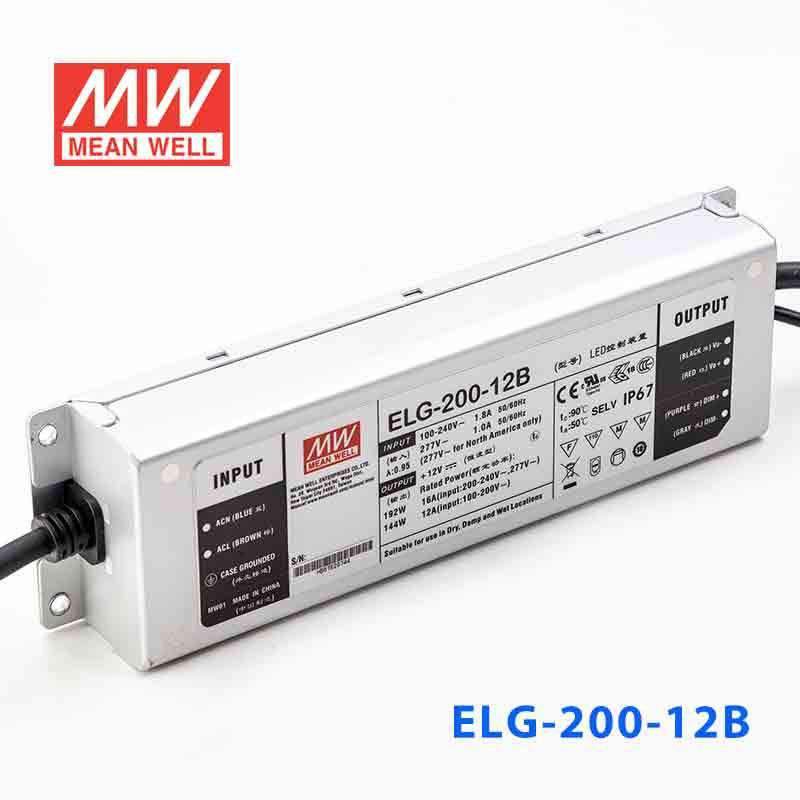

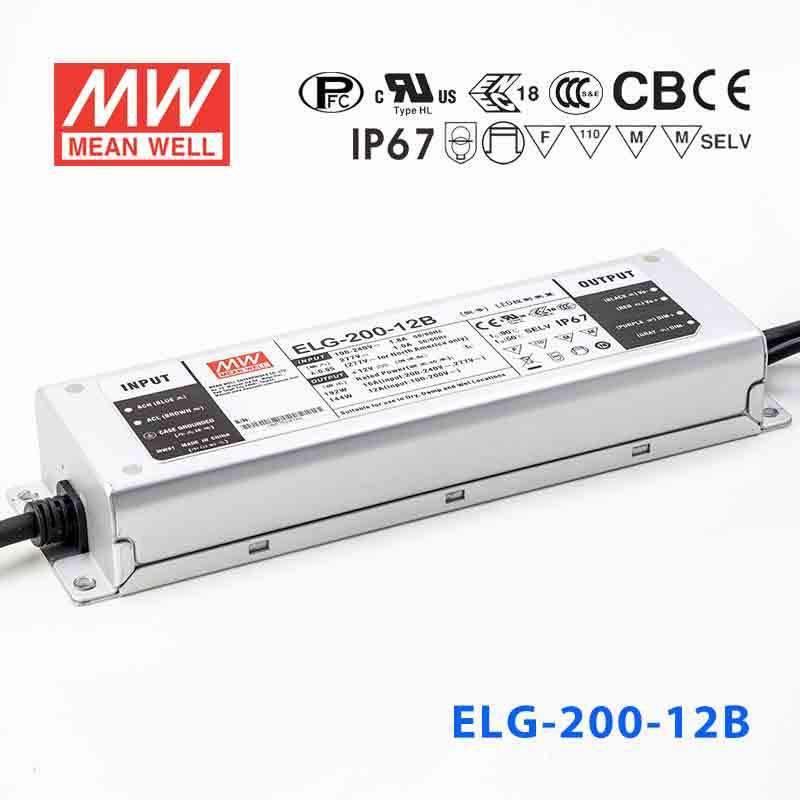

Mean Well ELG-200-12B Power Supply 192W 12V - Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
What dimming methods does the ELG-200-12B support?
The ELG-200-12B includes a built-in 3-in-1 dimming interface that accepts 0–10V analog, PWM, and resistance dimming signals. This allows the driver to integrate with a wide range of external dimming controllers and building-automation systems.
Can the ELG-200-12B be used in wet or outdoor environments?
Yes. The ELG-200-12B carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and temporary submersion in water. This makes it well suited for outdoor LED lighting, wet-location signage, and installations where the driver may be exposed to rain or water spray.
How much 12V LED strip lighting can the ELG-200-12B power?
The ELG-200-12B outputs 12V at up to 16A, providing 192W of capacity. Dividing 192W by your strip's rated watts per meter gives the maximum run length — for example, a 12W/m strip allows approximately 16 meters. Check your strip's rated power per meter and allow a safety margin.
Can the ELG-200-12B power 12V LED strips in an outdoor landscape lighting installation with dimming?
Yes. The ELG-200-12B combines IP67 waterproofing with 3-in-1 dimming support, making it well suited for outdoor landscape LED strip installations controlled by an external dimmer. Its 192W output can drive significant strip lengths and its -40°C to +90°C rating covers year-round outdoor operation.
Is the ELG-200-12B suitable for a stage or event lighting rig using 12V LED fixtures?
Yes. The ELG-200-12B's 0–10V and PWM dimming inputs allow it to respond to standard lighting-console control signals used in stage and event applications. At 192W / 12V / 16A it can drive multiple 12V LED fixtures simultaneously, and its IP67 rating is a practical advantage in variable venue environments.
How does the ELG-200-12B compare to the ELG-200-12A in terms of control features?
The ELG-200-12B (IP67) provides a 3-in-1 dimming interface (0–10V, PWM, resistance) but does not have the output-adjustment potentiometer found on the ELG-200-12A (IP65). The ELG-200-12A allows static fine-tuning of voltage and current at commissioning; the ELG-200-12B allows dynamic dimming during operation. Both output 192W at 12V / 16A.
Does the ELG-200-12B operate across all standard global mains voltages?
Yes. The ELG-200-12B accepts 100–305VAC input, covering 120V (North America), 230V (Europe), 277V (US commercial), and other standard grid voltages worldwide without any manual reconfiguration.
