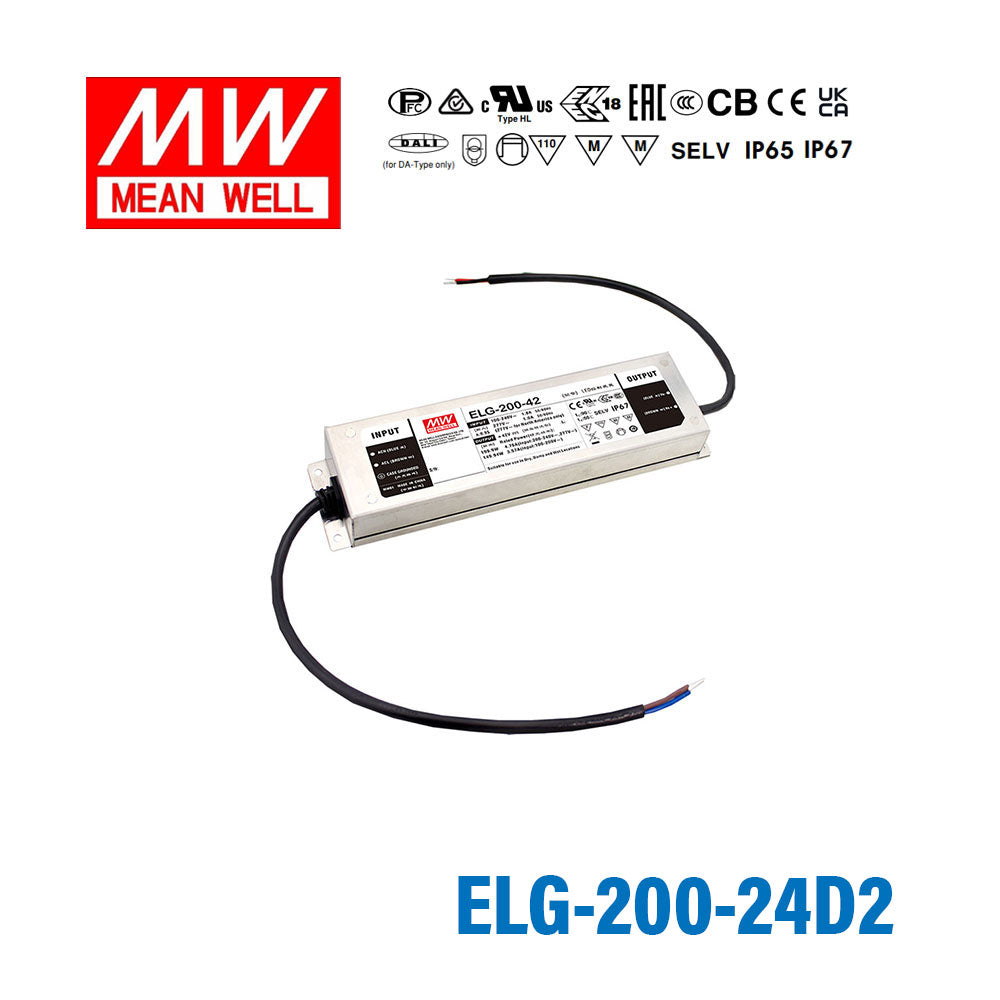

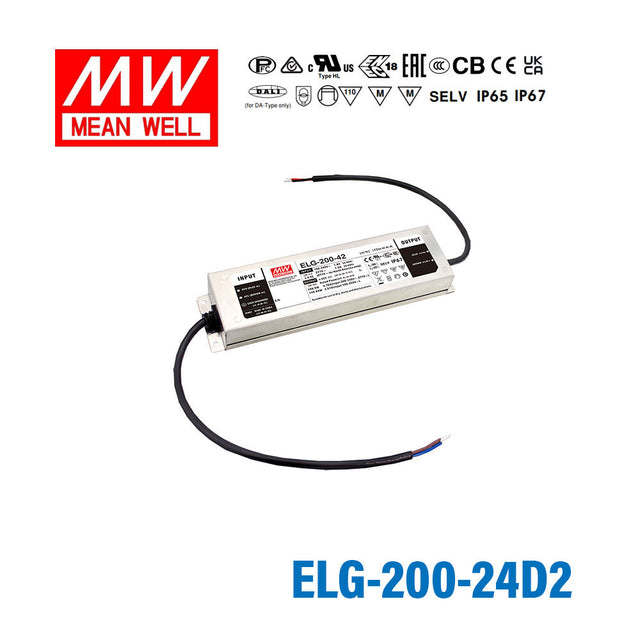

Mean Well ELG-200-24D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-24D2 be integrated with a 0–10V dimming control system for 24V LED lighting?
Yes. The 'D2' suffix on the ELG-200-24D2 indicates it accepts 0–10V analog dimming as well as PWM dimming signals, making it compatible with standard 0–10V controllers used in commercial building lighting control systems for 24V LED drivers.
How many meters of 24V LED strip can the ELG-200-24D2 power?
The ELG-200-24D2 provides 200W at 24V. For a 14.4 W/m strip, that is approximately 13.9 meters; for a 9.6 W/m strip, roughly 20.8 meters. Always verify the rated wattage per meter for your specific strip before determining run length.
Is the ELG-200-24D2 appropriate for wet or outdoor installations?
The ELG-200-24D2 carries an IP67 rating, meaning it is dust-tight and can withstand temporary water immersion to 1 meter. This makes it suitable for outdoor LED installations in exposed locations, including exterior facade strips and outdoor signage.
Can the ELG-200-24D2 be used in office or hospitality LED lighting projects requiring smooth dimming?
Yes. The 0–10V dimming capability of the ELG-200-24D2 enables smooth brightness control compatible with most commercial building management systems and lighting controllers used in offices, hotels, and hospitality venues, driving 24V LED strips or panels.
How does the ELG-200-24D2 differ from the ELG-200-24DA for smart building applications?
Both are 200W, 24V, 8.4A drivers with IP67 waterproof construction. The ELG-200-24D2 uses 0–10V analog or PWM dimming, which works with common dimming controllers, while the ELG-200-24DA uses DALI protocol — the industry standard for addressable, networked smart lighting. Choose D2 for analog-controlled systems and DA for DALI-based building automation networks.
Can the ELG-200-24D2 handle the temperature extremes of an unheated outdoor equipment cabinet?
Yes. Its operating temperature range of -40°C to +90°C allows reliable operation in unheated outdoor cabinets in cold climates, as well as in warm enclosures in hot regions, making it a flexible choice for year-round outdoor deployments.
