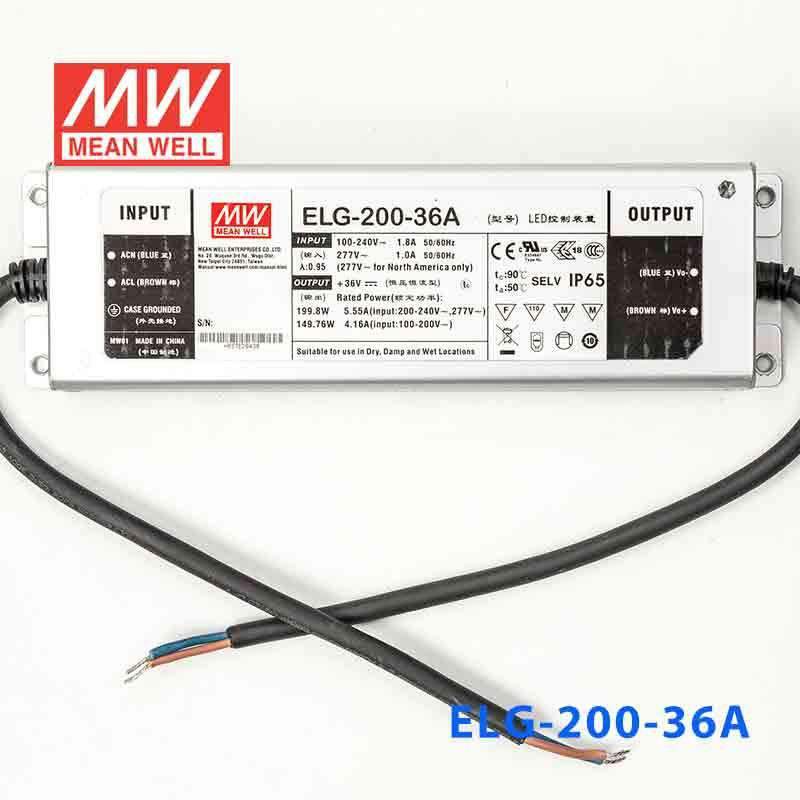

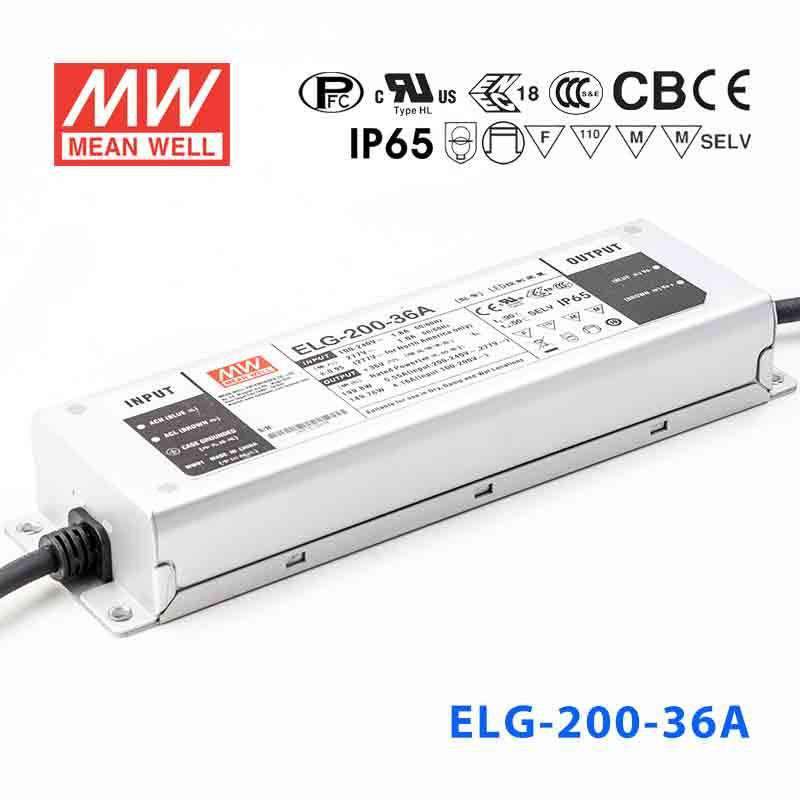

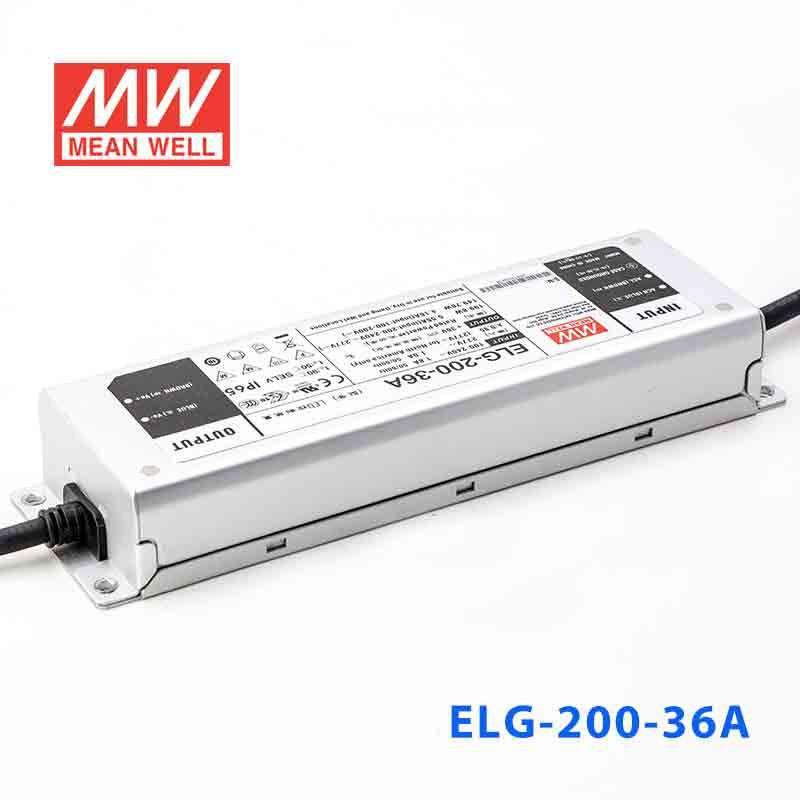

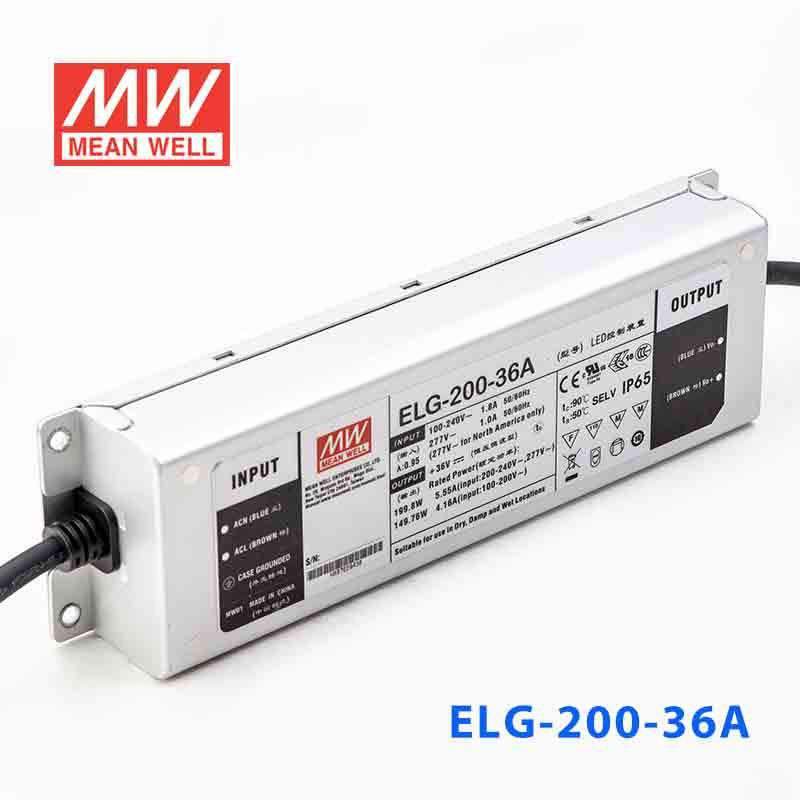

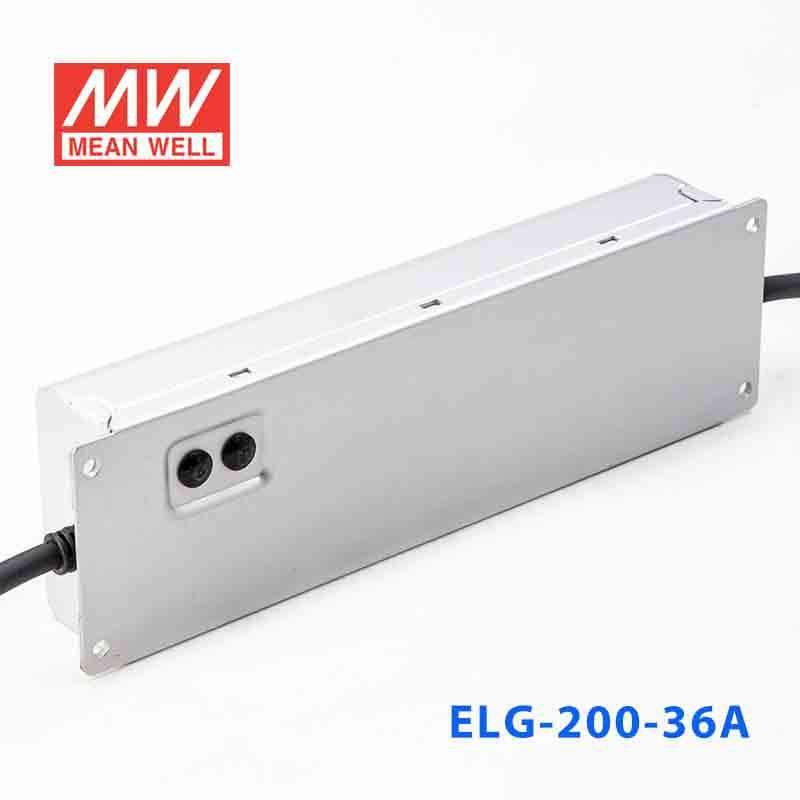

Mean Well ELG-200-36A Power Supply 200W 36V - Adjustable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.8 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Is the ELG-200-36A appropriate for an outdoor LED lighting installation under a covered patio or canopy?
Yes. The ELG-200-36A is rated IP65, protecting against low-pressure water jets and dust ingress. It is well suited for covered outdoor locations such as canopy soffits, covered parking structures, or sheltered sign cabinets where direct rain impact is unlikely but humidity and splashing are present.
Can the ELG-200-36A be used to fine-tune brightness in a 36V commercial LED strip installation?
Yes. The A suffix indicates this driver has an adjustable output current, allowing the output to be trimmed via a potentiometer on the unit. This is useful in retail or hospitality lighting where the designer needs to match illuminance levels across a space without adding separate dimmer controllers.
How much 36V LED strip can the ELG-200-36A drive?
The driver outputs 199.8W at 5.55A. For a 36V strip rated at 18 W/m, you can run approximately 11.1 m per driver (199.8 W ÷ 18 W/m). For a higher-density 25 W/m strip, that is approximately 8 m. Always check the strip's rated wattage per meter and leave a 10–20% safety margin.
Can the ELG-200-36A power under-shelf LED strip lighting in a commercial kitchen?
Yes. The IP65 rating provides adequate protection against steam, grease splatter, and cleaning moisture typical of commercial kitchen environments. Its operating temperature range of -40°C to +90°C covers the heat produced near cooking equipment, and the metal case meets durability requirements in commercial food service settings.
Is the ELG-200-36A suitable for powering 36V LED strip in architectural cove lighting projects?
Yes. The adjustable output allows current to be set to the precise level needed for the cove design, and the 199.8W capacity supports generous strip lengths in single continuous runs. It accepts 100–305VAC input, making it compatible with international project specifications.
What is the difference between the ELG-200-36 and ELG-200-36A?
Both deliver 199.8W at 36V DC with 5.55A output and share the same physical dimensions. The key difference is IP rating and adjustability: the ELG-200-36 is IP67 (waterproof, suitable for direct rain exposure), while the ELG-200-36A is IP65 (water-resistant, suitable for covered outdoor or indoor-wet locations) and includes an adjustable output trim. Choose IP67 for fully exposed outdoor use; choose the A variant when current adjustability is required in a protected location.
